Product Description:

  Racks, Tripp-Lite, SmartPro 120V 1.5kVA 1.35kW Line-Interactive Sine Wave UPS, 2U Rack/Tower, WEBCARDLX Network Interface, LCD, USB, 8 Outlets

Tripp-Lite Parts Accessory Model Overview

Products and parts from Tripp-Lite.
Tripp-Lite SMART1500RM2UN Rack Overview

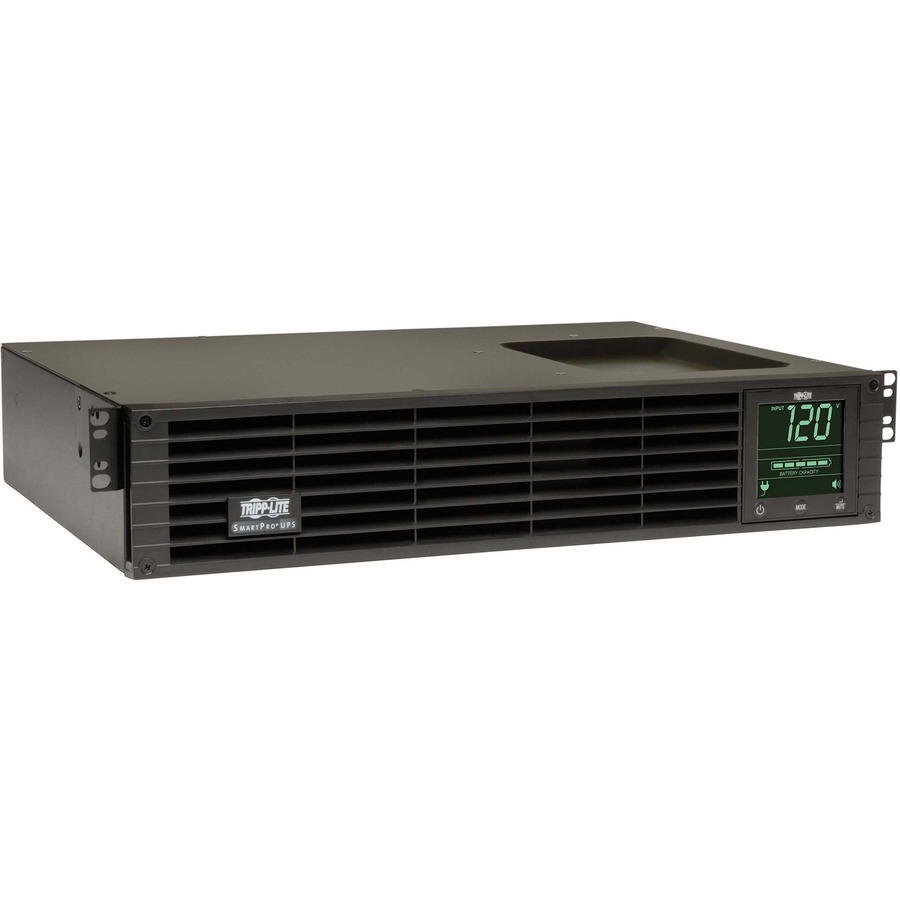

The SMART1500RM2UN SmartPro® 120V 1.5kVA 1.35kW Line-Interactive Sine Wave UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up servers and network storage devices, the SMART1500RM2UN switches to battery mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.

Featuring eight NEMA 5-15R outlets (four switchable) and a 10-ft. (3.05 m) power cord with 120V NEMA 5-15P input, the SMART1500RM2UN has an internal battery that provides 13 minutes of support at half load and 4.5 minutes at full load.

The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

Automatic voltage regulation (AVR) maintains 120V nominal output over an input range of 83V to 147V without using battery power. EMI/RFI noise filtering improves your equipment's performance and prevents damage.

Technical Information
Plug/Connector Type:
NEMA 5-15P
Receptacle Type:
NEMA 5-15R
Receptacle Detail:
8 x NEMA 5-15R
Emergency Power OFF:
Yes
Transfer Time:
4 ms
Phase:
Single Phase
Application/Usage:
  • Server
  • Storage Device
  • Telecommunication
Power Description
Load Capacity:
1500 VA/1350 W
Input Voltage:
120 V AC
Output Voltage:
  • 110 V AC
  • 115 V AC
  • 120 V AC
Waveform Type:
Pure Sine Wave
Management
Network Management:
SNMP Manageable
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Battery Information
Backup/Run Time (Full Load):
4.50 Minute
Backup/Run Time (Half Load):
13 Minute
Typical Battery Recharge Time:
4.50 Hour
Hot Swappable:
Yes
Physical Characteristics
Height:
3.5"
Width:
17.3"
Depth:
13.5"
Rack Height:
2U
Form Factor:
Rack/Tower
Weight (Approximate):
46.50 lb
Miscellaneous
Package Contents:
  • SMART1500RM2UN UPS System with Pre-installed SNMPWEBCARD
  • Pre-installed WEBCARDLX network interface
  • USB cable
  • DB9 cable
  • EPO cable
  • Mounting hardware
  • Owner's manual
Certifications & Standards:
  • UL1778
  • CSA
  • NOM
  • FCC Part 15 Category B (EMI)
Software Included:
PowerAlert Software
Country of Origin:
China
TAA Compliant:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0012300075091, 0037332178237, 0818218532370
UPC: 012300075091, 037332178237, 818218532370
EAN: 0012300075091, 0037332178237, 0818218532370
UNSPSC: 39121011
