Tripp-Lite SMART1500RM2U Products

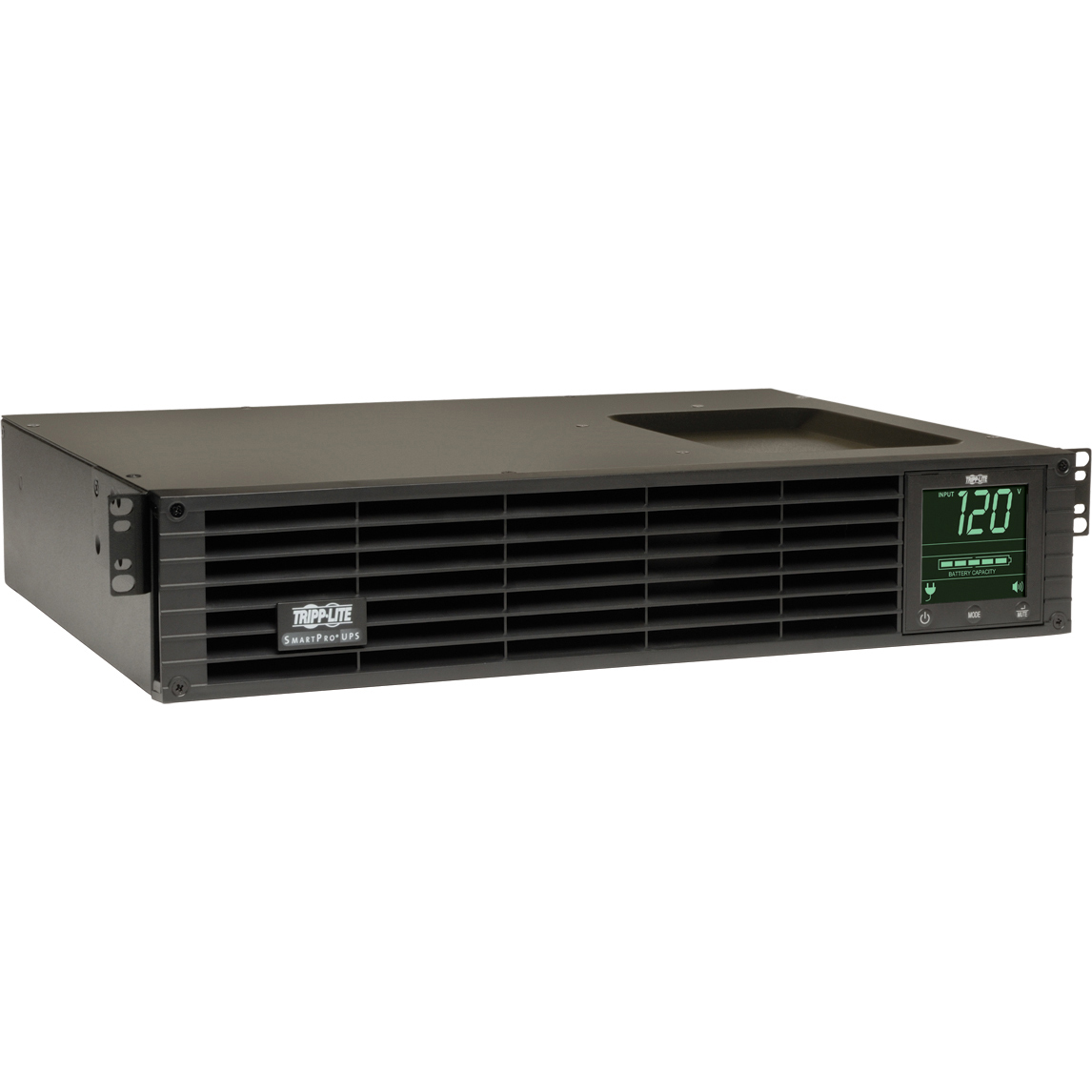

Tripp-Lite - Tripp Lite UPS Smart 1500VA 1350W Rackmount AVR 120V Pure Sine Wave USB DB9 SNMP 2URM - 2U - 4 Hour Recharge - 4.50 Minute Stand-by - 110 V AC Input - 120 V AC Output - 8 x NEMA 5-15R
  • Corrects under- and overvoltages from 83V to 147V
  • 8 NEMA 5-15R outlets-4 switchable via network interface
  • Network power management and control capability
  • Interactive LCD monitoring screen
  • 13 min. runtime at half load; 4.5 min. at full load
Read More

Need a different version? See all Tripp-Lite Parts Accessories

$1,067.74
In Stock
Add to Quote
Add to My Shopping List Add to Compare
Tripp-Lite SMART1500RM2U Products
Tripp-Lite SMART1500RM2U Products Tripp-Lite SMART1500RM2U Products Tripp-Lite SMART1500RM2U Products Tripp-Lite SMART1500RM2U Products
Tripp-Lite SMART1500RM2U Products
Tripp-Lite SMART1500RM2U Products
Tripp-Lite SMART1500RM2U Products
Tripp-Lite SMART1500RM2U Products
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite SMART1500RM2U Products Overview

Protects Mission-Critical Rack-Mounted Equipment

  • Provides fully regulated sine wave AC output for servers, network storage devices and telecom hardware
  • Audible alarm signals loss of utility power, overload, low battery and fault conditions

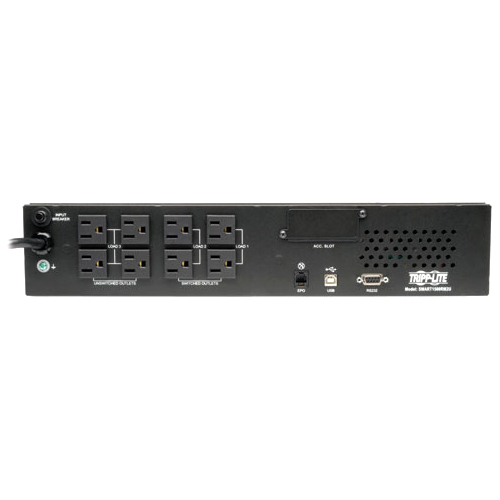

  • 8 NEMA 5-15R outlets
  • 10-ft. (3.05 m) power cord with 120V NEMA 5-15P input
  • 0.9 power factor rating
  • 570-joule surge suppression rating


Reliable Battery Backup

  • Supports half load up to 13 min. and full load up to 4.5 min.
  • Internal batteries designed for hot-swap field replacement
  • 95% line-power efficiency rating saves money in energy costs


2 Load Banks with Switchable Outlets

  • Can control 4 outlets remotely to reboot equipment or shed nonessential loads


Automatic Voltage Regulation (AVR)

  • Maintains 120V nominal output over input range of 83V-147V without using battery power


EMI/RFI Line Noise Filtering

  • Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance


Interactive LCD Screen

  • Front-panel LCD signals operating mode, load level, voltage, battery charge and estimated runtimes
  • Rotates for easy viewing in rack-mount or tower configurations


Network Management Cards

  • Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX, SNMPWEBCARD and RELAYIOCARD


Communications Ports

  • USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from
  • EPO">www.tripplite.com/poweralert port supports emergency shutdown in large facilities

  • EPO">
    Versatile Installation Options

  • EPO">
    • Hardware included for 4-post mounting in 2U of EIA-standard 19 in. rack
    • Mounts on wall or 2-post rack with optional 2POSTRMKITWM accessory
    • Mounts in upright tower position with optional 2-9USTAND accessory
  • EPO">
Technical Information
Plug/Connector Type:
NEMA 5-15P
Receptacle Type:
NEMA 5-15R
Receptacle Detail:
8 x NEMA 5-15R
Overload Protection:
Yes
Emergency Power OFF:
Yes
Cord Length:
10 ft
Transfer Time:
4 ms
Power Description
Load Capacity:
1500 VA/1350 W
Input Voltage:
110 V AC
Output Voltage:
120 V AC
Waveform Type:
Sine Wave
Surge Energy Rating:
570 J
Management
Network Management:
SNMP/Webcard
Alarm:
  • On Battery
  • Overload
  • Low Battery
Controls/Indicators
Status Indicators:
LED Indicator
Interfaces/Ports
USB:
Yes
Total Number of Expansion Slots:
1
Battery Information
DC System Voltage:
36 V DC
Battery Characteristics:
Valve-regulated
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
4.50 Minute
Backup/Run Time (Half Load):
13 Minute
Battery Life:
6 Year
Typical Battery Recharge Time:
4 Hour
Hot Swappable:
Yes
Replaceable Battery:
Yes
Environmental Conditions
Maximum Operating Temperature:
104°F (40°C)
Storage Temperature:
5°F (-15°C) - 122°F (50°C)
Maximum Operating Elevation:
6561.68 ft
Storage Relative Humidity:
0% - 95%
Sound Emission (A-Weighted):
45 dB(A)
Thermal Dissipation:
78.25 W
Physical Characteristics
Height:
3.5"
Width:
17.5"
Depth:
13.5"
Rack Height:
2U
Form Factor:
Rack-mountable
Weight (Approximate):
46 lb
Miscellaneous
Package Contents:
  • SmartPro 1500RM2U UPS
  • Mounting hardware for 4 post rackmount installation
  • Cabling for USB & DB9 monitoring and EPO switching
  • PowerAlert unattended shutdown and UPS/Power monitoring software
  • Warranty information
Additional Information:
  • SMART1500RM2U line-interactive UPS offers battery derived sine wave AC output during power outages, voltage regulation during brownouts and overvoltages, plus network grade AC surge suppression
  • 1500VA / 1350 watt power handling ability and full time sine wave output offers guaranteed compatibility with properly sized networking, telecom and other sensitive electronic devices
  • Supports 2U rackmount installation in 4 post rack enclosures with included mounting accessories, 2 post mountable with optional 2POSTRMKIT accessory, upright tower installation supported with optional
  • 2-9USTAND accessory
  • Large internal batteries offer runtimes of 25 minutes at half load (750VA / 500 watts) and 10 minutes at full load (1500VA / 1350 watts)
  • Maintains regulated 120V nominal output during brownouts and overvoltages from 83 to 147V
  • Includes 8 UPS-supported outlets arranged in 2 individually controllable load banks (2 outlets per bank)
  • PowerAlert UPS monitoring and unattended shutdown software enables configurable network broadcast messaging, pager & email notification, event logging and running user-defined script commands
  • Offers simultaneous monitoring by up to 3 directly-connected devices through included USB, DB9 and SNMP* interfaces (*requires optional SNMPWEBCARD), or the monitoring of any number of additoinal UPS systems over IP with included PowerAlert monitoring software. Free PowerAlert enterprise management software is also available for select opportunities
  • Communications ports support messaging of UPS and line power status, including on battery, low-battery, power restored, AC line voltage, DC battery voltage and remaining battery capacity
  • Supports timed inverter shutoff after unattended shutdown, activate self-test and UPS output power control for scheduled or immediate reboot of connected devices
  • Supports Tripp Lite's WatchDog software application to restore unresponsive programs by systematically restarting applications, operating systems and ultimately rebooting completely locked computers by momentarily switching UPS power off and back on again (requires optional WATCHDOGSW)
  • Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter
  • Emergency Power Off (EPO) interface with cable
  • Multi-function audible alarms and set of 5 front panel LEDs
  • Network-grade AC surge suppression
  • Attractive all-black color scheme
  • UPS battery set ships fully assembled and ready for installation, no time consuming connection of internal batteries by user is necessary
  • This unit has an LCD screen
  • Two year warranty with $250,000 connected equipment insurance (USA & Canada only)
Certifications & Standards:
UL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41 specifications
Recycled:
No
Environmentally Friendly:
Yes
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0037332119209, 0724289138727, 0778890687976
UPC: 037332119209, 724289138727, 778890687976
EAN: 0037332119209, 0724289138727, 0778890687976
UNSPSC: 39121011
