Tripp-Lite SMART1200LCD Data Networking

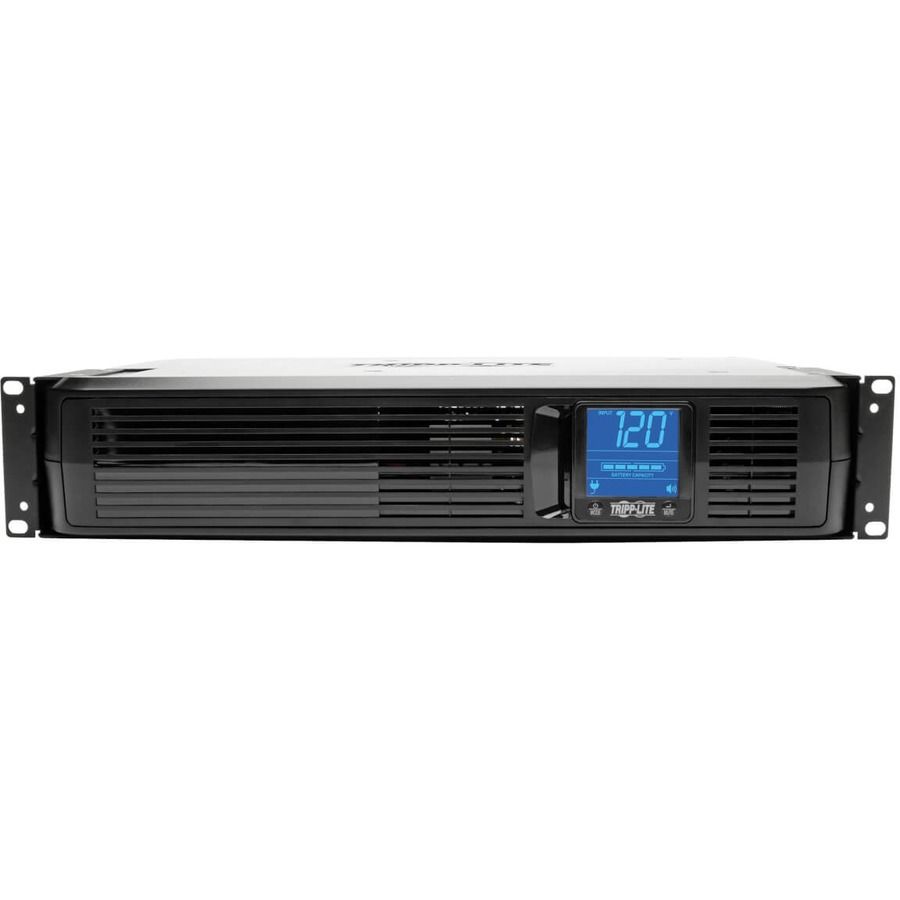

Tripp-Lite - Tripp Lite UPS Smart 1200VA 700W Rackmount Tower Battery Back Up LCD AVR 120V USB DB9 RJ45 - 1200VA/700W - 4 Minute Full Load - 8 x NEMA 5-15R
  • Supports a half-load (350W) up to 12 min. during power outage
  • Supports a full load (700W) up to 4 min. during power outage
  • Features 8 protected NEMA 5-15R outlets
  • Offers automatic voltage regulation (AVR)
  • LCD screen reports real-time UPS and power status
Read More
$451.91
In Stock
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite SMART1200LCD Data Networking Overview

The SMART1200LCD SmartPro LCD 120V, 1200VA/700W Line-Interactive Uninterruptible Power Supply provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up your desktop computer or audio/visual components, this line-interactive UPS switches to battery backup mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.

Eight NEMA 5-15R outlets protect against surges, as well as provide up to 14.3 minutes of UPS battery support at half load (350W) and 4.0 minutes of support at full load (700W). Automatic voltage regulation (AVR) corrects severe undervoltages as low as 75V and overvoltages as high as 147V without using any battery power. EMI/RFI noise filtering improves your equipment's performance and prevents damage. A 870-joule surge suppression rating protects your equipment from harmful power surges.

NEMA 5-15P plug with 6-ft. (1.83 m) cord connects to any NEMA 5-15R socket. Large rotatable LCD screen shows real-time input voltage, overload, AVR and battery statuses at a glance. Alarm sounds to indicate power loss or low battery. With Tripp Lite's free PowerAlert software (available via free web download), the SMART1200LCD enables safe unattended system shutdown and file saves in case of a prolonged power failure.

Reliable Battery Backup

  • Provides 1200VA/700W high-performance power protection for desktop computers, audio/video components, media centers and other electronics
  • Supports 50% load (350W) up to 12 minutes and full load (700W) up to 4 minutes
  • Audible alarm indicates loss of utility power or low battery
  • Battery access door enables hot-swappable, user-replaceable internal batteries


Optimized Outlets

  • 8 NEMA 5-15R outlets provide battery backup and protect against surges or spikes that can harm equipment or data


Automatic Voltage Regulation (AVR)

  • Corrects undervoltages as low as 75V and overvoltages as high as 147V without drawing battery backup power


Rotatable LCD Status Screen

  • Large LCD screen shows real-time input voltage, AVR and battery statuses
  • Rotates for easy viewing in both horizontal and vertical installations
  • Dimmer option controls brightness level


AC Line, Tel/DSL and Ethernet Surge Suppression

  • Surge suppression rating of 870 joules protects connected equipment and data from harmful power surges
  • Built-in RJ-45 jacks protect single-line tel/DSL or network Ethernet connection


EMI/RFI Line Noise Filtering

  • Removes electromagnetic and radio frequency interference that can disrupt or damage your equipment's performance


USB and DB9 Communication Ports and Free PowerAlert Software

  • HID-compliant USB port integrates with built-in power management and auto-shutdown of Windows and Mac OS X
  • USB and DB9 serial ports work with Tripp Lite PowerAlert software (available for free download at www.tripplite.com/poweralert to enable safe, unattended system shutdown and file saves during prolonged power failure
Technical Information
Plug/Connector Type:
NEMA 5-15P
Receptacle Type:
NEMA 5-15R
Receptacle Detail:
8 x NEMA 5-15R
Dataline Protection:
RJ-45
Cord Length:
6 ft
Transfer Time:
4 ms
Power Description
Load Capacity:
1200 VA/700 W
Input Voltage:
110 V AC
Output Voltage:
120 V AC
Waveform Type:
Pulse-width Modulated Sine Wave
Surge Energy Rating:
870 J
Circuit Breaker:
Yes
Controls/Indicators
Status Indicators:

Front panel LCD screen with blue backlight offers:

  • Continuous input line voltage data
  • Line power
  • Battery power
  • Battery charge level
  • Voltage regulation operation
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Battery Information
Backup/Run Time (Full Load):
4 Minute
Backup/Run Time (Half Load):
14.30 Minute
Battery Life:
6 Year
Typical Battery Recharge Time:
8 Hour
Environmental Conditions
Maximum Operating Temperature:
122°F (50°C)
Thermal Dissipation:
71.42 W
Physical Characteristics
Product Color:
Black
Height:
17.3"
Width:
3.5"
Depth:
10.5"
Rack Height:
2U
Form Factor:
Tower
Weight (Approximate):
25.13 lb
Miscellaneous
Package Contents:
  • SmartPro 1200 VA Rack-mountable Tower Digital UPS
  • SMART1200LCD Digital UPS
  • USB, DB9 and phone cabling
  • Mounting hardware
  • Manual with warranty information
Additional Information:
  • Switches: Includes 2 front panel switches one main on/off power switch and one dual-function "alarm cancel"/"self test" button
  • WatchDog compatibility: Yes, compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application / OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications
  • Low voltage transfer to battery power: Switches to battery power as line voltage decreases to 75V or less, switches back to AC mode as line voltage increases to 79V or higher
  • High voltage transfer to battery power: Switches to battery mode as line voltage increases to 147V or higher, switches back to AC mode as line voltage decreases to 143V or lower
  • Cold Start: Yes, inverter can be "cold started" to enable temporary AC output during a power failure
  • Typical Applications: Entry-level PCs, networked workstations, point-of-sale equipment, small business phone systems, audio/video equipment and home theater systems. Ideal for sensitive electronic applications in areas where brownout conditions are common
  • Internal UPS circuits support entry-level PCs or individual VCR/DVR components during power failures
  • Prevents data loss, viewing interruptions, lost recordings and loss of component programming
  • Automatic voltage regulation (AVR) circuits regulate brownouts and overvoltages from 75V to 147V back to usable levels without using battery power
  • HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows, Mac OS X and Linux
  • Display is rotatable for easy viewing whether UPS is in vertical or horizontal position.
  • Cabinet adapts to tower or rackmount shelf format
Certifications & Standards:
  • Tested to UL1778 (USA)
  • CSA (Canada)
  • NOM (Mexico)
  • Class B (EMI)
  • FCC Part 68
  • Industry Canada (US & Canada)
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0012302293882, 0037332126122, 0818242675340, 4923213165723
UPC: 012302293882, 037332126122, 163120460069, 818242675340
EAN: 0012302293882, 0037332126122, 0818242675340, 4923213165723
UNSPSC: 39121011
