Tripp-Lite SMART1000RM1U Products

Tripp-Lite - Tripp Lite UPS Smart 1000VA 800W Rackmount AVR 120V Pure Sine Wave USB DB9 SNMP 1URM - 1U Rack-mountable - 4.50 Hour Recharge - 4 Minute Stand-by - 120 V AC Input - 110 V AC, 115 V AC, 120 V AC Output - 6 x NEMA 5-15R

Corrects under- and overvoltages from 83V to 147V
6 NEMA 5-15R outlets-2 switchable via network interface
Network power management and control capability
14 min. runtime at half load; 4 min. at full load

Need a different version? See all Tripp-Lite Parts Accessories

$1,008.00

In Stock

Chat Now for Qty Discount

Add to Quote

Overview

Tripp-Lite Parts Accessory Model Overview

Products and parts from Tripp-Lite.

Tripp-Lite SMART1000RM1U Products Overview

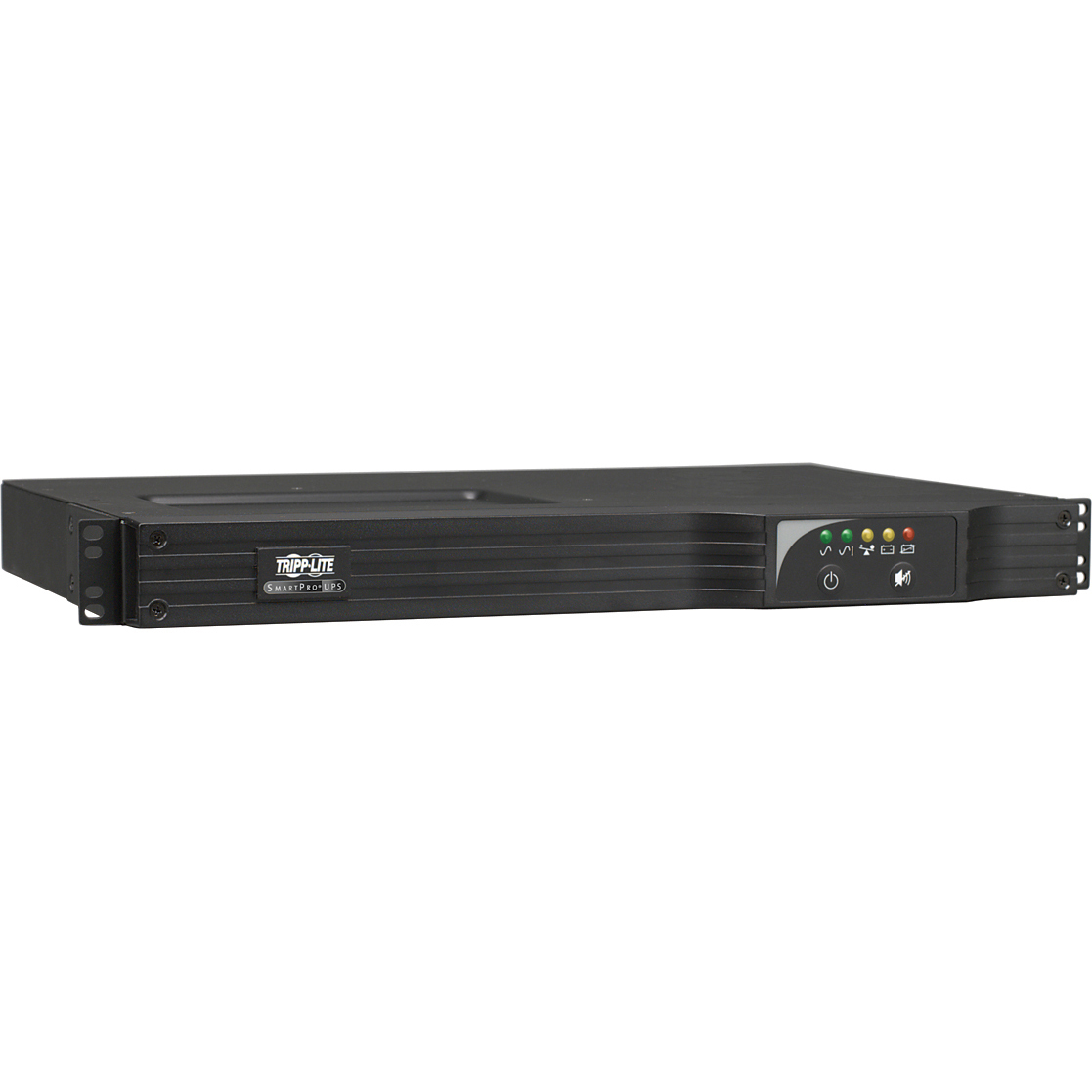

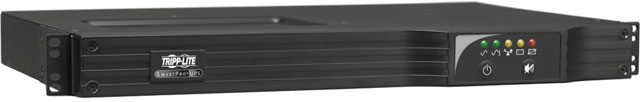

Protects Mission-Critical Rack-Mounted Equipment

Provides fully regulated sine wave AC output for servers, network storage devices and telecom hardware
Audible alarm signals loss of utility power, overload and low battery
6 NEMA 5-15R outlets
10 t. (3.1 m) power cord with 120V NEMA 5-15P input
450-joule surge suppression rating

Reliable Battery Backup

Supports half load up to 14 min. and full load up to 4 min.
Internal batteries designed for hot-swap field replacement

Switchable Outlets

2 load banks, each with one outlet individually controllable via software interface to reboot equipment or shed nonessential loads

Automatic Voltage Regulation (AVR)

Maintains 120V nominal output over input range of 83V-147V without using battery power

EMI/RFI Line Noise Filtering

Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance

High Efficiency Operation

99% line mode efficiency saves money, energy and protects the environment

Network Management Cards

Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX and SNMPWEBCARD

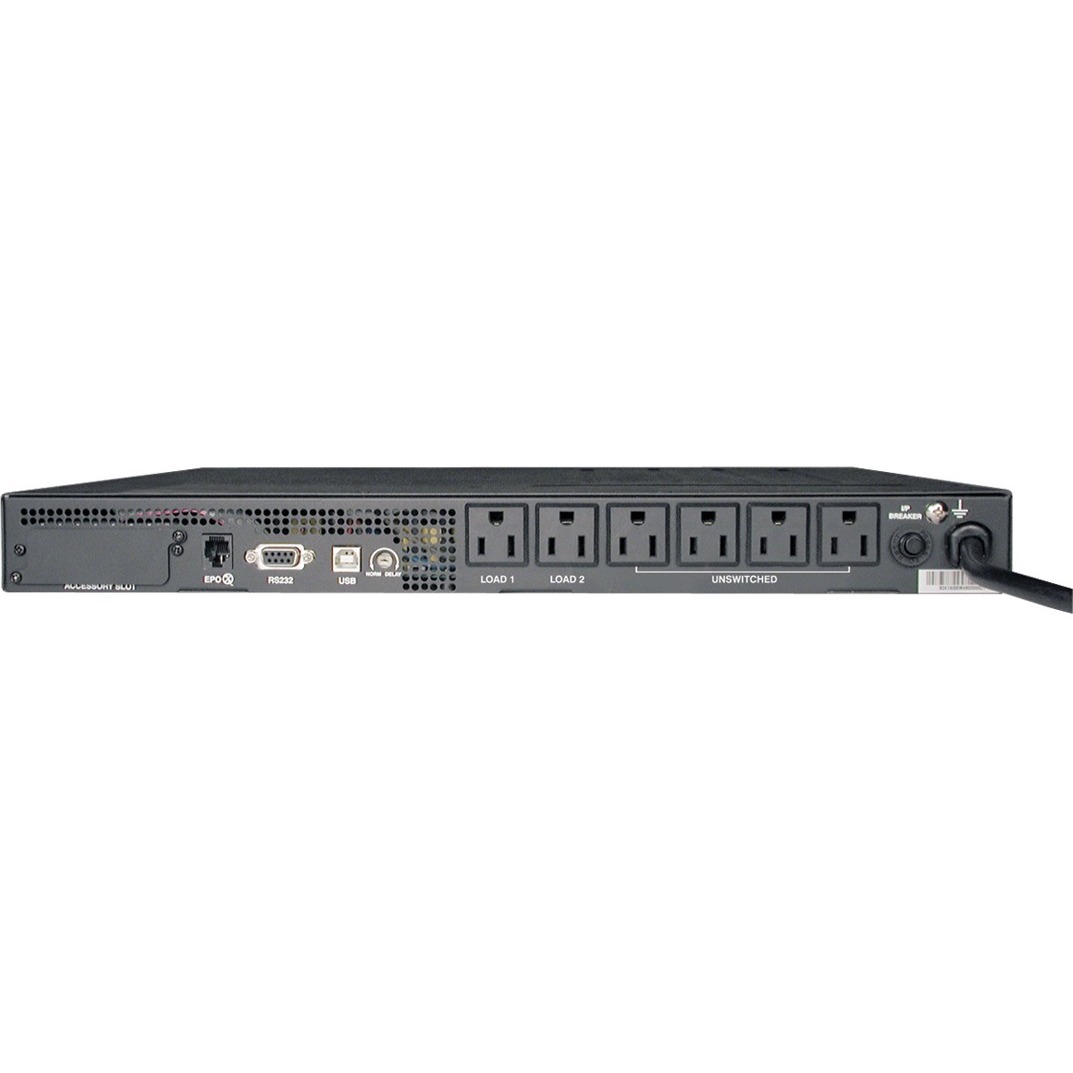

Communications Ports

USB and DB9 ports combine with PowerAlert software (available via free download from www.tripplite.com/poweralert) to monitor operating conditions, monitor AC power, and enable safe unattended system shutdown and file saves in case of a prolonged power failure
EPO port supports emergency shutdown in large facilities

Versatile Installation Options

Hardware included for mounting in 1U of EIA-standard 19 in. 2- or 4-post rack
Optional 4POSTRAILKIT1U accessory available for extra support in 4-post installations
Compatible with vertical mount cabinets

Detailed Specs

Technical Information

Plug/Connector Type:

NEMA 5-15P

Receptacle Type:

NEMA 5-15R

Receptacle Detail:

6 x NEMA 5-15R

Transfer Time:

5 ms

Application/Usage:

Data Center
VoIP Phone System
Computer

Power Description

Load Capacity:

1000 VA/800 W

Input Voltage:

120 V AC

Output Voltage:

110 V AC
115 V AC
120 V AC

Waveform Type:

Pure Sinusoidal

Battery Information

Backup/Run Time (Full Load):

4 Minute

Typical Battery Recharge Time:

4.50 Hour

Hot Swappable:

Yes

Physical Characteristics

Height:

1.7"

Width:

17.5"

Depth:

16.7"

Rack Height:

Form Factor:

Rack-mountable

Weight (Approximate):

31.99 lb

Miscellaneous

Package Contents:

SmartPro 1000RM1U UPS
SMART 1000RM1U UPS System
Mounting hardware
Cabling for USB & DB9 monitoring and EPO switching
PowerAlert unattended shutdown and UPS/Power monitoring software
Warranty information and instruction manual

Country of Origin:

China

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0037332099259, 0037332118820, 0818215562172, 4963273106984

UPC: 037332099259, 037332118820, 373321188208, 818215562172

EAN: 0037332099259, 0037332118820, 0818215562172, 4963273106984

UNSPSC: 39121011
