Plug/Connector Type:
NEMA 5-15P
Receptacle Type:
NEMA 5-15R
Receptacle Detail:
4 x NEMA 5-15R
Dataline Protection:
RJ-11
Transfer Time:
4 ms
Tripp-Lite UPS Accessory Model Overview
Tripp-Lite UPS and Power Supply products.

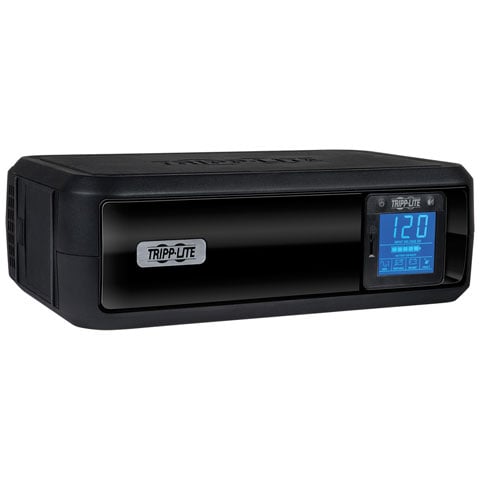

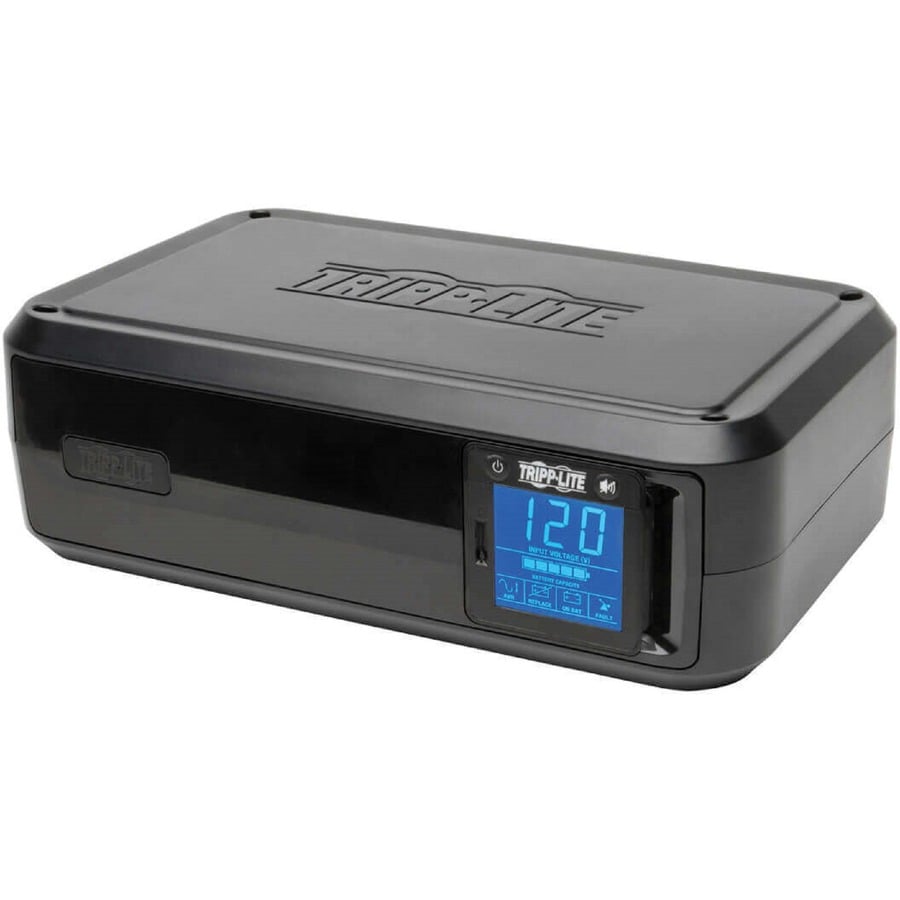

Tripp-Lite SMART1000LCD UPS Overview
Line-Interactive Digital UPS System offers voltage regulation, surge suppression and battery support for personal computers, network workstations and more. Internal UPS circuits support entry-level PCs for 60 minutes or individual VCR/DVR for 3 hours during power failure. AVR circuits regulate brownouts as low as 89 volts back to usable levels without using battery power. Includes 4 battery-supported outlets, plus 4 surge suppression-only outlets. USB port enables optional unattended system shutdown without data loss; cable included. HID-compliant USB interface enables integration with built-in power management and auto shutdown of Windows, Mac OS X and Linux. Built-in single-line RJ-11 phone suppression jacks protect modem and satellite receiver with standard dialup/DSL phone connection. 2.2 GHz coaxial jacks protect against surges on CATV, satellite or broadcast antenna connections. 3 minute battery runtime with full load of 1000VA/500W and 10 minutes with half load of 500VA/250W.
Technical Information
Power Description
Load Capacity:
1000 VA/500 W
Input Voltage:
120 V AC
Output Voltage:
120 V AC
Surge Energy Rating:
1038 J
Interfaces/Ports
USB:
Yes
Battery Information
Backup/Run Time (Full Load):
3 Minute
Backup/Run Time (Half Load):
10 Minute
Battery Life:
6 Year
Typical Battery Recharge Time:
8 Hour
Environmental Conditions
Maximum Operating Temperature:
122°F (50°C)
Physical Characteristics
Product Color:
Black
Height:
10.4"
Width:
15.6"
Depth:
4.8"
Rack Height:
2U
Form Factor:
Tower
Weight (Approximate):
14.60 lb
Miscellaneous
Package Contents:
- SmartPro 1000 VA Tower Digital UPS
- SMART1000LCD Digital UPS
- USB and phone cabling
- Manual with warranty information
Additional Information:
- Low voltage transfer to battery power: Switches to battery power as line voltage decreases to 89V or less, switches back to AC mode as line voltage increases to 94V or higher
- High voltage transfer to battery power: Switches to battery mode as line voltage increases to 139V or higher, switches back to AC mode as line voltage decreases to 135V or lower
- Typical Applications: Entry-level PCs, networked workstations, point-of-sale equipment, small business phone systems, audio/video equipment and home theater systems. Ideal for sensitive electronic applications in areas where brownout conditions are common
- Cold Start: Yes, inverter can be "cold started" to enable temporary AC output during a power failure
- Switches: Includes 2 front panel switches - one main on/off power switch and one dual function "alarm cancel" / "self test" button
Certifications & Standards:
- UL1778 (TUV)
- cUL (TUV)
- NOM
- FCC Class B
- FCC part 68 (US & Canada)
Recycled:
No
Assembly Required:
No
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
2 year product warranty / $250,000 Ultimate Lifetime Insurance (USA, Puerto Rico & Canada only)
Item Numbers
GTIN:
0037332124999, 0191081724432, 0777780078078, 0993251232989
UPC:
037332124999, 191081724432, 777780078078, 993251232989
EAN:
0037332124999, 0191081724432, 0777780078078, 0993251232989
UNSPSC:
39121011
Get help from a Barcoding Expert!
The Tripp-Lite SMART1000LCD UPS is also known as
SMART1000LCD
