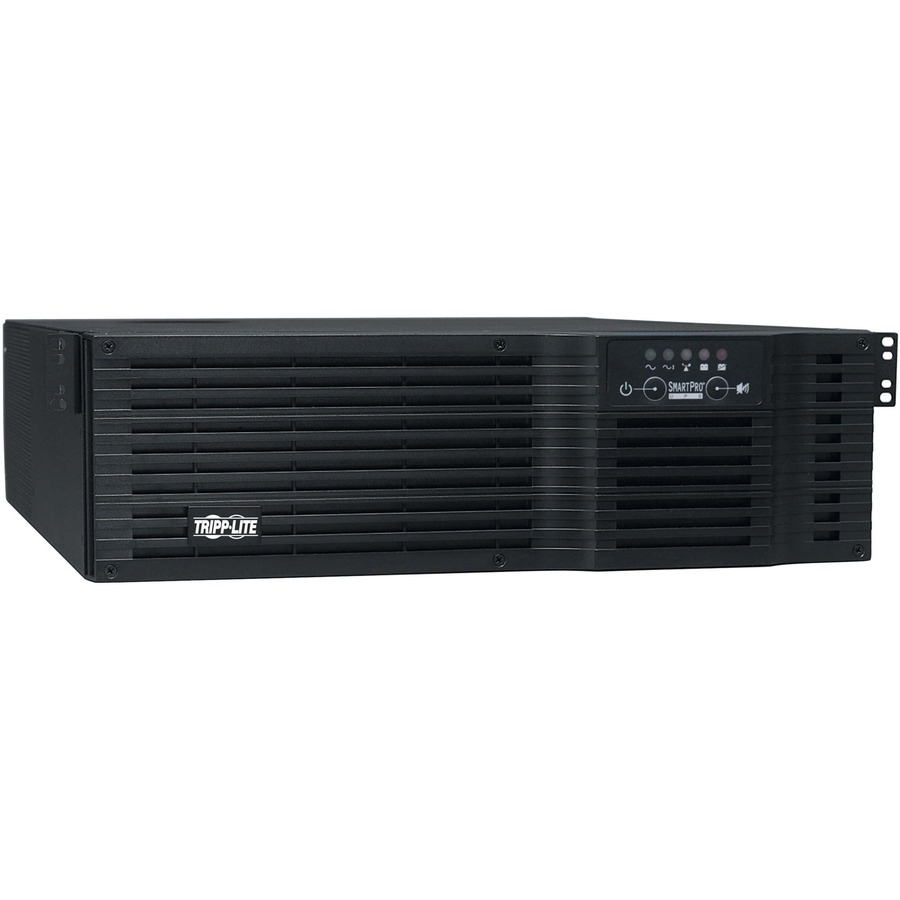

Tripp-Lite SM2200RMDVTAA Rack

Part Number: SM2200RMDVTAA
Model: Parts
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$2,807.88

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Receptacle Type
NEMA 5-15/20RNEMA 5-15R
Receptacle Detail
4 x NEMA 5-15/20R4 x NEMA 5-15R
Emergency Power OFF
Yes
Transfer Time
4 ms

Product Description:

  Racks, Tripp-Lite, TAA SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS, 3U, 120/230V input, Network Card Options, USB, DB9
Explore all Tripp-Lite Parts Accessories
Add to Quote
Tripp-Lite SM2200RMDVTAA Rack
Tripp-Lite SM2200RMDVTAA Rack
Tripp-Lite SM2200RMDVTAA Rack Tripp-Lite SM2200RMDVTAA Rack

Tripp-Lite Parts Accessory Model Overview

Products and parts from Tripp-Lite.
Tripp-Lite SM2200RMDVTAA Rack Overview

Tripp Lite's dual input voltage SM2200RMDVTAA line interactive UPS system maintains 120V nominal output when powered by North American 120V or International 230V input. 3U rack / tower form factor with an installed depth of only 22.5 inches. Expandable battery runtime with optional BP48V24-2U and BP48V60RT3U external battery packs. Includes C20 power inlet with set of 4 international cordsets and both NEMA 5-15R and 5-15/20R output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Integrated 2-bank programmable PDU switching supports load shedding and remote-reboot of up to 2 individual connected devices. 3-stage metered current monitoring and battery charge status LEDs. 95% efficiency in line power mode.

Technical Information
Receptacle Type:
  • NEMA 5-15/20R
  • NEMA 5-15R
Receptacle Detail:
  • 4 x NEMA 5-15/20R
  • 4 x NEMA 5-15R
Emergency Power OFF:
Yes
Transfer Time:
4 ms
Power Description
Load Capacity:
2200 VA/1920 W
Input Voltage:
  • 110 V AC
  • 220 V AC
Output Voltage:
120 V AC
Input Current:
16 A
Management
Network Management:
SNMP Manageable
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Battery Information
Backup/Run Time (Full Load):
12 Minute
Backup/Run Time (Half Load):
30 Minute
Typical Battery Recharge Time:
4.50 Hour
Hot Swappable:
Yes
Physical Characteristics
Height:
5.3"
Width:
17.5"
Depth:
25.3"
Rack Height:
3U
Form Factor:
Rack/Tower
Weight (Approximate):
104.25 lb
Miscellaneous
Package Contents:
  • SmartPro SM2200RMDVTAA 2200 VA Tower/Rack Mountable UPS
  • 5 x International Input Power Cables
  • USB Cable
  • Serial Cable
  • EPO Cable
  • PowerAlert Software CD
  • Tower Stand Kit
  • 4 Post 19 inch Rackmount Mounting Kit
  • 2 Post 19 inch Rackmount Mounting Kit
  • User Manual
Additional Information:

Input Receptacle: C20

Certifications & Standards:
  • UL1778
  • FCC Part 15 Category A
  • TAA Compliant
Software Included:
PowerAlert Software
Environmentally Friendly:
Yes
Country of Origin:
Taiwan
TAA Compliant:
Yes
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0037332156310, 4913393134701
UPC: 037332156310
EAN: 0037332156310, 4913393134701
UNSPSC: 39121011
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Tripp-Lite SM2200RMDVTAA Rack is also known as POW-SM2200RMDVTAA or SM2200RMDVTAA.
