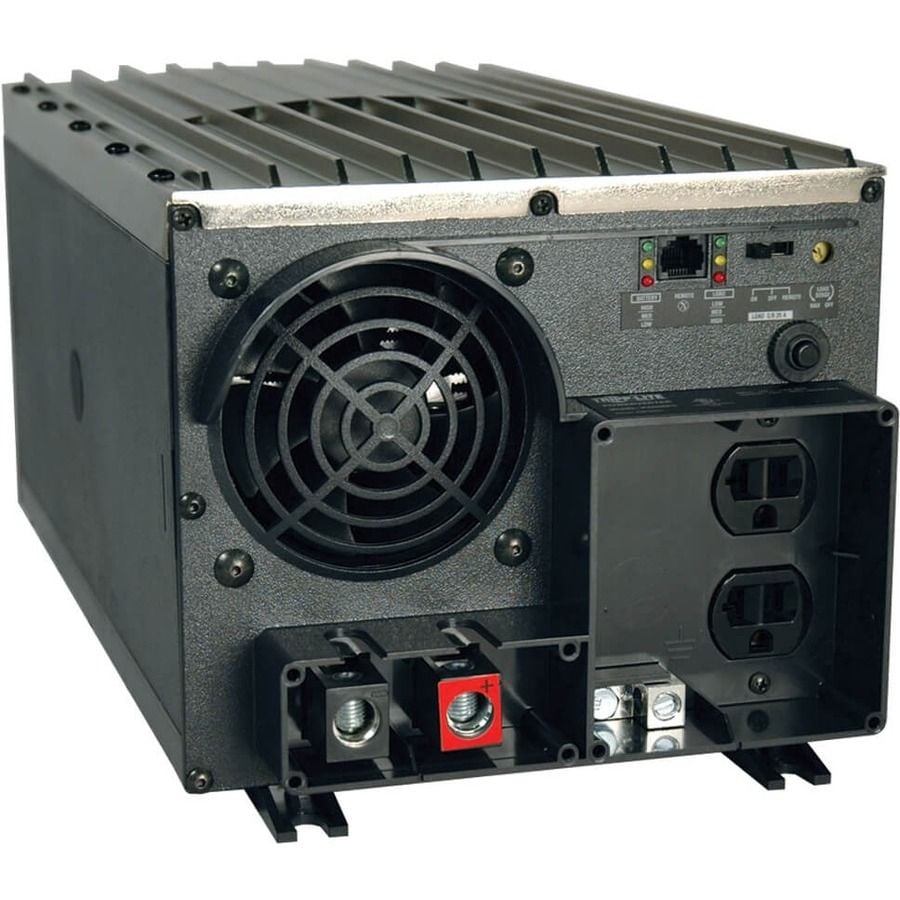

Tripp-Lite PV2000FC Power Device

Tripp-Lite - Tripp Lite Industrial Inverter 2000W 12V DC to 120V AC - Input Voltage: 12 V DC - Output Voltage: 120 V AC - Continuous Power: 2 kW
  • Designed for heavy duty and motor loads
  • 12V DC input; 120V AC output; 2 outlets
  • 2000W continuous output
  • Peak surge output: OverPower (up to 1 hour)-3000W, Double-Boost (up to 10 seconds)-4000W
  • High-efficiency power conversion
  • Automatic overload protection
Read More

Need a different version? See all Tripp-Lite Parts Accessories

$817.68
In Stock
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Tripp-Lite PV2000FC Power Device
Tripp-Lite PV2000FC Power Device
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite PV2000FC Power Device Overview
Utilize your vehicle's battery to efficiently power office equipment on the road or power tools at a work site. Continuously supplies up to 2000W of 120V AC power to 2 AC outlets from any 12V battery or automotive DC source. Frequency control locks AC output at 60Hz for operating stability of motor loads. Includes a set of high-current DC input terminals for simple, permanent installation. Highly reliable large transformer design specializes in powering motors and other inductive loads with high-current startup needs. Built-in RJ45 port allows connection of APS/PowerVerter Remote Switch (APSRM4)
OPTIONAL FEATURES: Optional load sense function enables automatic inverter shutoff and startup as connected equipment is powered off and on. Front panel load sense potentiometer can be set to shut off or turn on inverter power in response to loads of any level. Ignition Switch Control Jack connects inverter to vehicle ignition system to automatically control inverter. Inverter ON/OFF Relay Jack connects to a user-supplied on/off indicator for remote visual status of the operation of the inverter.
Technical Information
Receptacles:
2 x NEMA 5-15R
Protection Type:
Overload Protection
Power Description
Input Voltage:
12 V DC
Output Voltage:
120 V AC
Maximum Frequency:
60 Hz
Peak Power Load:
4000 W
Continuous Power Load:
2000 W
Waveform Type:
Pulse-width Modulated Sine Wave
Physical Characteristics
Product Color:
Black
Height:
7.3"
Width:
8.5"
Depth:
16.3"
Weight (Approximate):
39 lb
Miscellaneous
Package Contents:
  • PowerVerter Plus 2000W Industrial-Strength Inverter with 2 Outlets
  • Instruction Manual
Certifications & Standards:
UL458 (USA, Canada)
Environmentally Friendly:
Yes
Country of Origin:
China
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0037332042194, 0373320421948, 0729198749071
UPC: 037332042194, 373320421948, 729198749071
EAN: 0037332042194, 0373320421948, 0729198749071
UNSPSC: 39121006
