Receptacles:
4 x NEMA 5-15R
Tripp-Lite PV1000HF Power Device
Part Number:
PV1000HF
Model:
Parts
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite PV1000HF Power Device Overview

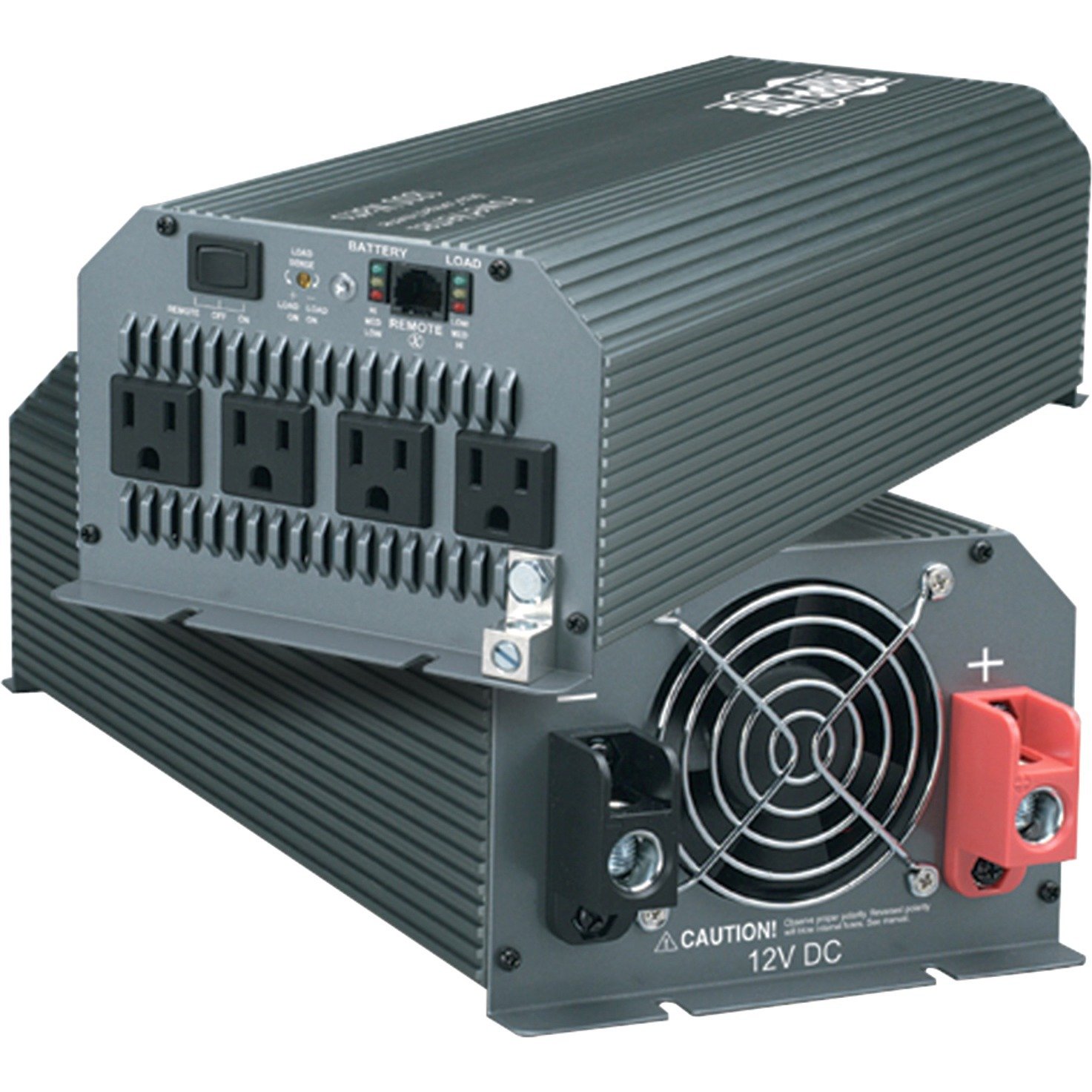

Utilize your vehicle's battery to efficiently power office equipment on the road or power tools at a work site. Continuously supplies up to 1000 watts of 120V AC power to 4 AC outlets from any 12V battery. Includes a set of DC terminals for simple installation. Compact, lightweight metal case design is among the smallest, most rugged inverters available at this power level.
NOTE: To protect against high current draw that may occur during inverter failure, a fuse link rated at 175a should be positioned no more than 18" from the PV1000HF's battery in the positive line.
NOTE: To protect against high current draw that may occur during inverter failure, a fuse link rated at 175a should be positioned no more than 18" from the PV1000HF's battery in the positive line.
Technical Information
Power Description
Input Voltage:
12 V DC
Output Voltage:
120 V AC
Maximum Frequency:
60 Hz
Peak Power Load:
2000 W
Continuous Power Load:
1000 W
Waveform Type:
Pulse-width Modulated Sine Wave
Physical Characteristics
Color Family:
Gray
Product Color:
Gray
Height:
4.3"
Width:
6"
Depth:
13"
Weight (Approximate):
6 lb
Miscellaneous
Package Contents:
- PowerVerter PV1000HF DC-to-AC Power Inverter
- Warranty Information
- Instruction Manual
Country of Origin:
China
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
0037332097187, 0041114740895, 0100177528007, 0818241832492, 0853585450599, 4923213197069
UPC:
037332097187, 041114740895, 100177528007, 818241832492, 853585450599
EAN:
0037332097187, 0041114740895, 0100177528007, 0818241832492, 0853585450599, 4923213197069
UNSPSC:
39121006
