Tripp-Lite PDUMV20-72 Accessory

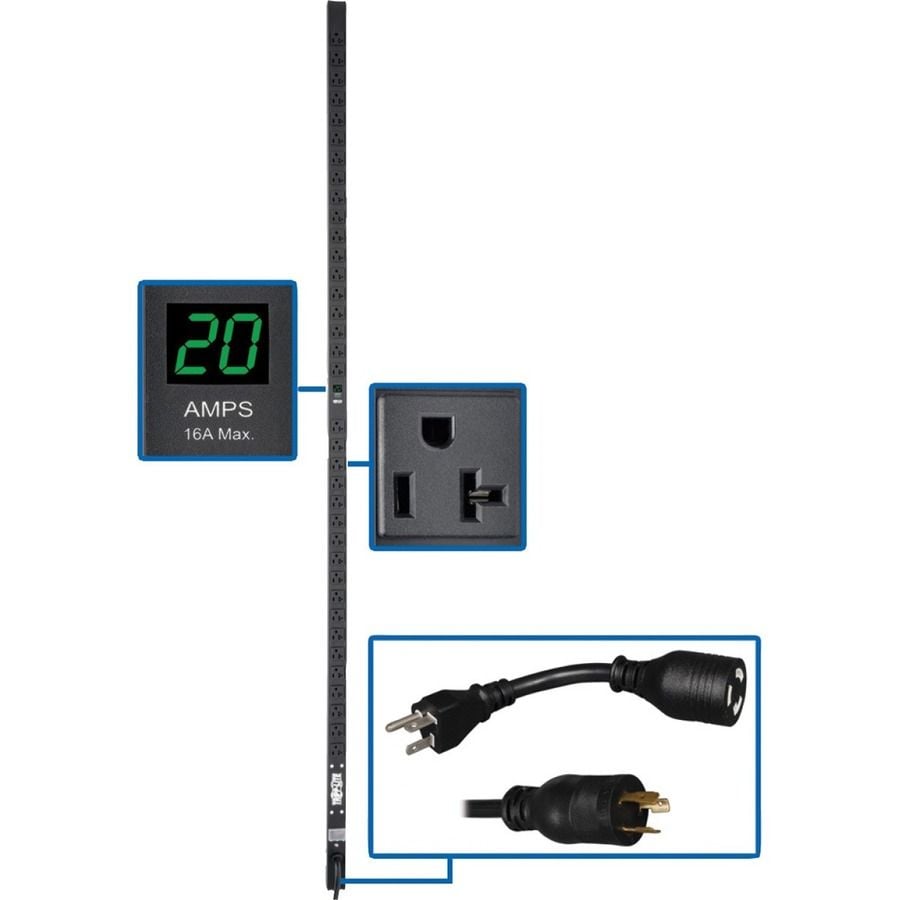

Tripp-Lite - Tripp Lite PDU Metered 120V 20A 5-15/20R 36 Outlet L5-20P - 72 Inch Height Vertical Rackmount 0URM
  • Metered single phase 120V 20A 0U 72-in. / 61cm vertical rackmount PDU
  • Two-digit current meter reports output current in amps
  • Attached 15ft / 4.6m cord with NEMA L5-20P plug and 5-20P adapter
  • 36 NEMA 5-15/20R outlets
  • Toolless button mount and bolt-down bracket installation hardware included
Read More

Need a different version? See all Tripp-Lite Parts Accessories

$286.12
In Stock
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Tripp-Lite PDUMV20-72 Accessory
Tripp-Lite PDUMV20-72 Accessory
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite PDUMV20-72 Accessory Overview
Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
Technical Information
Plug/Connector Type:
NEMA L5-20P
Receptacle Type:
NEMA 5-15/20R
Receptacle Detail:
36 x NEMA 5-15/20R
Protection Type:
Overload Protection
Power Description
Input Voltage:
120 V AC
Output Voltage:
120 V AC
Power Rating (Watt):
2000 W
Input Current:
20 A
Physical Characteristics
Mounting Orientation:
Vertical
Mount Type:
Rack-mountable
Rack Height:
0U
Cord Length:
15 ft
Height:
72"
Width:
1.8"
Depth:
1.3"
Weight (Approximate):
5.51 lb
Miscellaneous
Package Contents:
  • PDUMV20-72 Metered Vertical PDU
  • 1 x L5-20P to 5-20P Plug Adapter
  • Mounting Hardware
  • Spare Mounting Buttons
  • Instruction Manual with Warranty Information
Certifications & Standards:
  • Tested to UL60950-1 (USA)
  • UL/CSA60950-1 (Canada)
  • NOM (Mexico)
  • FCC Class A (Emissions)
Environmentally Friendly:
Yes
Country of Origin:
China
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0037332182838
UPC: 037332182838
EAN: 0037332182838
UNSPSC: 39121017
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Tripp-Lite PDUMV20-72 Accessory is also known as PDUMV2072
