Tripp-Lite PDUMNV30HVLX Accessory

Part Number: PDUMNV30HVLX
Model: Parts
to get Free Ground Shipping on your order.
$901.57

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
PDU Type
Monitored
Phase
Single Phase
Plug/Connector Type
NEMA L6-30P
Receptacle Type
IEC 60320 C13IEC 60320 C19

Product Description:

  Tripp Lite PDU Monitored 5/5.8kW 208/240V, 20 C13 4 C19, LX Platform Interface, 0URM Rackmount Vertical TAA - Monitored - NEMA L6-30P - 20 x IEC 60320 C13, 4 x IEC 60320 C19 - 230 V AC - 5800 VA - 0U - Vertical - Rack Mount - TAA Compliant

Tripp-Lite Parts Accessory Model Overview

Products and parts from Tripp-Lite.
Tripp-Lite PDUMNV30HVLX Accessory Overview

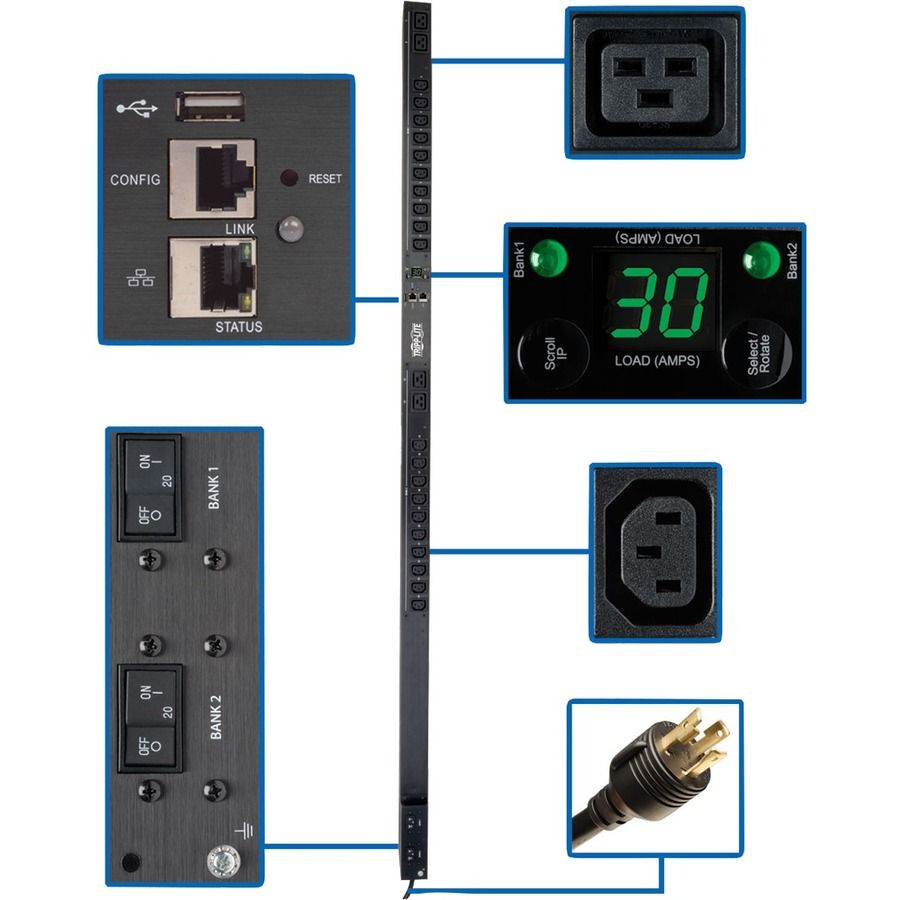

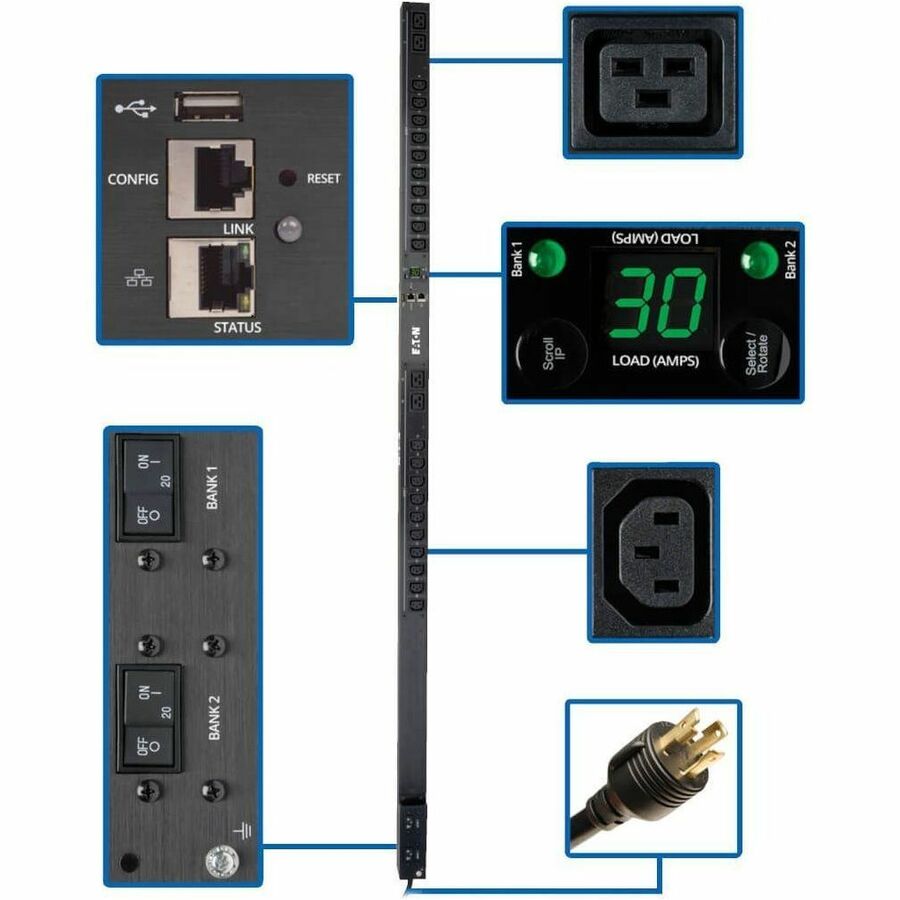

The PDUMNV30HVLX 5.8kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for any IT or industrial application, it features 24 outlets (20 C13 and 4 C19) with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L6-30P plug connects the PDU to a compatible AC power source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

A digital ammeter allows you to monitor each bank's load in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.

Technical Information
PDU Type:
Monitored
Phase:
Single Phase
Plug/Connector Type:
NEMA L6-30P
Receptacle Type:
  • IEC 60320 C13
  • IEC 60320 C19
Receptacle Detail:
  • 20 x IEC 60320 C13
  • 4 x IEC 60320 C19
Power Description
Input Voltage:
230 V AC
Input Voltage Range:
200 V AC - 240 V AC
Output Voltage:
  • 200 V AC
  • 208 V AC
  • 240 V AC
Power Rating (Watt):
5800 W
Input Current:
30 A
Management
Management:
  • HTTP
  • HTTPS
  • SNMPv1
  • SNMPv2
  • SNMPv3
  • telnet
  • SSH
  • FTP
  • DHCP
  • NTP
Physical Characteristics
Mounting Orientation:
Vertical
Mount Type:
Rack-mountable
Rack Height:
0U
Height:
70"
Width:
2.2"
Depth:
2.7"
Weight (Approximate):
11.50 lb
Miscellaneous
Package Contents:
  • PDUMNV30HVLX 5/5.8kW Single-Phase Monitored PDU
  • Configuration cable
  • 24 x Cable ties
  • 2 x Cord retention brackets
  • Rack-mounting hardware
  • PDUMVROTATEBRKT mounting bracket accessory
  • Owner's manual
Environmentally Friendly:
Yes
Country of Origin:
Taiwan
TAA Compliant:
Yes
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0037332204479, 0818216968621
UPC: 037332204479, 818216968621
EAN: 0037332204479, 0818216968621
UNSPSC: 39121017
