Tripp-Lite PDUMH30HV Power Device

Part Number: PDUMH30HV
Model: Parts
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$577.54
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Plug/Connector Type
NEMA L6-30P
Receptacle Type
IEC 60320 C19IEC 60320 C13
Receptacle Detail
2 x IEC 60320 C1916 x IEC 60320 C13
Protection Type
Overload Protection

Product Description:

  Power Systems & Supplies, Tripp-Lite, 5.5kW Single-Phase Local Metered PDU, 208/230V Outlets (16 C13 & 2 C19), L6-30P, 12'' (3.66 m) Cord, 2U Rack-Mount, TAA
Explore all Tripp-Lite Parts Accessories
Add to Quote
Tripp-Lite PDUMH30HV Power Device
Tripp-Lite PDUMH30HV Power Device
Tripp-Lite PDUMH30HV Power Device
Tripp-Lite PDUMH30HV Power Device
Tripp-Lite PDUMH30HV Power Device
Tripp-Lite PDUMH30HV Power Device Tripp-Lite PDUMH30HV Power Device Tripp-Lite PDUMH30HV Power Device Tripp-Lite PDUMH30HV Power Device Tripp-Lite PDUMH30HV Power Device

Tripp-Lite Parts Accessory Model Overview

Products and parts from Tripp-Lite.
Tripp-Lite PDUMH30HV Power Device Overview

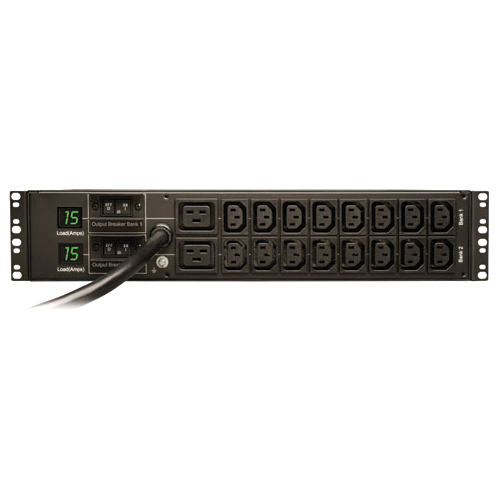

PDUMH30HV horizontal 2U metered rack PDU supports 30A maximum capacity at 208/240V (agency derated to 24A continuous). Includes 12 ft / 3.6m attached line cord with L6-30P input plug and 18 output receptacles (16 C13, 2 C19). Outlets are arranged in two separately breakered 9 outlet load banks. Set of two visual current meters tracks the output current of each load bank separately. Supports 2U rackmount installation in 19 inch racks. Included cord retention brackets keeps vital network equipment plugged in and continuously powered.

Technical Information
Plug/Connector Type:
NEMA L6-30P
Receptacle Type:
  • IEC 60320 C19
  • IEC 60320 C13
Receptacle Detail:
  • 2 x IEC 60320 C19
  • 16 x IEC 60320 C13
Protection Type:
Overload Protection
Power Description
Input Voltage:
230 V AC
Input Voltage Range:
208 V AC - 240 V AC
Output Voltage:
  • 208 V AC
  • 240 V AC
Physical Characteristics
Mounting Orientation:
Horizontal
Mount Type:
Rack-mountable
Rack Height:
2U
Height:
3.5"
Width:
17.5"
Depth:
12.5"
Weight (Approximate):
13.70 lb
Miscellaneous
Package Contents:
  • Metered PDUMH30HV 18-Outlets PDU
  • Mounting Brackets
  • Plug Retention Plates
  • User Manual
Additional Information:
TAA Compliant
Environmentally Friendly:
Yes
Country of Origin:
Taiwan
TAA Compliant:
Yes
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0037332159021, 0818243167844
UPC: 037332159021, 818243167844
EAN: 0037332159021, 0818243167844
UNSPSC: 39121017
