Tripp-Lite PDUMH20HV Power Device

Part Number: PDUMH20HV
Model: Parts
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$297.66
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Plug/Connector Type
IEC 60320 C20NEMA L6-20P
Receptacle Type
IEC 60320 C19IEC 60320 C13
Receptacle Detail
2 x IEC 60320 C198 x IEC 60320 C13
Protection Type
Overload Protection

Product Description:

  Power Systems & Supplies, Tripp-Lite, 3.7kW Single-Phase Local Metered PDU, 208/230V (8 C13 & 2 C19), C20 / L6-20P Adapter, 12'' (3.66 m) Cord, 1U Rack-Mount, TAA
Explore all Tripp-Lite Parts Accessories
Add to Quote
Tripp-Lite PDUMH20HV Power Device
Tripp-Lite PDUMH20HV Power Device
Tripp-Lite PDUMH20HV Power Device
Tripp-Lite PDUMH20HV Power Device Tripp-Lite PDUMH20HV Power Device Tripp-Lite PDUMH20HV Power Device

Tripp-Lite Parts Accessory Model Overview

Products and parts from Tripp-Lite.
Tripp-Lite PDUMH20HV Power Device Overview

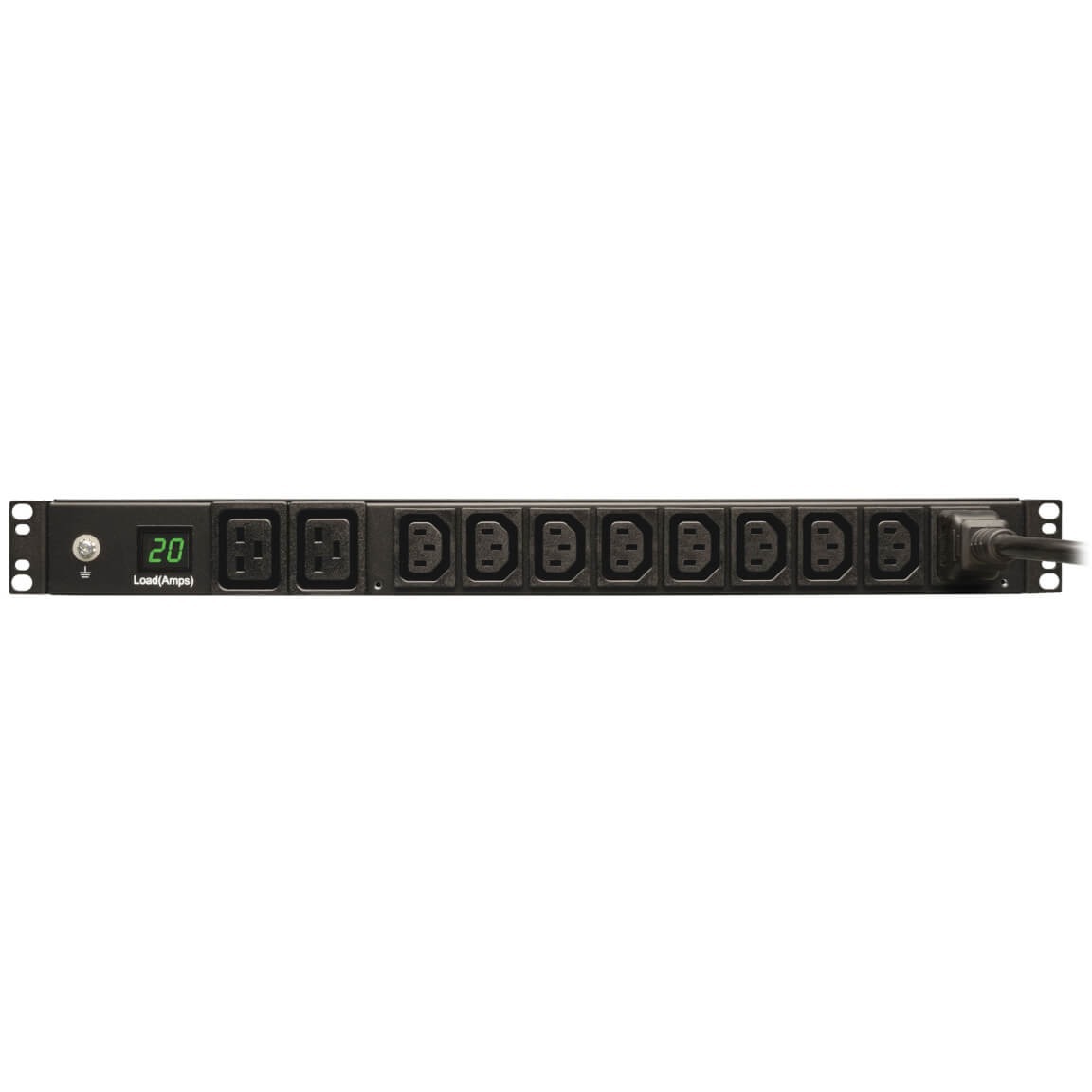

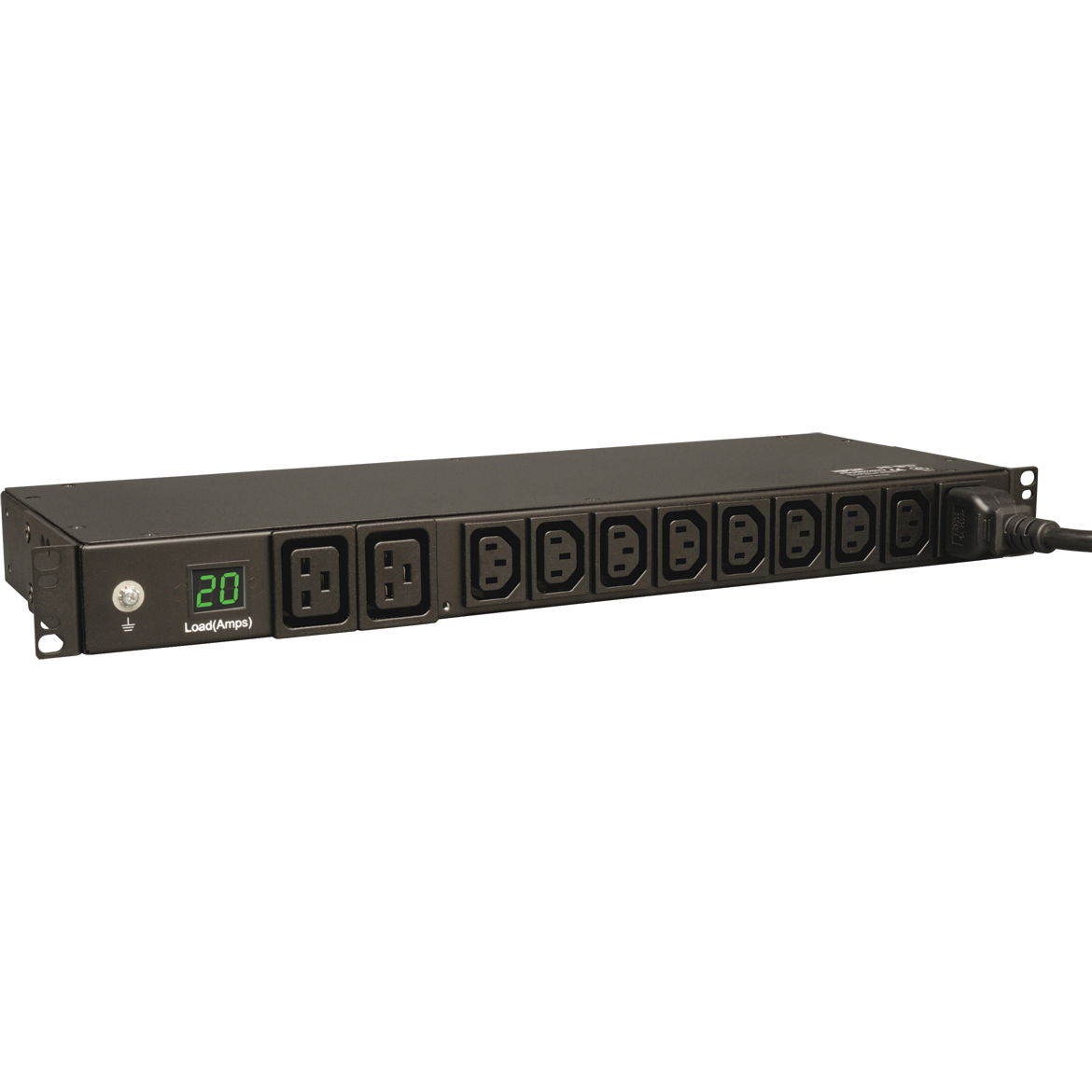

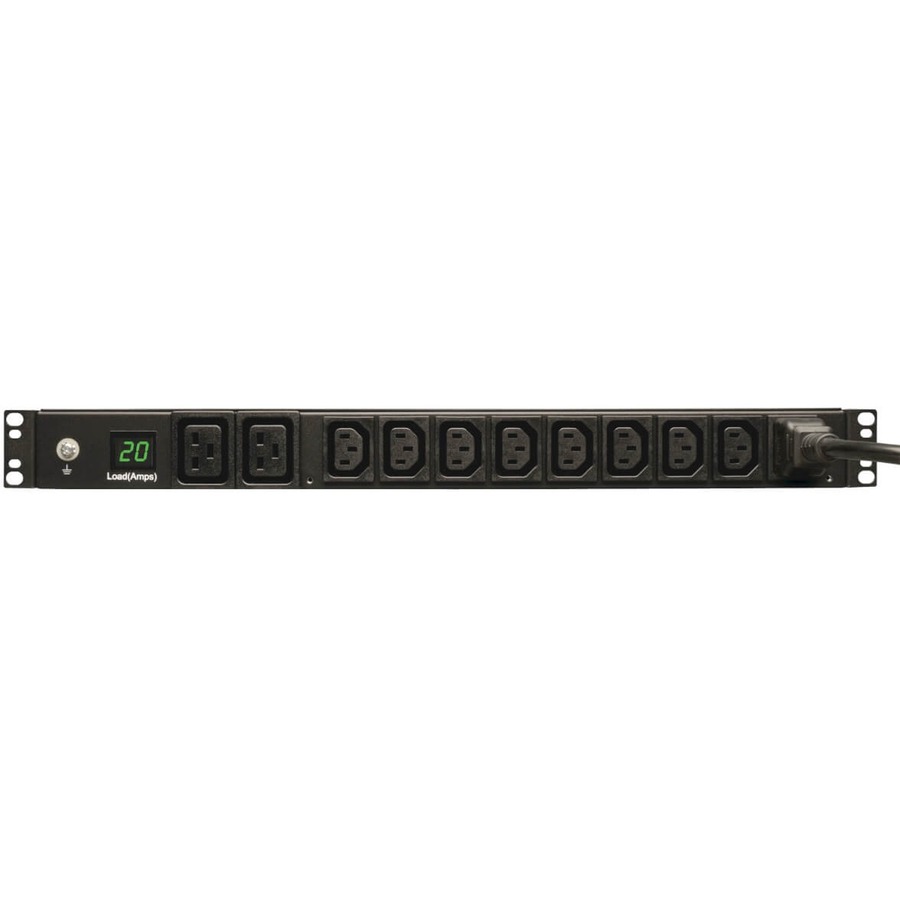

PDUMH20HV Metered, 1U rack PDU supports 20A maximum capacity at 208/240 & 230V (agency de-rated to 16 amps). Includes C20 inlet and detachable input cable with both C20 and L6-20P input plug options. 10 total output receptacles (8 C13 and 2 C19). Visual current meter tracks the output current of all outlets combined. Supports 1U rackmount installation in 19 inch 2 or 4 post racks. Included cord retention bracket keeps vital network equipment plugged in and continuously powered.

Technical Information
Plug/Connector Type:
  • IEC 60320 C20
  • NEMA L6-20P
Receptacle Type:
  • IEC 60320 C19
  • IEC 60320 C13
Receptacle Detail:
  • 2 x IEC 60320 C19
  • 8 x IEC 60320 C13
Protection Type:
Overload Protection
Power Description
Input Voltage:
230 V AC
Input Voltage Range:
200 V AC - 240 V AC
Output Voltage:
  • 208 V AC
  • 230 V AC
  • 240 V AC
Physical Characteristics
Mounting Orientation:
Horizontal
Mount Type:
Rack-mountable
Rack Height:
1U
Height:
1.8"
Width:
17.5"
Depth:
6.5"
Weight (Approximate):
6.80 lb
Miscellaneous
Package Contents:
  • Metered PDUMH20HV 10-Outlets PDU
  • Rackmount Brackets
  • Cord Retention Brackets
Environmentally Friendly:
Yes
Country of Origin:
Taiwan
TAA Compliant:
Yes
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0037332159014, 0803930103342, 0818242945467, 0974573824984, 0993246979592
UPC: 037332159014, 803930103342, 818242945467, 974573824984, 993246979592
EAN: 0037332159014, 0803930103342, 0818242945467, 0974573824984, 0993246979592
UNSPSC: 39121017
