Plug/Connector Detail:
2
Receptacle Detail:
8
Tripp-Lite PDUBHV20 Accessory
Part Number:
PDUBHV20
Model:
Parts
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.

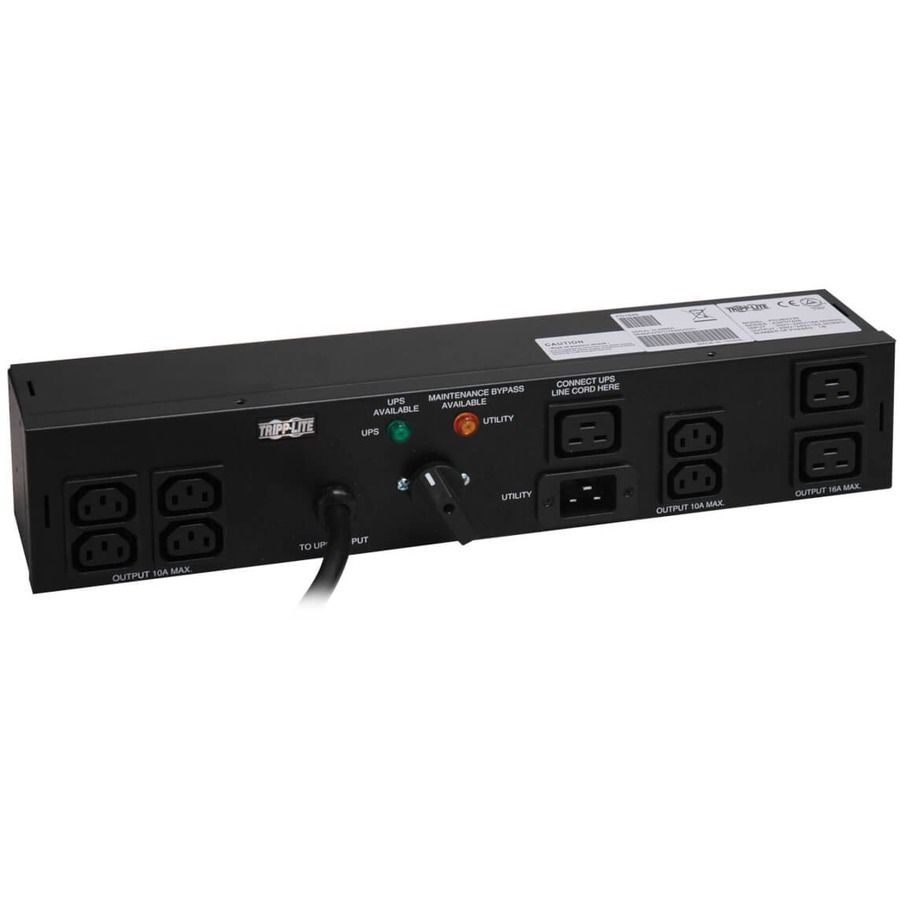

Tripp-Lite PDUBHV20 Accessory Overview
Tripp Lite's Hot-swap PDU systems enable live-replacement of standard UPS systems for maintenance with no interruption of connected server or networking loads. Dual input power cables support PDU connection to separate Utility and UPS power sources. Manual transfer switch with lighted status indicators controls the source of power to connected equipment between Utility and UPS. Set the switch to UPS during normal operation and connected equipment will receive full-time conditioned power from the UPS. Set the switch to Utility to momentarily power connected equipment from the Utility line cord and bypass the UPS while the UPS system is removed and replaced with a fresh one. Once the new UPS is up and running with all data and electrical connections restored, set the switch back to the UPS setting to once again provide fully-conditioned UPS power to connected equipment.
Technical Information
Power Description
Input Voltage:
230 V AC
Output Voltage:
240 V AC
Power Rating (VA):
3680 VA
Physical Characteristics
Mount Type:
Rack-mountable
Rack Height:
2U
Height:
3.4"
Width:
17.3"
Depth:
3"
Weight (Approximate):
7.70 lb
Miscellaneous
Package Contents:
- PDUBHV20 PDU Dual Srce Hot Swap 200-240V 16A 8 Out
- 2U Mounting Brackets
- Set of 2 x C19-C20 Interconnect Cables
- User Manual with Warranty Information
Additional Information:
Input Receptacle: C20
Output Receptacles:
- 2 x C19
- 6 x C13
Environmentally Friendly:
Yes
Country of Origin:
China
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN:
0037332153913
UPC:
037332153913
EAN:
0037332153913
UNSPSC:
39121017
Get help from a Barcoding Expert!
The Tripp-Lite PDUBHV20 Accessory is also known as
PDUBHV20
