Tripp-Lite PDU3MV6L2120LV Accessory

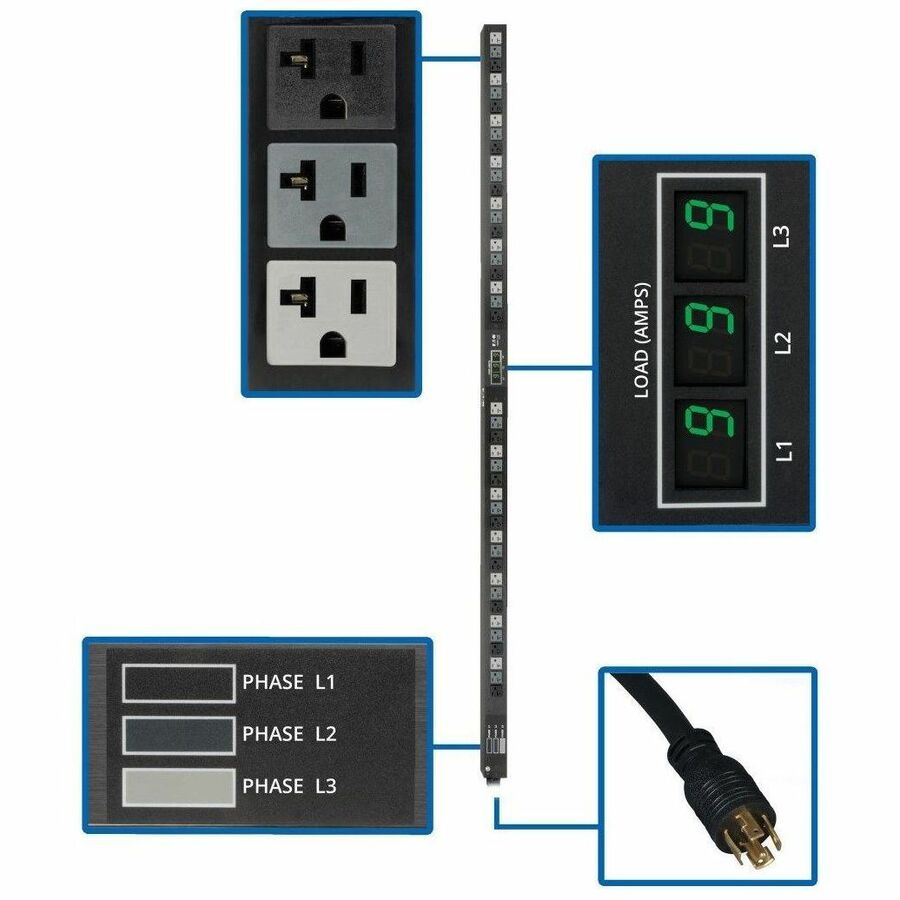

Tripp-Lite - Tripp Lite PDU 3-Phase Metered 120V 5.7 kW 42 5-15/20R L21-20P 0URM - 42 x NEMA 5-15/20R - 5.70 kVA - Vertical Rackmount, Toolless-mount
  • Metered 5.7kW 3 Phase 120V output PDU; 70 in. / 178cm 0U vertical rackmount
  • Reports load level per-phase via built in current meters
  • NEMA L21-20P (3P+N+E) 208V 3 phase input; 6 ft. / 1.8m line cord
  • 42 NEMA 5-15/20R outlets (120V), Toolless button-mount installation; cord retention brackets included
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Read More

Need a different version? See all Tripp-Lite Parts Accessories

$683.02
In Stock
Add to Quote
Add to My Shopping List Add to Compare
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite PDU3MV6L2120LV Accessory Overview

Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

Technical Information
Plug/Connector Type:
NEMA L21-20P
Receptacle Type:
NEMA 5-15/20R
Receptacle Detail:
42 x NEMA 5-15/20R
Power Description
Input Voltage:
230 V AC
Output Voltage:
120 V AC
Power Rating (Watt):
5700 W
Physical Characteristics
Mounting Orientation:
Vertical
Mount Type:
Rack-mountable
Height:
70"
Width:
1.9"
Depth:
2.2"
Weight (Approximate):
12.57 lb
Miscellaneous
Package Contents:
  • 3-Phase Metered PDU
  • Cord Retention Brackets
  • Rack Mounting Brackets
  • User Manual
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
Taiwan
TAA Compliant:
Yes
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0037332163899
UPC: 037332163899
EAN: 0037332163899
UNSPSC: 39121017
