Tripp-Lite P960-001-M2-NE Accessory

Part Number: P960-001-M2-NE
Model: Parts
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$16.76

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Product Color
Green
Weight (Approximate)
1.76 oz
Package Contents
M.2 NGFF SSD (B-Key) to 2.5 in. SATA Open-Frame Housing Adapter Mounting Hardware Screw Driver Owner's Manual
Additional Information
ENVIRONMENTAL Operating Temperature Range: 50 to 122°F (10 to 50°C) Storage Temperature Range: 32 to 149°F (0 to 65°C) Relative Humidity: 10% to 80% RH, Non-Condensing CONNECTIONS Side A - Connector 1 M.2 NGFF SATA (B-Key) Side B - Connector 1 22 PIN SATA + POWER (FEMALE) FEATURES & SPECIFICATIONS Driver Required No Technology SATA/eSATA

Product Description:

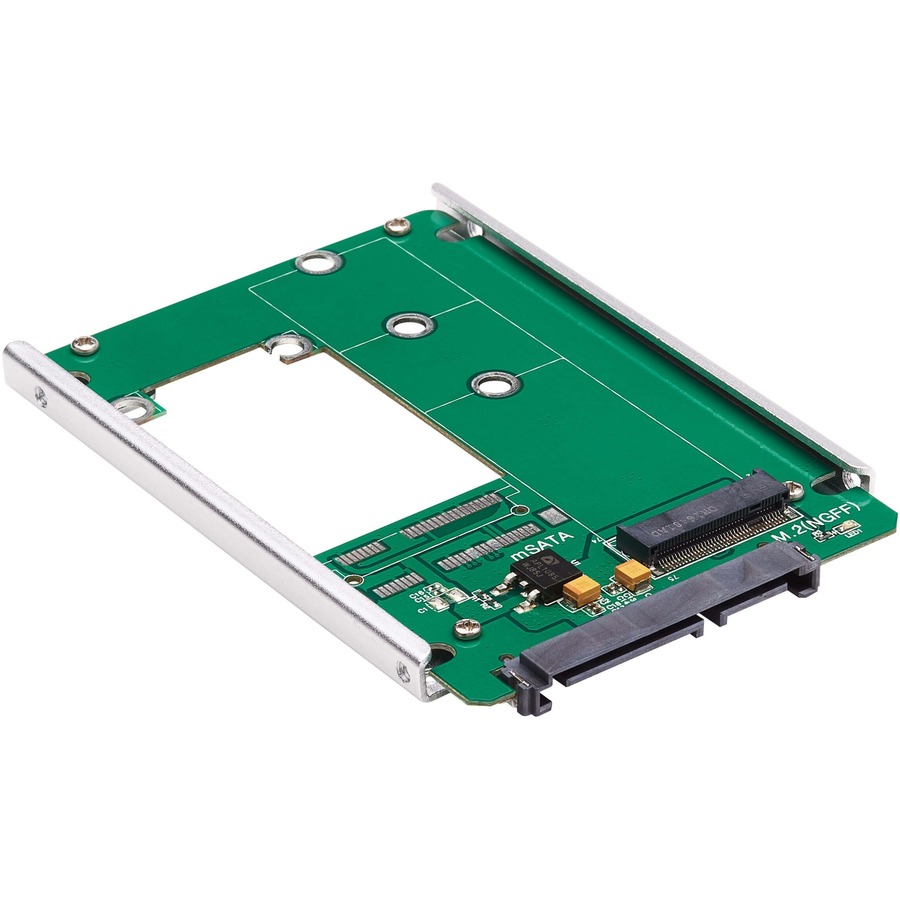

  Tripp Lite M.2 NGFF SSD (B-Key) to 2.5in SATA Open Frame Housing Adapter
Explore all Tripp-Lite Parts Accessories
Add to Quote
Tripp-Lite P960-001-M2-NE Accessory
Tripp-Lite P960-001-M2-NE Accessory

Tripp-Lite Parts Accessory Model Overview

Products and parts from Tripp-Lite.
Tripp-Lite P960-001-M2-NE Accessory Overview

SSD to SATA Adapter Improves Performance of Your SATA Computer

This adapter converts your M.2 NGFF SSD drive into a 2.5-inch SATA SSD for use with a standard SATA-enabled computer. The open-frame P960-001-M2-NE supports mount drive heights of 2242, 2260 and 2280, as well as data transfer rates up to 6 Gbps. Adding an M.2 NGFF SSD to your application can reduce your computer's power consumption and boost performance.

Open-Frame Housing Helps Keep the Intricate Electronic Components Cool

The open frame is designed for maximum heat dissipation, keeping the adapter cool to boost its performance potential. To share data, simply connect the SATA drive to the M.2 NGFF connector and then the SATA connector to your computer's SATA port.

Just Plug and Play for Immediate Use Right Out of the Package

No software, drivers or external power supply is required. Mounting hardware is included. The P960-001-M2-NE is compatible with all major operating systems, including Windows, Mac and Linux.

Physical Characteristics
Product Color:
Green
Weight (Approximate):
1.76 oz
Miscellaneous
Package Contents:
  • M.2 NGFF SSD (B-Key) to 2.5 in. SATA Open-Frame Housing Adapter
  • Mounting Hardware
  • Screw Driver
  • Owner's Manual
Additional Information:

ENVIRONMENTAL

  • Operating Temperature Range: 50 to 122°F (10 to 50°C)
  • Storage Temperature Range: 32 to 149°F (0 to 65°C)
  • Relative Humidity: 10% to 80% RH, Non-Condensing

CONNECTIONS

  • Side A - Connector 1 M.2 NGFF SATA (B-Key)
  • Side B - Connector 1 22 PIN SATA + POWER (FEMALE)

FEATURES & SPECIFICATIONS

  • Driver Required No
  • Technology SATA/eSATA
Certifications & Standards:
  • CE
  • FCC
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • REACH
  • WEEE
Country of Origin:
China
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0037332242600, 0995475821284, 0995477142905
UPC: 037332242600, 995475821284, 995477142905
EAN: 0037332242600, 0995475821284, 0995477142905
UNSPSC: 43211600
