Tripp-Lite P166-001-A Products

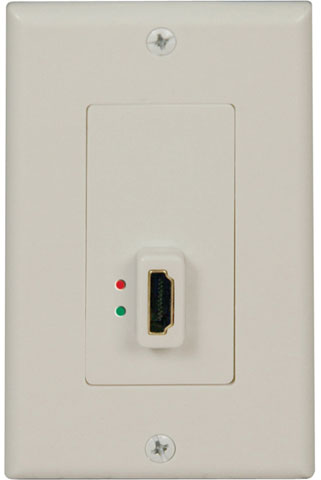

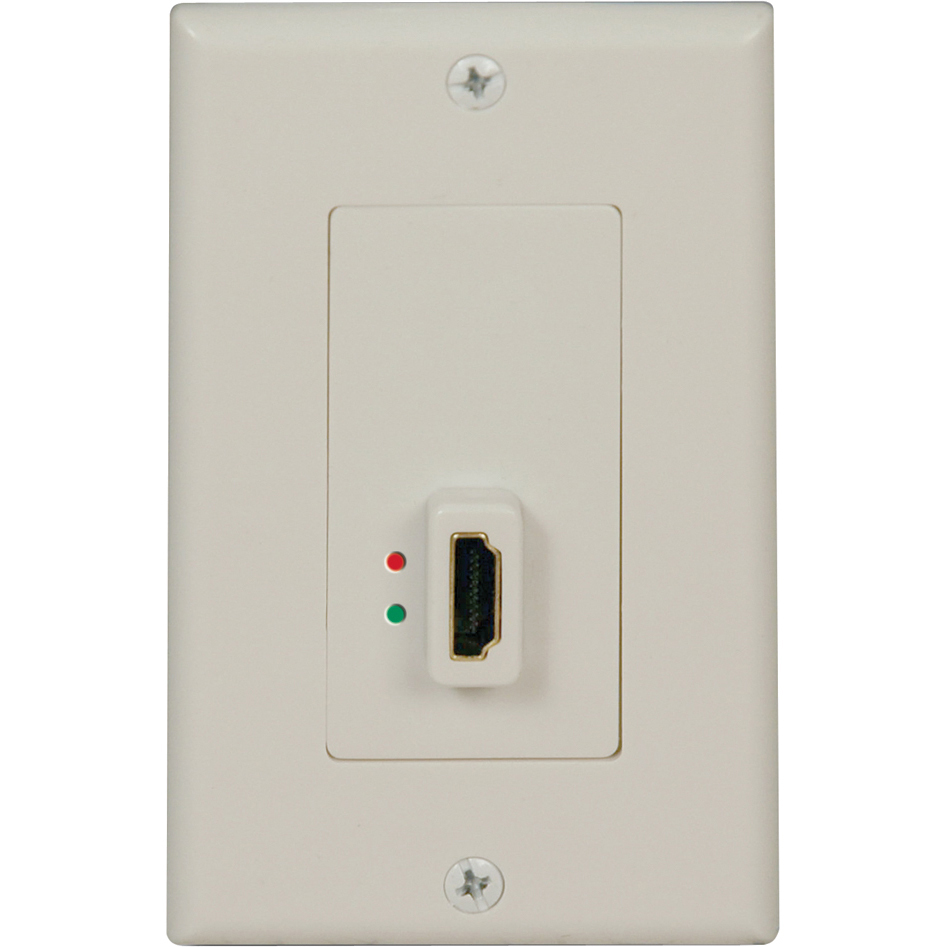

Tripp-Lite - Tripp Lite HDMI Display-Side Wallplate with Active Signal Booster F/F - 2 x Socket(s) - HDMI Video - White
  • Extend a 1080p (24Hz) HDMI signal up to 150 ft. from the source
  • When extending a 1080p (24Hz) signal more than 75 ft., use cable made with 24Awg wiring, such as the P568-100-HD
  • 24Awg HDMI cable is also needed when extending a 3D signal more than 50 ft.. A 3D signal can be extended up to 125 ft. using 24Awg HDMI cable
  • Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
Read More

Need a different version? See all Tripp-Lite Parts Accessories

$41.42
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Tripp-Lite P166-001-A Products
Tripp-Lite P166-001-A Products
Tripp-Lite P166-001-A Products Tripp-Lite P166-001-A Products
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite P166-001-A Products Overview

Tripp Lite's P166-001-A HDMI Display-side Wallplate with Signal Booster increases the distance a 1080p (24Hz) signal can be transmitted beyond the recommended 16 ft. (5 m.). It supports video resolutions up to 1080p, and a maximum distance of 150 ft. from the source. Use P568-Series HDMI cables in most applications. When extending a 1080p (24Hz) signal more than 75 ft., use cable made with 24Awg wiring, such as the P568-100-HD. (Lengths over 100 ft. are available from Tripp Lite as a custom order) 24Awg HDMI cable is also needed when extending a 3D signal more than 50 ft.. A 3D signal can be extended up to 125 ft. using 24Awg HDMI cable. Simply connect the longer cable between the source and the P166-001-A, and the shorter cable (16 ft. or less) between the adapter and the monitor. Software or drivers are not required. HDCP compliant.

Technical Information
Total Number of Sockets:
2
Mount Type:
Wall Mount
Features:
  • Extend a 1080p (24Hz) HDMI signal up to 150 ft. from the source
  • When extending a 1080p (24Hz) signal more than 75 ft., such as the P568-100-HD
  • 24Awg HDMI cable is also needed when extending a 3D signal more than 50 ft.. A 3D signal can be extended up to 125 ft. using 24Awg HDMI cable
  • Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
Interfaces/Ports
Number of HDMI Ports:
2
Physical Characteristics
Product Color:
White
Miscellaneous
Package Contents:
  • HDMI Display-side Wallplate
  • Signal Booster
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0037332141033, 0803929461668
UPC: 037332141033, 803929461668
EAN: 0037332141033, 0803929461668
UNSPSC: 31162307
