Tripp-Lite OMNIVS800 UPS

Tripp-Lite UPS - Tripp Lite UPS 800VA 475W Battery Back Up Tower AVR 120V USB RJ11 RJ45 - Tower - 4 Hour Recharge - 3.50 Minute Stand-by - 110 V AC Input - 120 V AC Output - 6 x NEMA 5-15R, 1 x NEMA 5-15R
  • 800VA tower 120V line interactive UPS
  • Corrects brownouts as low as 89V without using battery power
  • 6 UPS battery supported outlets, 1 surge-only outlet
  • USB port, TEL/DSL/ethernet protection
  • NEMA 5-15P input plug and 7 NEMA 5-15R outlets
Read More
$260.11
In Stock
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Tripp-Lite UPS Accessory Model Overview
Tripp-Lite UPS and Power Supply products.

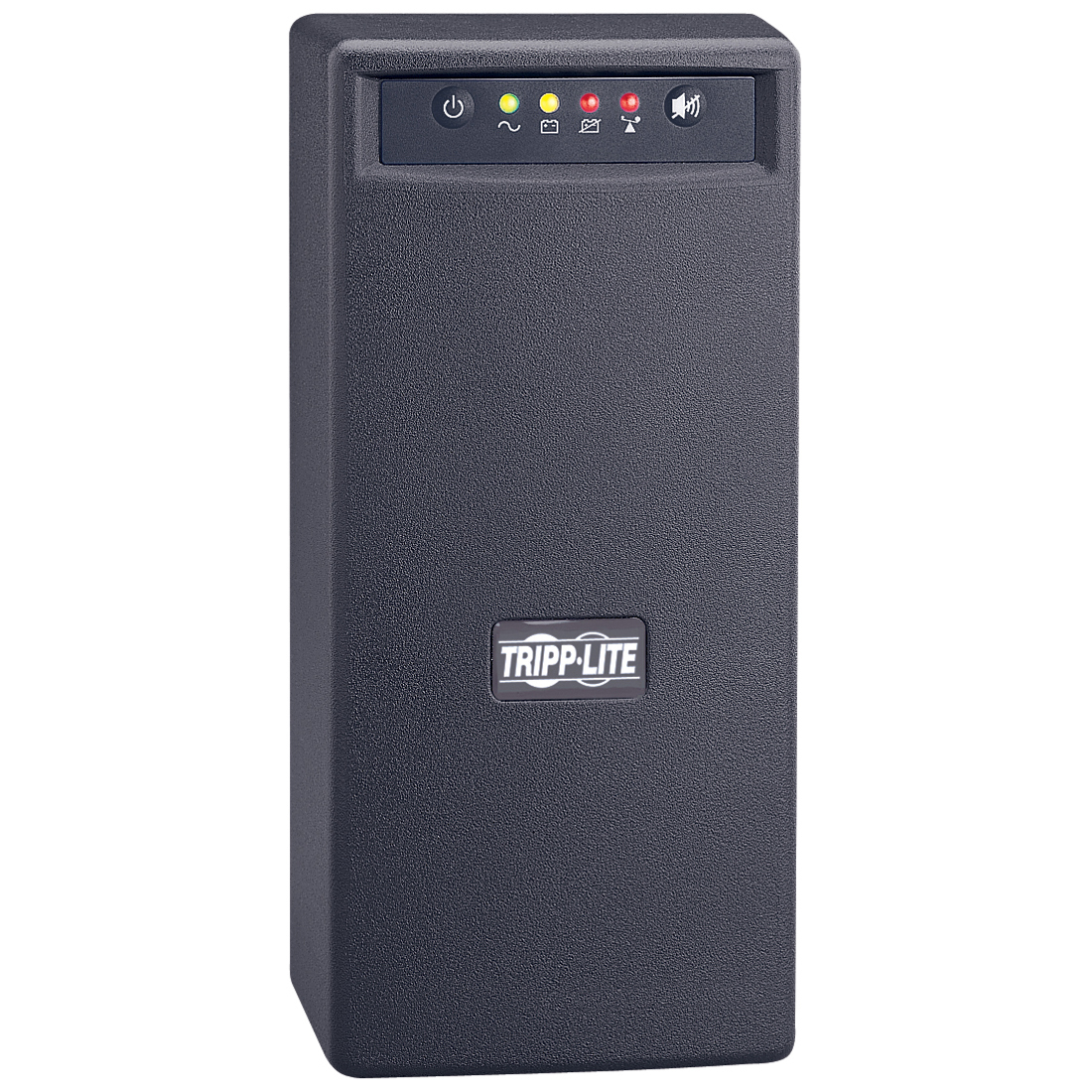

Tripp-Lite OMNIVS800 UPS Overview

Tripp Lite's OMNIVS800 line interactive UPS system offers voltage regulation, surge suppression and long lasting battery support for personal computers, inter-networking equipment and other sensitive electronics. Internal UPS circuits support entry level PC systems for up to 60 minutes during power failures so that connected equipment can be shut down without data loss. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 89 volts back to usable levels without using battery power. Offers complete desktop power protection in an attractive black tower configuration. Includes 6 battery supported outlets for computer, monitor and one vital system peripheral, plus 1 additional surge suppression-only outlet for printers and other system accessories not requiring battery support. HID-compliant USB port enables optional unattended system shutdown without data loss in case of extended power failure; USB cable included. HID-compliant USB port also enables direct integration with built-in power management and auto-shutdown features of Windows and MAC OS X. PowerAlert software available via free download from www.tripplite.com. Built-in single line phone/Ethernet suppression jacks protect modem, fax machine, cordless phone or other peripheral with a standard dialup, DSL, or data line connection. Built-in audible alarm and 4 front panel LEDs indicate line power status, battery power status, battery low/replace status and voltage boost operation. 800VA/475 watt power handling ability supports entry-level PCs, network workstations, point-of-sale equipment, small business phone systems, audio/video equipment and home theater systems. Offers 3.5 minutes battery runtime with a full load of 800VA and 11.5 minutes with a half load of 400VA. Supports battery replacement via built-in access panel. $200,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)

Technical Information
Plug/Connector Type:
NEMA 5-15P
Receptacle Type:
NEMA 5-15R
Receptacle Detail:
  • 6 x NEMA 5-15R
  • 1 x NEMA 5-15R
Dataline Protection:
RJ-45
Cord Length:
6 ft
Power Description
Load Capacity:
800 VA/475 W
Input Voltage:
110 V AC
Output Voltage:
120 V AC
Waveform Type:
Pulse-width Modulated Sine Wave
Surge Energy Rating:
480 J
Management
Alarm:
  • On Battery
  • Utility Power Failure
Controls/Indicators
Status Indicators:
  • Line Power
  • Battery Power
  • Battery Low/Replace
  • Voltage Regulation operation
Interfaces/Ports
USB:
Yes
Battery Information
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
3.50 Minute
Backup/Run Time (Half Load):
11.50 Minute
Battery Life:
6 Year
Typical Battery Recharge Time:
4 Hour
Environmental Conditions
Maximum Operating Temperature:
122°F (50°C)
Physical Characteristics
Product Color:
Black
Height:
10.8"
Width:
5.3"
Depth:
7.3"
Form Factor:
Tower
Weight (Approximate):
21.20 lb
Miscellaneous
Package Contents:
  • OMNIVS800 800VA UPS
  • USB and telephone cable
  • User manual with warranty information
Additional Information:
  • Automatic Voltage Regulation
  • Regulates brownouts as low as 83 volts back to usable levels without using battery power
  • Supports battery replacement via built-in access panel
Certifications & Standards:
  • UL1778 (USA)
  • cUL (Canada)
  • NOM (Mexico)
  • Emissions: FCC Class B
  • Telecommunications: FCC Part 68 / Industry Canada
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0037332120953, 0373321209538, 0818214609663
UPC: 037332120953, 373321209538, 818214609663
EAN: 0037332120953, 0373321209538, 0818214609663
UNSPSC: 39121011
