Tripp-Lite OMNIVS1500XL Products

Part Number: OMNIVS1500XL
Model: Parts
Add to My Shopping List Add to Compare
$326.44
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Plug/Connector Type
NEMA 5-15P
Receptacle Type
NEMA 5-15R
Receptacle Detail
2 x NEMA 5-15R6 x NEMA 5-15R
Dataline Protection
RJ-45

Product Description:

  Tripp Lite UPS 1500VA 940W Battery Back Up Tower AVR 120V RJ11 RJ45 - Tower - 4 Hour Recharge - 5 Minute Stand-by - 110 V AC Input - 120 V AC Output - 2 x NEMA 5-15R, 6 x NEMA 5-15R
Explore all Tripp-Lite Parts Accessories
Add to Quote
Tripp-Lite OMNIVS1500XL Products
Tripp-Lite OMNIVS1500XL Products
Tripp-Lite OMNIVS1500XL Products
Tripp-Lite OMNIVS1500XL Products Tripp-Lite OMNIVS1500XL Products Tripp-Lite OMNIVS1500XL Products

Tripp-Lite Parts Accessory Model Overview

Products and parts from Tripp-Lite.
Tripp-Lite OMNIVS1500XL Products Overview

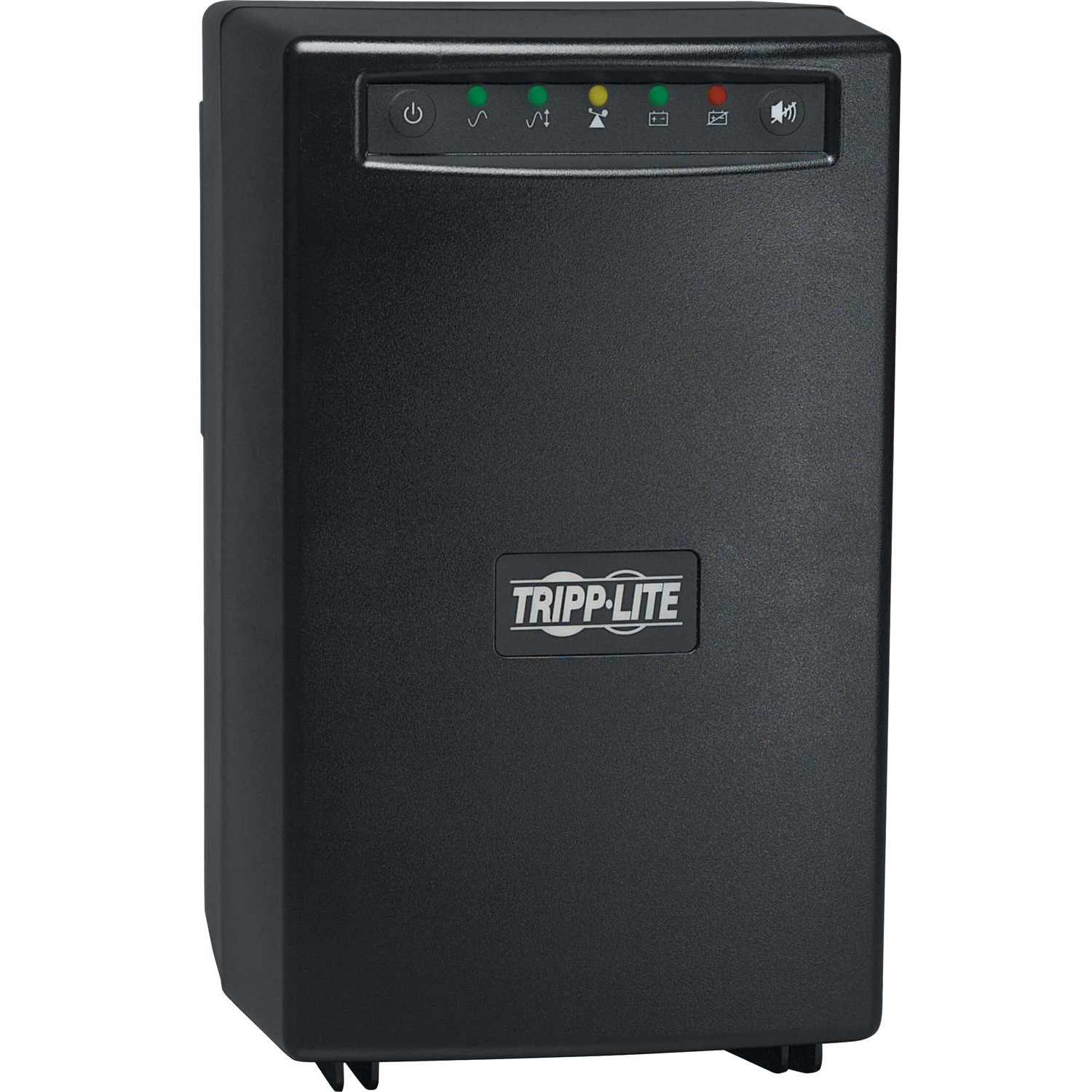

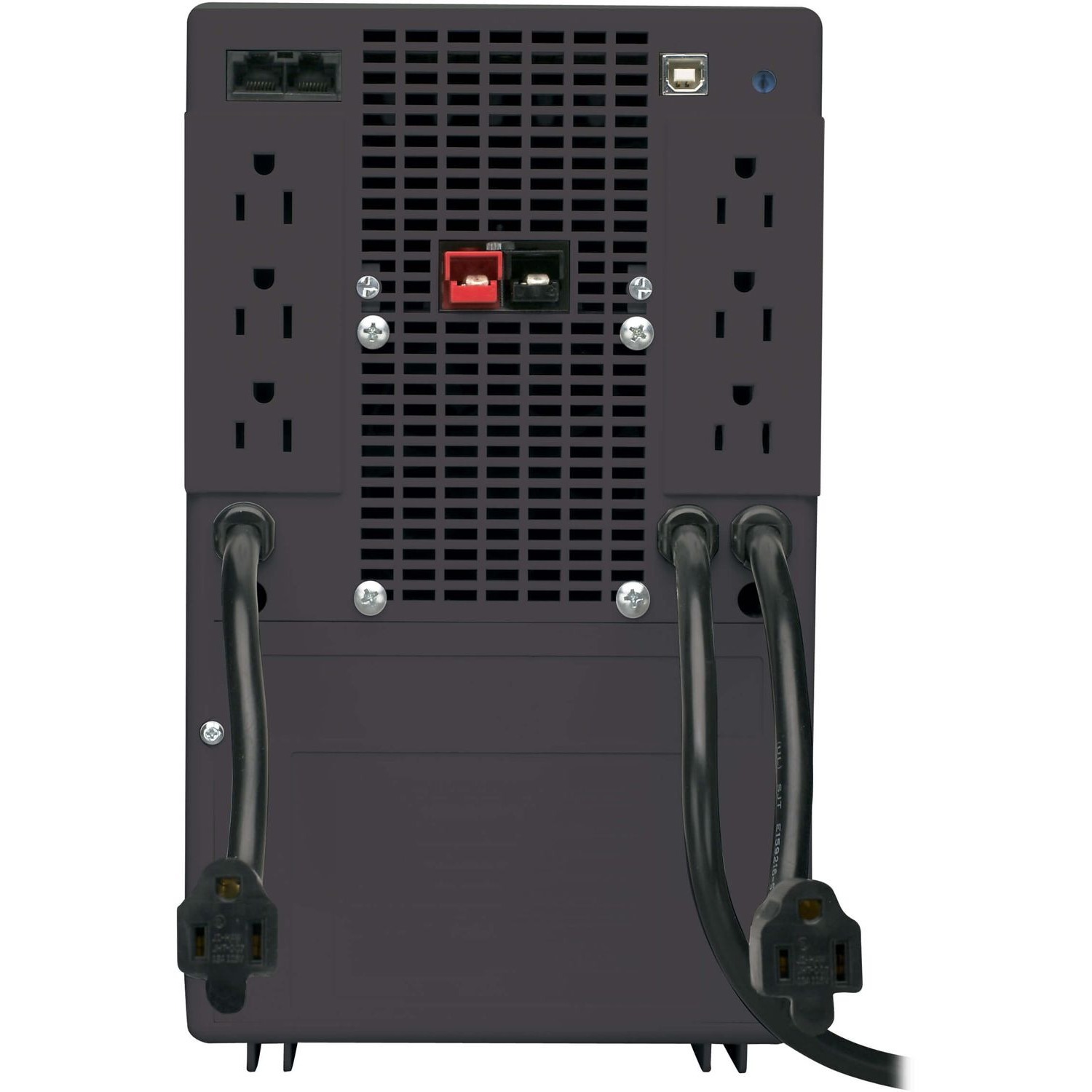

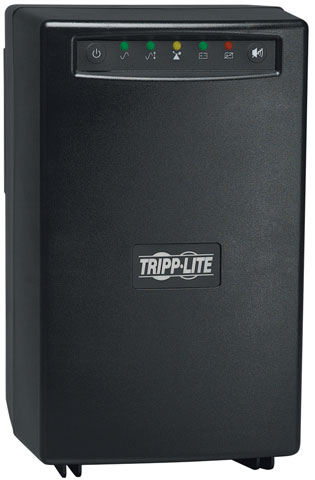

Line Interactive UPS system with eight outlets offers voltage regulation, surge suppression and long-lasting, expandable battery support for personal computers, Internet-working equipment and other sensitive electronics. Internal UPS circuits support entry level PC systems for up to 75 minutes during power failures so that connected equipment can be shut down without data loss. Automatic Voltage Regulation circuits regulate brownouts as low as 75 and overvoltages up to 147 volts back to usable 120V levels without using battery power. Includes six battery supported outlets for computer, monitor and one vital system peripheral, plus two additional surge suppression-only outlets for printers and other system accessories not requiring battery support. Built-in dataline suppression offers protection for equipment with single-line telephone/DSL or network Ethernet connection. Offers 5 minute battery runtime with a full load of 1500VA and 14 minutes with a half load of 750VA.

More from the Manufacturer

Technical Information
Plug/Connector Type:
NEMA 5-15P
Receptacle Type:
NEMA 5-15R
Receptacle Detail:
  • 2 x NEMA 5-15R
  • 6 x NEMA 5-15R
Dataline Protection:
RJ-45
Cord Length:
6 ft
Transfer Time:
4 ms
Power Description
Load Capacity (VA):
1500 VA
Load Capacity (Watt):
940 W
Input Voltage:
110 V AC
Output Voltage:
120 V AC
Surge Energy Rating:
480 J
Management
Alarm:
On Battery
Controls/Indicators
Status Indicators:
4 front panel LEDs indicate line power status, battery power status, battery low/replace status and voltage regulation operation
Interfaces/Ports
USB:
Yes
Battery Information
Backup/Run Time (Full Load):
5 Minute
Backup/Run Time (Half Load):
14 Minute
Battery Life:
6 Year
Typical Battery Recharge Time:
4 Hour
Hot Swappable:
Yes
Environmental Conditions
Maximum Operating Temperature:
122°F (50°C)
Physical Characteristics
Color Family:
Black
Product Color:
Black
Height:
11.8"
Width:
7.3"
Depth:
7.5"
Form Factor:
Tower
Weight (Approximate):
32.20 lb
Miscellaneous
Package Contents:
  • OMNIVS1500XL Line Interactive UPS
  • USB and telephone cable
  • User manual with warranty information
Additional Information:
  • OMNIVS1500XL Uninterruptible Power Supply offers voltage regulation, surge suppression and long lasting battery support
  • Supports entry level PCs up to 75 minutes during blackouts to enable shutdown without data loss
  • Regulates brownouts as low as 75 and overvoltages to 147V back to usable 120V nominal levels without using battery power
  • 6 UPS battery supported outlets, plus 2 additional surge suppression-only outlets
  • USB port and cable enables UPS monitoring and unattended shutdown in the case of extended power failure
  • PowerAlert software available via free download from www.tripplite.com
  • Dataline surge suppression protects standard dialup/DSL or ethernet line connection
  • Audible alarm and 4 front panel LEDs offer complete UPS and line power status information
  • 1500VA power handling ability supports a variety of sensitive electronic equipment
  • 5 minutes full load runtime (1500VA), 14 minutes half load runtime (750VA)
  • Runtime is further expandable with the addition of BP24V14 external battery pack
  • Supports hot swappable battery replacement via built-in access panel
  • $200,000 connected equipment insurance (USA & Canada Only)
  • 2 year warranty
Certifications & Standards:
  • UL1778 (USA)
  • cUL (Canada)
  • FCC Class B (emissions)
  • NOM (Mexico)
  • FCC Part 68 / Industry Canada (telecommunications)
Recycled:
No
Assembly Required:
No
Country of Origin:
Vietnam
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:

$200,000 connected equipment insurance (USA, Puerto Rico & Canada Only)

Item Numbers
GTIN: 0012300075046, 0013297529024, 0037332119735, 0373321197354, 0562698522658, 0706919619219, 0818240199138, 0818257819746, 0999563052086
UPC: 012300075046, 013297529024, 037332119735, 373321197354, 562698522658, 706919619219, 818240199138, 818257819746, 999563052086
EAN: 0012300075046, 0013297529024, 0037332119735, 0373321197354, 0562698522658, 0706919619219, 0818240199138, 0818257819746, 0999563052086
UNSPSC: 39121011
