Tripp-Lite OMNI650LCD Power Device

Tripp-Lite - Tripp Lite UPS 650VA 350W Battery Back Up Tower LCD AVR 120V USB - 8 Hour Recharge - 3.20 Minute Stand-by - 110 V AC Input - 120 V AC Output - 8 x NEMA 5-15R
  • 650VA tower 120V line interactive UPS with LCD display
  • Corrects brownouts as low as 89V without using battery power

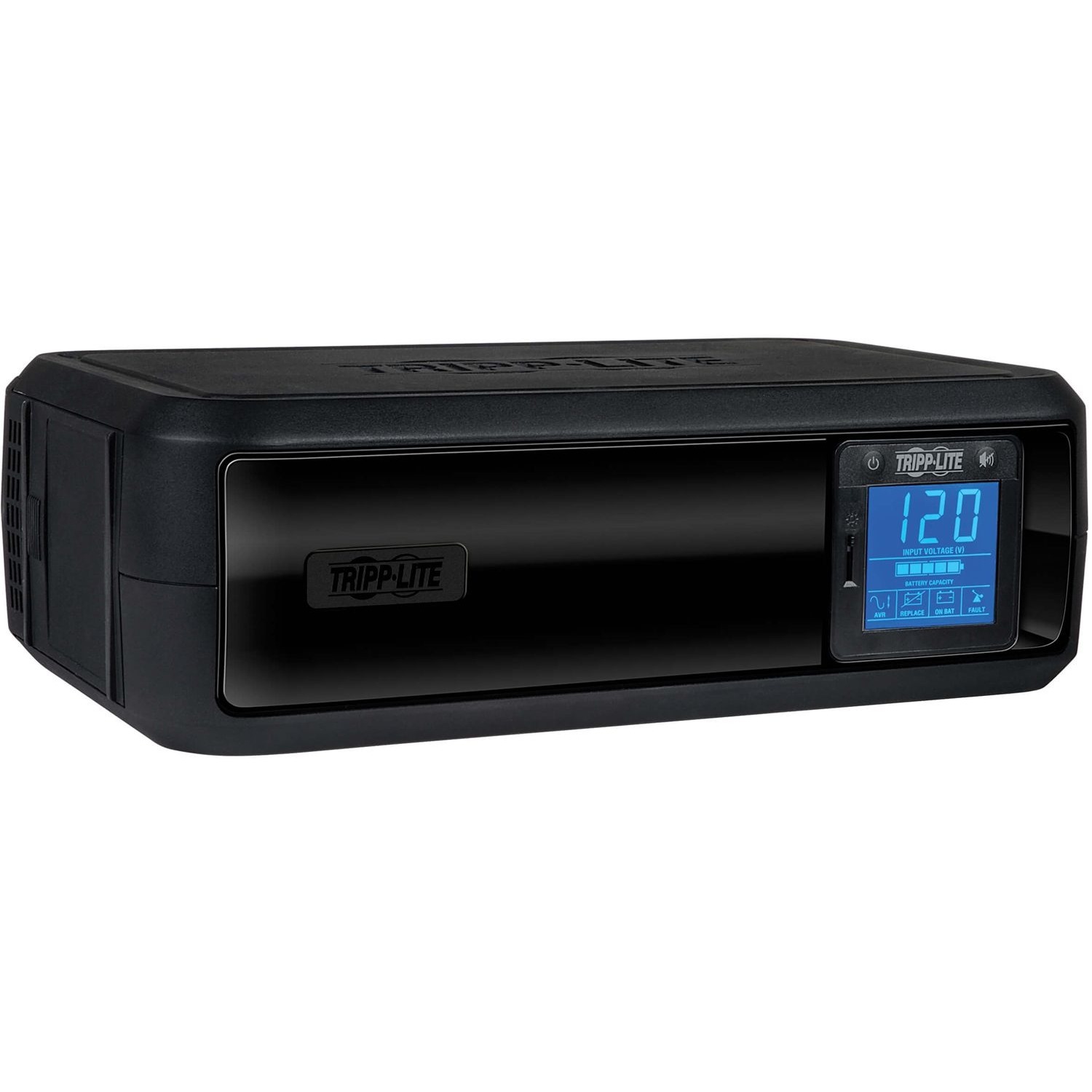

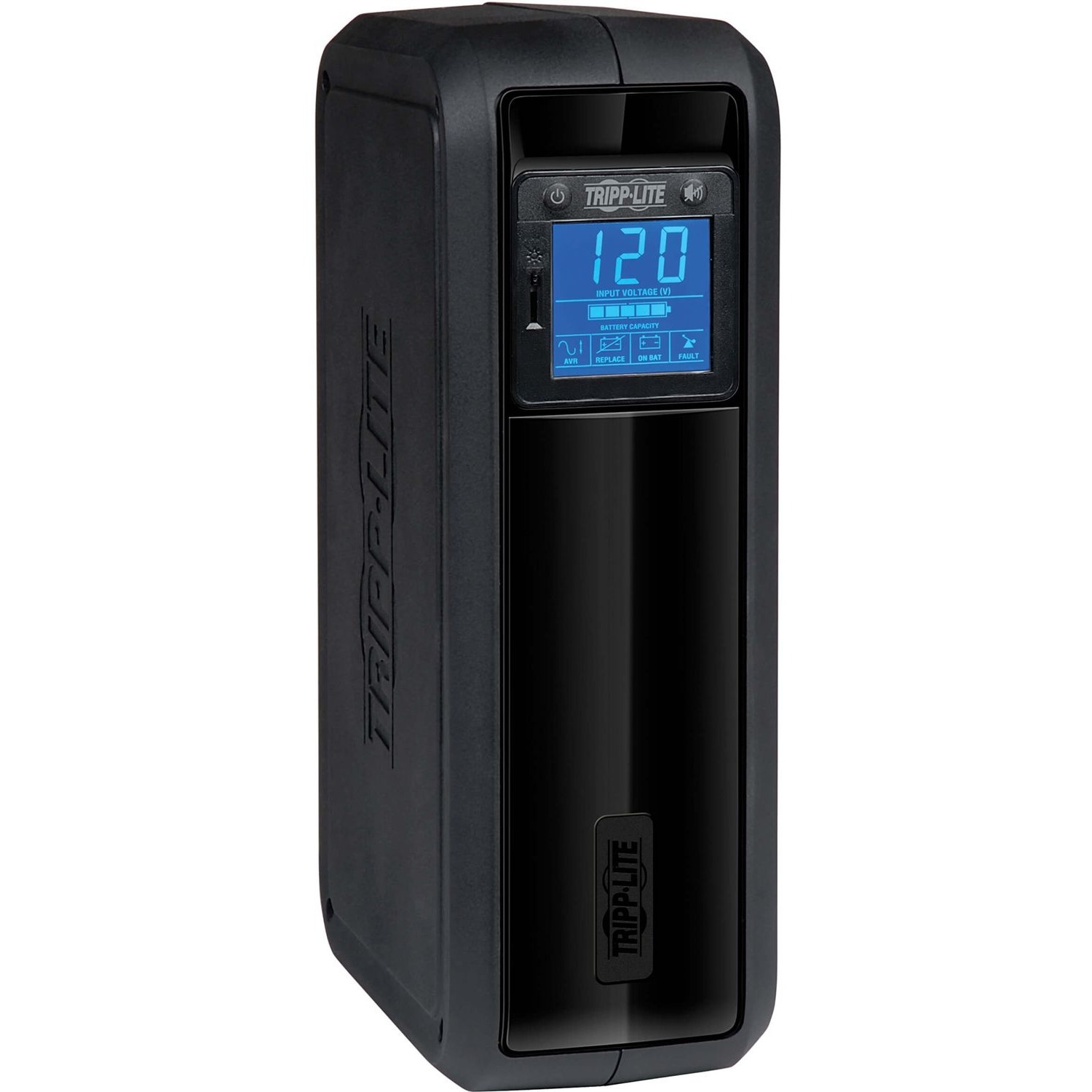

  • LCD screen reports input voltage, battery charge and UPS status
  • USB port, Surge-only outlets, 97% efficiency

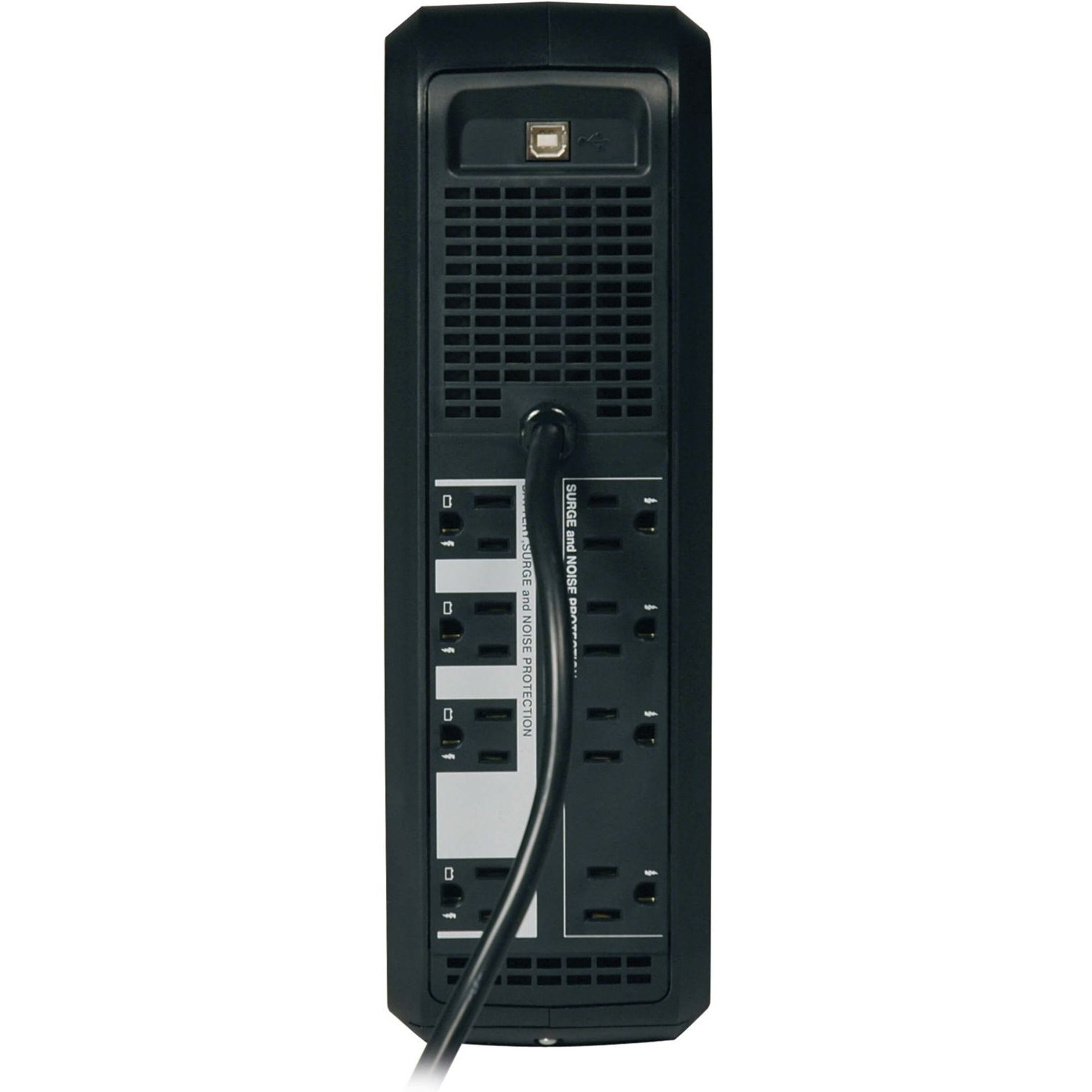

  • NEMA 5-15P input plug and 8 NEMA 5-15R outlets
Read More
$214.20
In Stock
Add to Quote
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite OMNI650LCD Power Device Overview

Line-Interactive Digital UPS System offers voltage regulation, surge suppression and long-lasting battery support for personal computers and more. Internal UPS circuits support entry-level PCs for up to 40 minutes or individual VCR/DVR components for as long as 2 hours during power failures. Prevents data loss, viewing interruptions and loss of programming. AVR circuits regulate brownouts as low as 89v back to usable levels without consuming battery power. Includes four battery-supported/surge-protected outlets, plus four additional surge suppression-only outlets for items not requiring battery support. USB port enables optional unattended system shutdown. Includes cable. HID-compliant USB interface enables full integration with built-in power management and auto shutdown of Windows, Mac OS X and Linux. Offers three-minute battery runtime with full load of 650VA/350W and 12 minute with half load of 325VA/175W.

Technical Information
Plug/Connector Type:
NEMA 5-15P
Receptacle Type:
NEMA 5-15R
Receptacle Detail:
8 x NEMA 5-15R
Protection Type:
Brownout
Cord Length:
6 ft
Power Description
Load Capacity:
650 VA/350 W
Input Voltage:
110 V AC
Output Voltage:
120 V AC
Waveform Type:
Pulse-width Modulated Sine Wave
Surge Energy Rating:
480 J
Management
Alarm:
Self-test Operation
Controls/Indicators
Status Indicators:
  • Input Voltage : Shows actual incoming voltage in real time
  • Battery Charge : Shows approximate charge available on the battery
  • Automatic Voltage Regulation (AVR) : Illuminates to indicate the UPS is automatically regulating incoming voltage without draining battery power
  • Battery Recharge/Replace : Illuminates to indicate the UPS batteries need to be recharged or replaced (following a self-test)
  • Battery Backup : Illuminates to indicate that the UPS is supplying battery power to connected equipment
  • Output Load Level : Illuminates when the electrical load of connected equipment exceeds the capacity of the UPS
Interfaces/Ports
USB:
Yes
Battery Information
Backup/Run Time (Full Load):
3.20 Minute
Backup/Run Time (Half Load):
12 Minute
Typical Battery Recharge Time:
8 Hour
Environmental Conditions
Maximum Operating Temperature:
122°F (50°C)
Physical Characteristics
Product Color:
Black
Height:
3.7"
Width:
12"
Depth:
7.2"
Weight (Approximate):
14.60 lb
Miscellaneous
Package Contents:
  • OmniSmart 650 VA Digital UPS
  • OMNI650LCD Digital UPS System
  • Manual with warranty information
Recycled:
No
Assembly Required:
No
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:

2-year warranty; $200,000 connected equipment insurance (USA & Canada Only).

Item Numbers
GTIN: 0037332126139, 0172302771664, 0995479833665, 4923213146715
UPC: 037332126139, 172302771664, 743406322931, 995479833665
EAN: 0037332126139, 0172302771664, 0995479833665, 4923213146715
UNSPSC: 39121011
