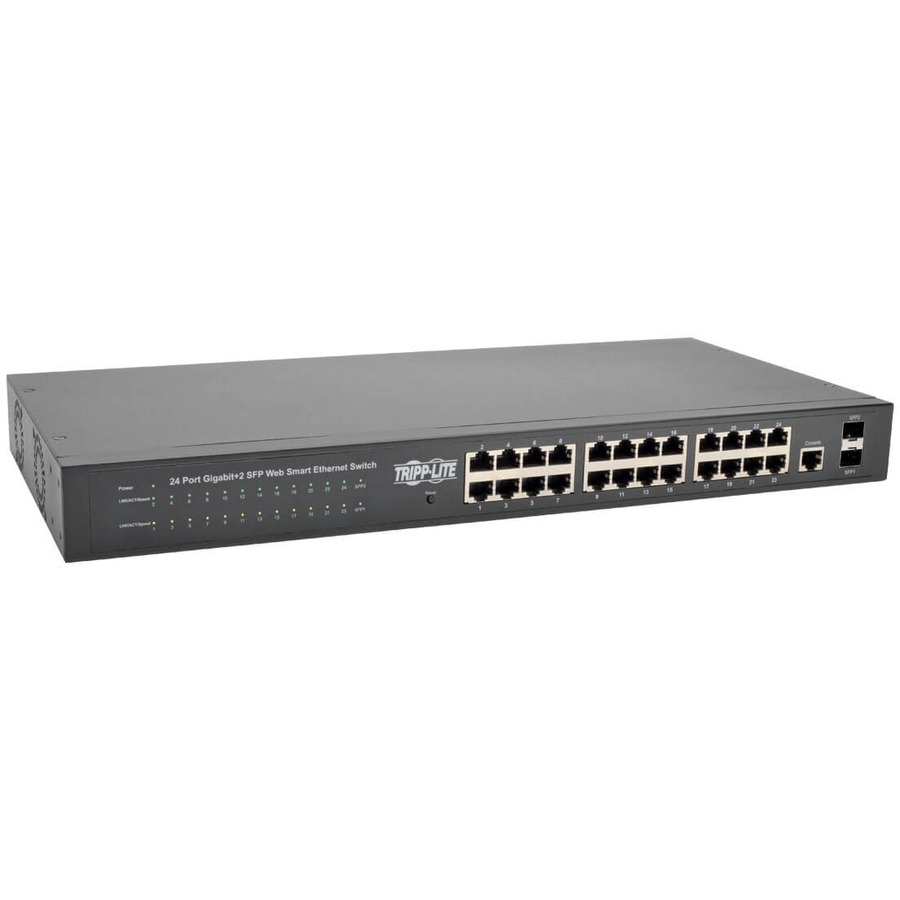

Tripp-Lite NGS24C2 Data Networking

Part Number: NGS24C2
Model: Parts
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$306.38

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Total Number of Network Ports
24
Uplink Port
Yes
Modular
Yes
Stack Port
No

Product Description:

  Tripp Lite 24 10/100/1000Mbps Port Gigabit L2 Web-Smart Managed Switch, 2 Dedicated Gigabit SFP Slots, 52 Gbps, Web Interface, 24 x Gigabit Ethernet Network, 2 x Gigabit Ethernet Expansion Slot, Manageable, Twisted Pair, Optical Fiber, Modular, 2 Layer Supported, 1U High, Rack-mountable, Desktop, 5 Year Limited Warranty
Explore all Tripp-Lite Parts Accessories
Add to Quote
Tripp-Lite NGS24C2 Data Networking
Tripp-Lite NGS24C2 Data Networking

Tripp-Lite Parts Accessory Model Overview

Products and parts from Tripp-Lite.
Tripp-Lite NGS24C2 Data Networking Overview

The energy-efficient NGS24C2 24-Port Gigabit L2 Web-Smart Managed Network Switch features 24 twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection functions for convenient plug-and-play capability. Two dedicated mini-GBIC SFP ports are also included for uplinking data to other switches via optical fiber or copper.

Easy-to-read LEDs indicate connection and activity status for each port. Built-in web-smart management software lets you monitor and control each connected device via secure web-based interface. Each port supports up to 2 Gbps with full duplex.

The heavy-duty metal housing mounts into 1U of an EIA-standard 19-inch rack using the included brackets and user-supplied hardware. Or attach the included rubber feet to the bottom of the unit for installation on a flat desktop surface. The five-foot input cord with NEMA 5-15P plug connects to a protected UPS, generator or mains input AC source.

Interfaces/Ports
Total Number of Network Ports:
24
Uplink Port:
Yes
Modular:
Yes
Stack Port:
No
Port/Expansion Slot Details:
  • 24 x Gigabit Ethernet Network
  • 2 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
  • Twisted Pair
  • Optical Fiber
Ethernet Technology:
Gigabit Ethernet
Network Technology:
10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots:
2
Expansion Slot Type:
SFP (mini-GBIC)
Shared SFP Slot:
No
Number of SFP Slots:
2
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
Yes
Power Description
Power Source:
Power Supply
Redundant Power Supply Supported:
No
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
  • Rack-mountable
  • Desktop
Height:
1.7"
Width:
17.3"
Depth:
8.1"
Weight (Approximate):
5.40 lb
Miscellaneous
Package Contents:
  • NGS24C2 24-Port Gigabit L2 Web-Smart Managed Network Switch
  • Detachable AC Power Cord w/NEMA 5-15P plug, 5 ft.
  • 2 x Rack-mounting Brackets
  • 8 x Screws
  • 4 x Rubber Feet
  • Owner's Manual
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0037332194831, 7111191618165
UPC: 037332194831
EAN: 0037332194831, 7111191618165
UNSPSC: 43222612
