Tripp-Lite NGI-U16 Data Networking

Tripp-Lite - Tripp Lite Ethernet Switch Unmanaged 16Port Industrial 10/100/1000 Mbps DIN, 16 Ports, Gigabit Ethernet, 10/100/1000Base-T, TAA Compliant, 2 Layer Supported, 16 W Power Consumption, Twisted Pair, DIN Rail Mountable, 3 Year Limited Warranty
  • Effectively reduces downtime with improved network performance
  • Expand your network capacity with the help of 16 networking ports and transfer your data quickly and easily
  • Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
  • DIN Rail Mountable form factor allows hassle-free and easy usage with increased efficiency
  • The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
  • Gigabit Ethernet port for ultra-fast network speeds
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Read More
$474.05
In Stock
Add to Quote
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite NGI-U16 Data Networking Overview

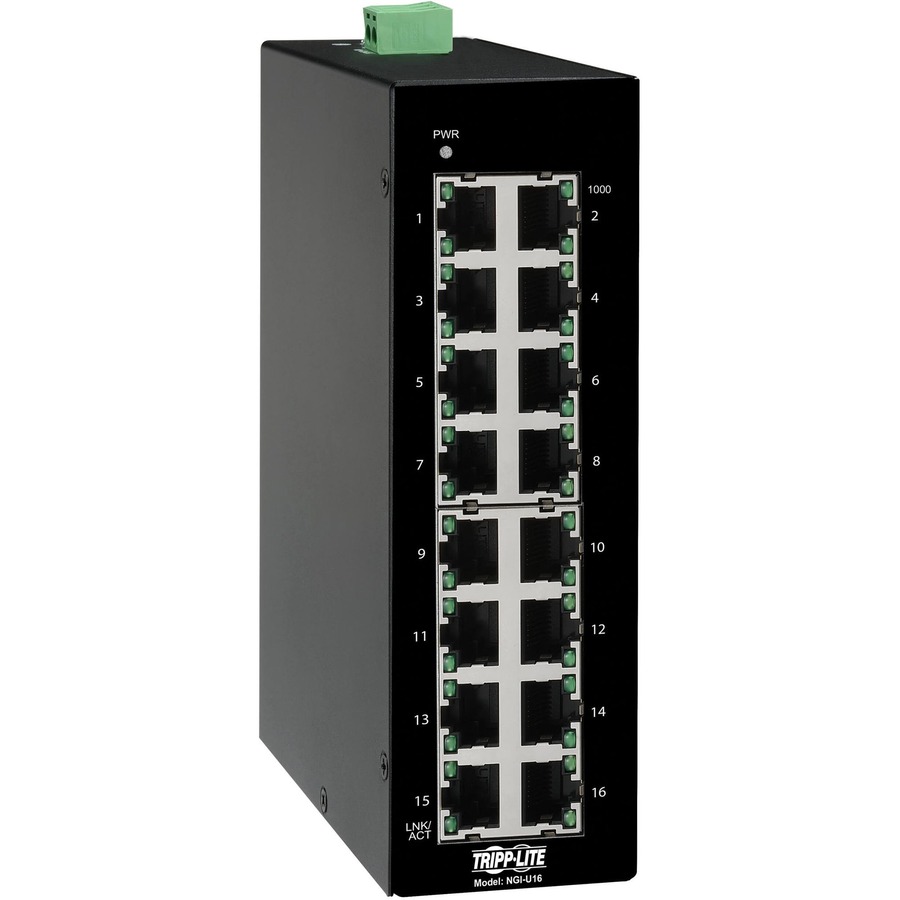

16-Port Unmanaged Gigabit Ethernet Switch Connects Your Devices to a LAN
This space-saving Tripp Lite switch transmits data over a Gigabit Ethernet network. Sixteen auto-negotiating 10/100/1000 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network.

Rugged Metal Housing Built to Last in Harsh Environments
The compact NGI-U16 adds 10/100/1000 Mbps Gigabit Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 degrees to 167 degrees Fahrenheit.

Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NGI-U16 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.

Pre-Installed DIN Rail Clip Allows for Convenient Installation
The NGI-U16 may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. A 2-pin 12-48VDC terminal block supplies power input. Device power must be supplied by LPS (Limited Power Source) circuit.

TAA-Compliant for GSA Schedule Purchases
The NGI-U16 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Interfaces/Ports
Total Number of Network Ports:
16
Network (RJ-45):
Yes
Port/Expansion Slot Details:
16 x Gigabit Ethernet Network
Media & Performance
Media Type Supported:
Twisted Pair
Ethernet Technology:
Gigabit Ethernet
Network Technology:
10/100/1000Base-T
Network & Communication
Layer Supported:
2
Networking Standards:
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
Management & Protocols
Manageable:
No
Power Description
Power Consumption:
16 W
Physical Characteristics
Product Material:
Metal
Form Factor:
DIN Rail Mountable
Height:
6.3"
Width:
1.9"
Depth:
4.7"
Miscellaneous
Package Contents:
  • NGI-U16 Ethernet Switch
  • DIN Rail-mounting Clip (Pre-installed)
  • Owner's Manual
Environmentally Friendly:
Yes
Environmental Certification:
  • REACH
  • RoHS
Country of Origin:
Taiwan
TAA Compliant:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0037332265852
UPC: 037332265852
EAN: 0037332265852
UNSPSC: 43222612
