Tripp-Lite NG8 Data Networking

Part Number: NG8
Model: Parts
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Total Number of Network Ports
8
Uplink Port
No
Modular
No
Stack Port
No

Product Description:

  Tripp Lite 8-Port Gigabit Ethernet Switch Desktop Metal Unmanaged Switch 10/100/1000 Mbps, 8 Ports, 10/100/1000Base-TX, 8 x Network, Twisted Pair, Gigabit Ethernet, 2 Layer Supported, Wall Mountable, Desktop, 5 Year
Explore all Tripp-Lite Parts Accessories
Add to Quote
Tripp-Lite NG8 Data Networking
Tripp-Lite NG8 Data Networking
Tripp-Lite NG8 Data Networking
Tripp-Lite NG8 Data Networking Tripp-Lite NG8 Data Networking Tripp-Lite NG8 Data Networking

Tripp-Lite Parts Accessory Model Overview

Products and parts from Tripp-Lite.
Tripp-Lite NG8 Data Networking Overview

The NG8 8-Port 10/100/1000 Mbps Desktop Gigabit Ethernet Unmanaged Switch adds 10/100/1000 Mbps Ethernet capacity to your home office, small office, workgroup or creative production environment. Share large bandwidth-intensive files, such as CAD drawings and videos, at Gigabit speeds, improving efficiency and cutting costly downtime.

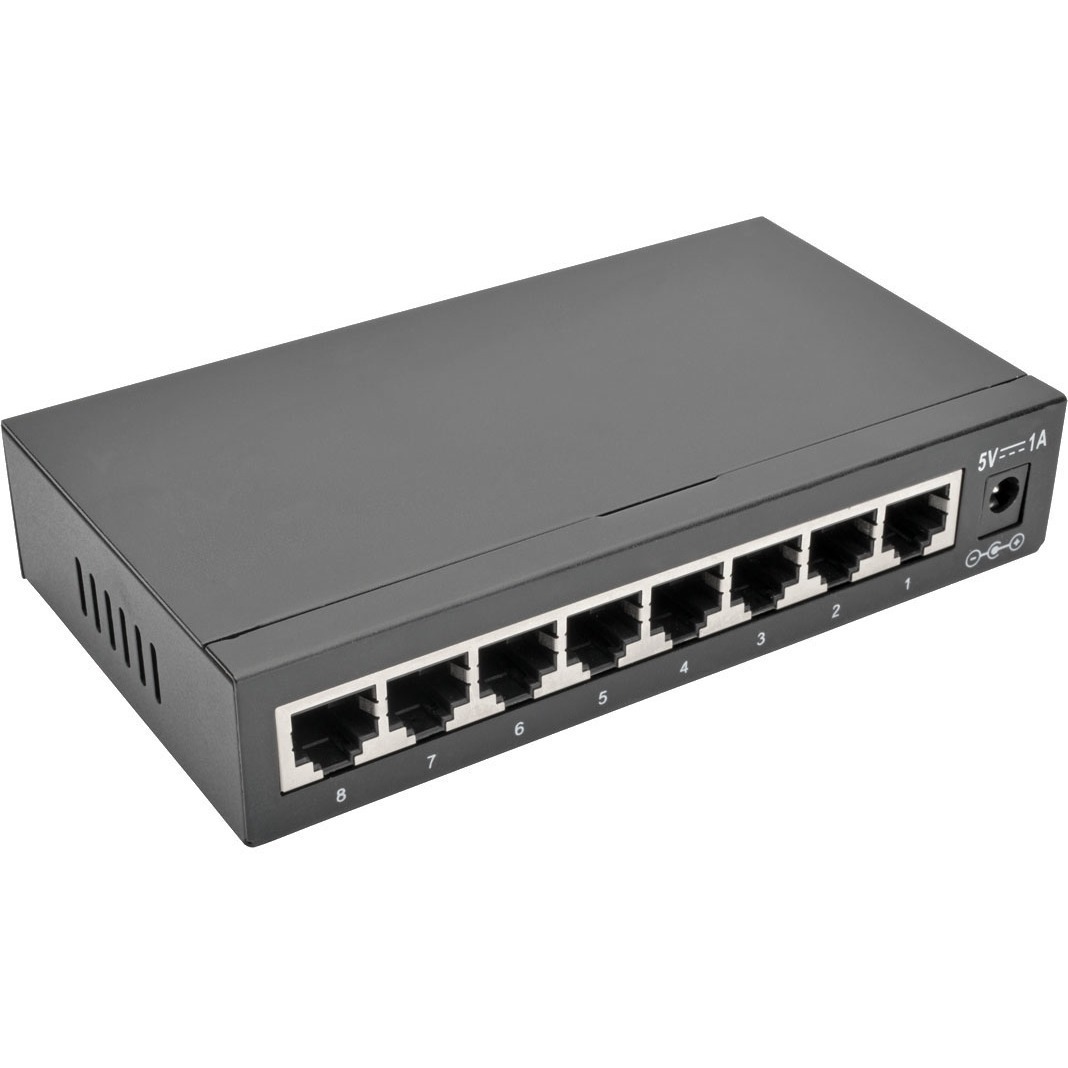

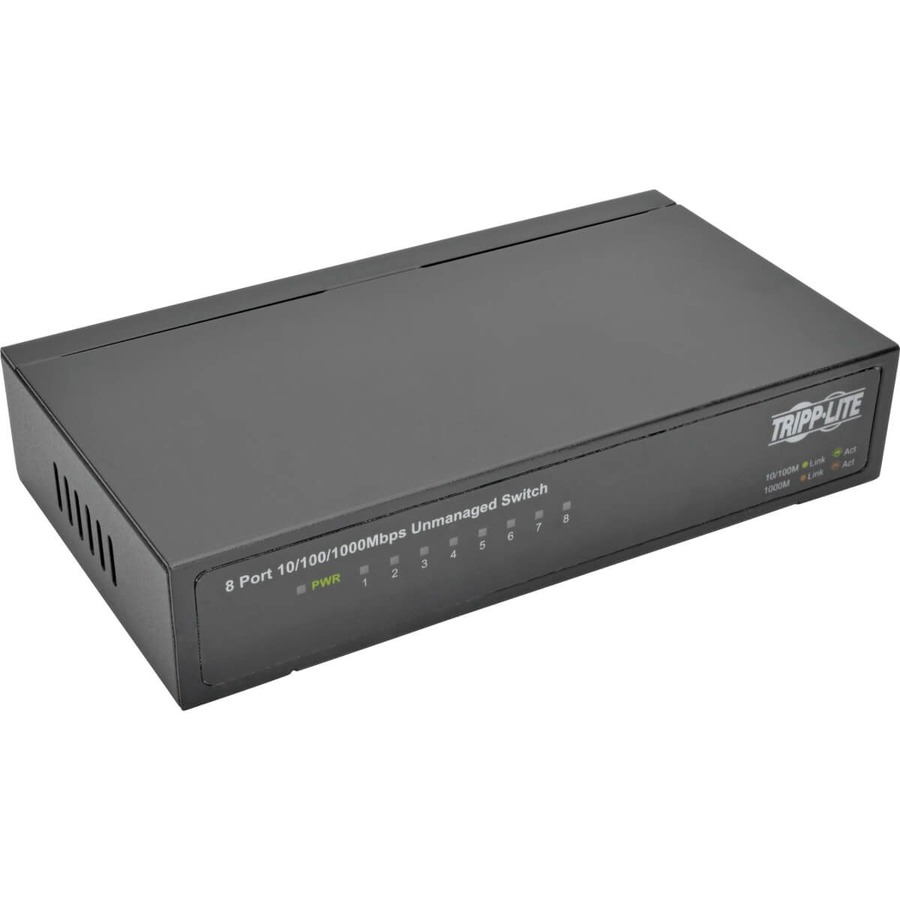

This desktop switch features eight twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection functions for convenient plug-and-play capability. No configuration is required, so you can have your Gigabit network up and running immediately. Easy-to-read LEDs indicate connection and activity status for each port. IEEE 802.3x flow control allows smooth transmission of large files.

The NG8 supports IEEE 802.3az Energy Efficient Ethernet standards by putting unused ports into a low-power state without interrupting network connections. It consumes very little input power-just a single watt. The detachable five-foot input cord with NEMA 1-15P plug connects to a protected UPS, generator or mains input AC source. The heavy-duty metal housing includes keyhole tabs for optional wall-mounting.

Interfaces/Ports
Total Number of Network Ports:
8
Uplink Port:
No
Modular:
No
Stack Port:
No
Port/Expansion Slot Details:
8 x Gigabit Ethernet Network
Media & Performance
Media Type Supported:
Twisted Pair
Ethernet Technology:
Gigabit Ethernet
Network Technology:
10/100/1000Base-TX
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
No
Power Description
Power Source:
AC Adapter
Redundant Power Supply Supported:
No
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Desktop
Height:
1.1"
Width:
5.5"
Depth:
3.1"
Weight (Approximate):
10.08 oz
Miscellaneous
Package Contents:
  • 8-Port 10/100/1000 Mbps Desktop Gigabit Ethernet Unmanaged Switch, Metal Housing
  • 5 ft Cord
  • Owner's Manual
  • 5V DC Output Power Adapter
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0037332194756, 0803930997071, 0818242399550
UPC: 037332194756, 803930997071, 818242399550
EAN: 0037332194756, 0803930997071, 0818242399550
UNSPSC: 43222612
