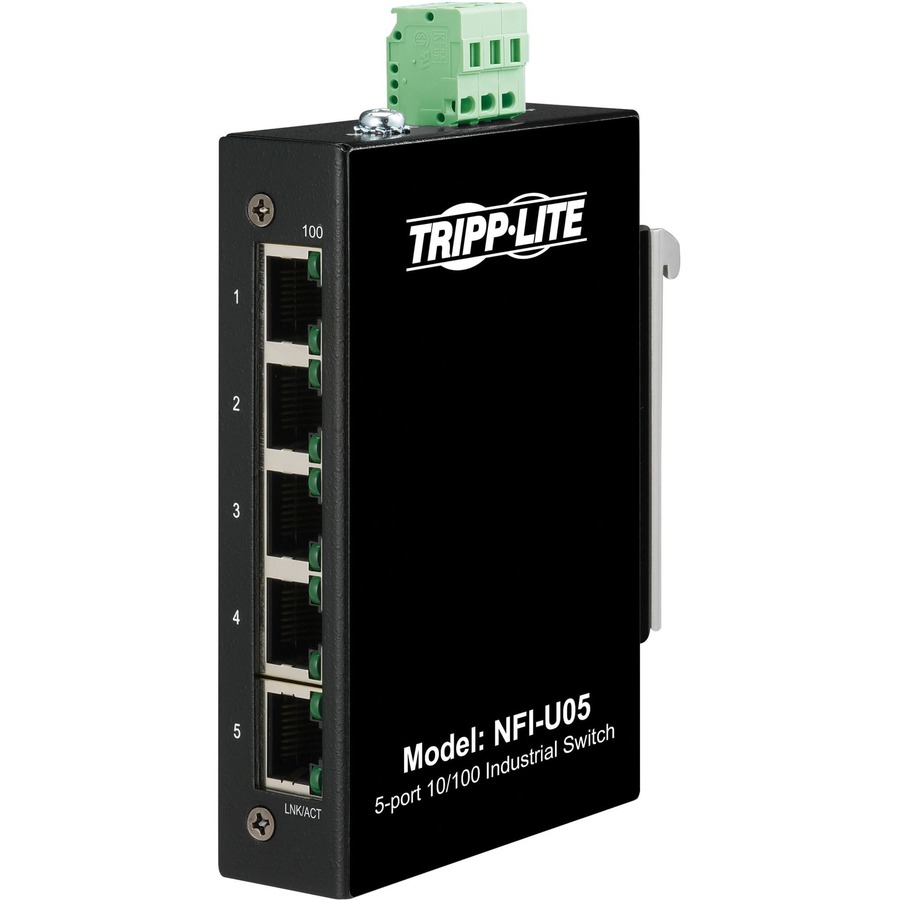

Tripp-Lite NFI-U05 Network Switch

Tripp-Lite NFI-U05 - Network Switches, Tripp Lite NFI-U05, Ethernet Switch Unmanaged 5 Port Industrial Din Mount 10/100 MBPS
  • 5 auto-negotiable 10/100 Mbps RJ45 ports connect devices over a LAN
  • Industrial-grade switch supports operating temperature range of - 40° to 167°F
  • Easy-to-read LEDs indicate connection and activity status for all 5 Ethernet ports
  • Plug-and-play operation with no software or configuration required before use
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Read More
$106.25
In Stock
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite NFI-U05 Network Switch Overview
Industrial-grade switch expands Ethernet connectivity to factory floors and other environments with space constraints and wide temperature ranges.

Features |
5-Port Unmanaged Ethernet Switch Connects Your Devices to a LAN
This space-saving Tripp Lite switch transmits data over an Ethernet network. Five auto-negotiating 10/100 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network.

Ruggedized Metal Housing Built to Last in Harsh Environments
The compact NFI-U05 adds 10/100 Mbps Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 degrees to 167 degrees Fahrenheit.

Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NFI-U05 supports MAC address autolearning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plugand-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.

Flexible Mounting Options
The open-type device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. It may also be wall mounted using the rear mounting holes. A 3-pin 12-48VDC terminal block supplies power input. Device power must be supplied by SELV circuit.

TAA-Compliant for GSA Schedule Purchases
The NFI-U05 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Interfaces/Ports
Total Number of Network Ports:
5
Network (RJ-45):
Yes
Port/Expansion Slot Details:
5 x Fast Ethernet Network
Media & Performance
Media Type Supported:
Twisted Pair
Ethernet Technology:
Fast Ethernet
Network Technology:
10/100Base-T
Network & Communication
Layer Supported:
2
Networking Standards:
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
Management & Protocols
Manageable:
No
Power Description
Power Consumption:
3 W
Physical Characteristics
Material:
Aluminum
Form Factor:
  • DIN Rail Mountable
  • Wall Mountable
Height:
4.3"
Width:
0.9"
Depth:
2.9"
Weight (Approximate):
6.70 oz
Miscellaneous
Package Contents:
  • NFI-U05 Ethernet Switch
  • DIN Rail-mounting Clip
  • Owner's Manual
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • REACH
Country of Origin:
Taiwan
TAA Compliant:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0037332264268
UPC: 037332264268
EAN: 0037332264268
UNSPSC: 43222612
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Tripp-Lite NFI-U05 Network Switch is also known as NFI-U05
