Tripp-Lite N785-001-LC-MM Data Networking

Tripp-Lite - Tripp Lite LC MULTIMODE MEDIA CONVERTER 10/100/1000 RJ45 LC 550M 850NM
  • Extends a Gigabit Ethernet signal up to 550 meters over Multimode Fiber Optic Cable
  • Auto detects Full/Half Duplex Transfer Mode
  • Supports Multimode 50/125 cable up to 550M or 62.5/125 cable up to 400M
Read More

Need a different version? See all Tripp-Lite Parts Accessories

$222.31
In Stock
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Tripp-Lite N785-001-LC-MM Data Networking
Tripp-Lite N785-001-LC-MM Data Networking
Tripp-Lite N785-001-LC-MM Data Networking
Tripp-Lite N785-001-LC-MM Data Networking
Tripp-Lite N785-001-LC-MM Data Networking
Tripp-Lite N785-001-LC-MM Data Networking
Tripp-Lite N785-001-LC-MM Data Networking Tripp-Lite N785-001-LC-MM Data Networking Tripp-Lite N785-001-LC-MM Data Networking Tripp-Lite N785-001-LC-MM Data Networking Tripp-Lite N785-001-LC-MM Data Networking Tripp-Lite N785-001-LC-MM Data Networking
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite N785-001-LC-MM Data Networking Overview

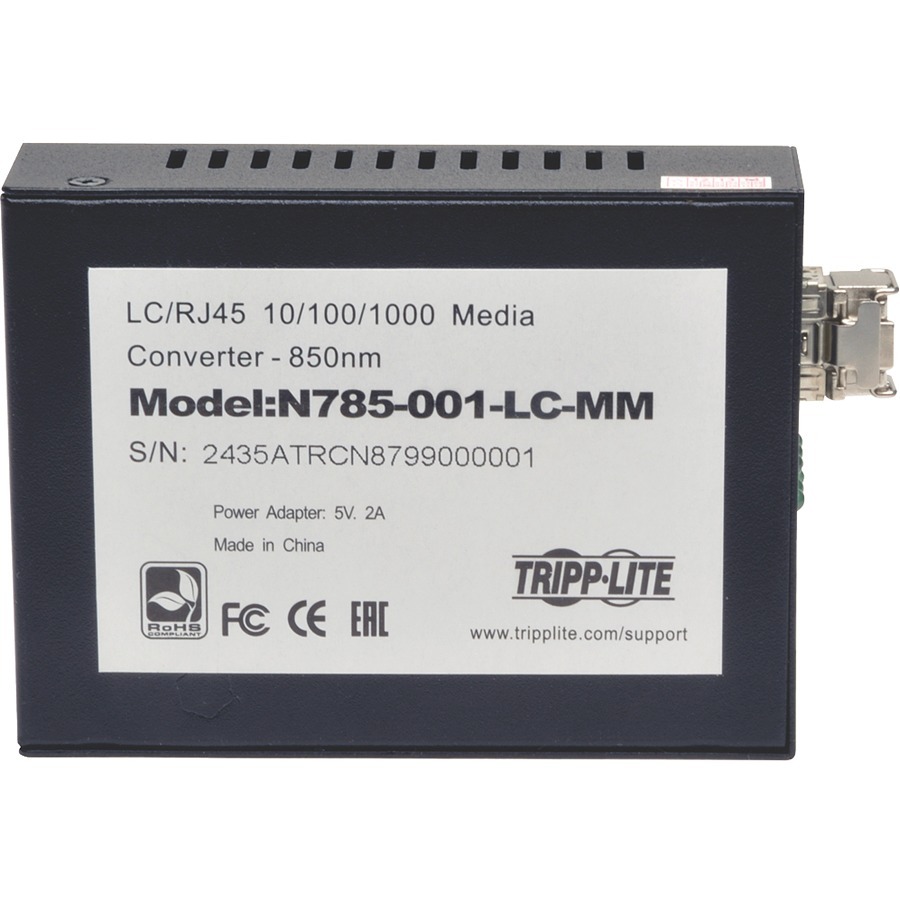

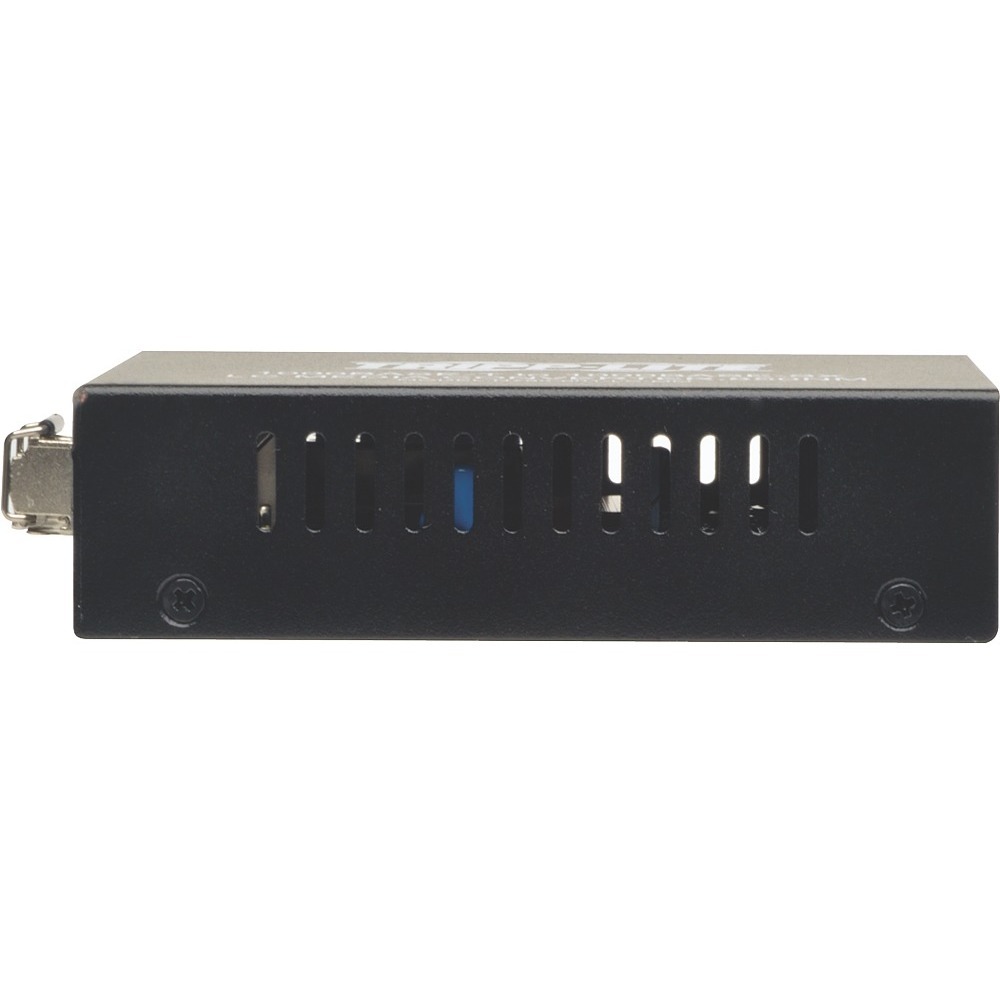

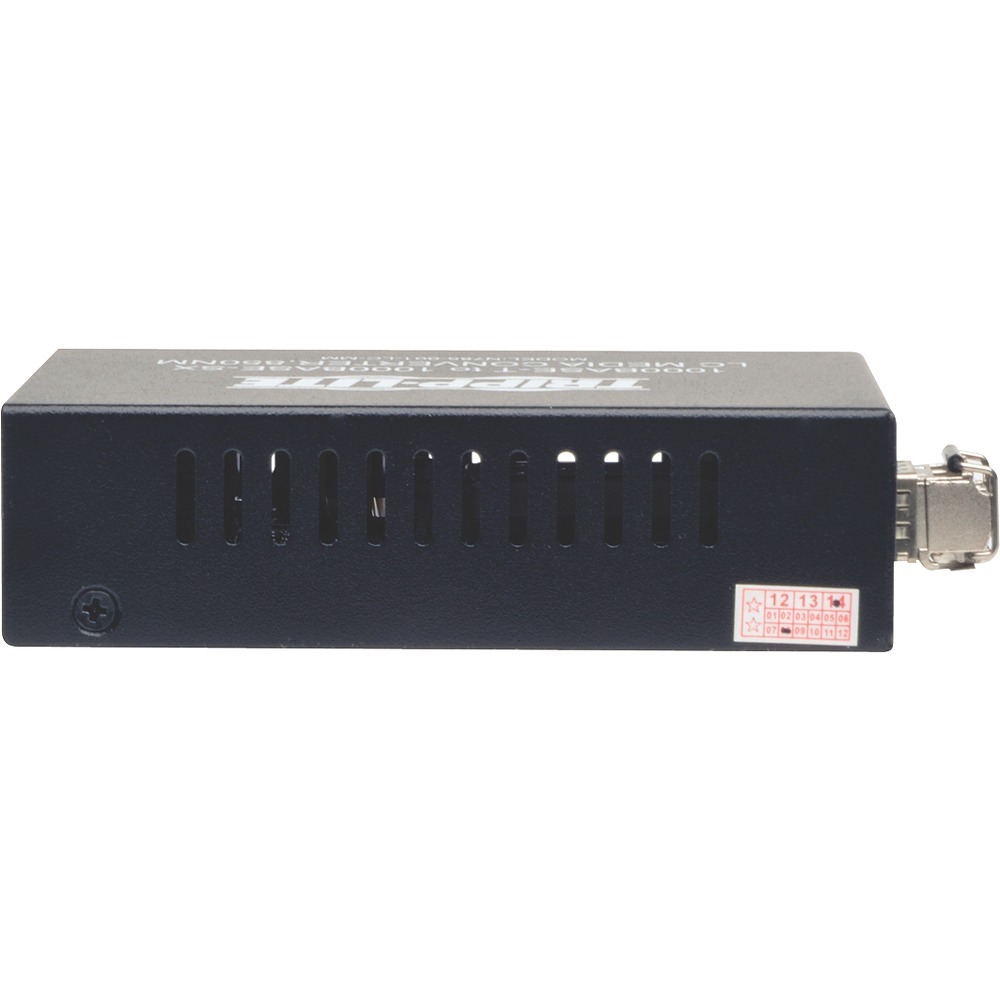

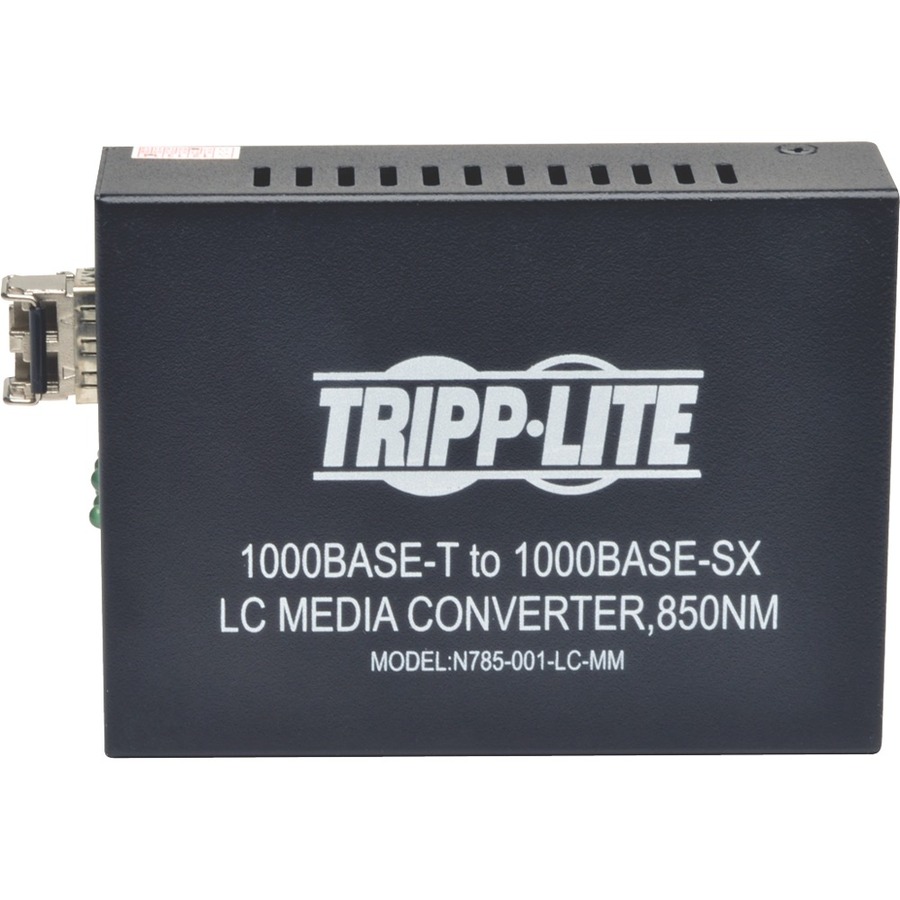

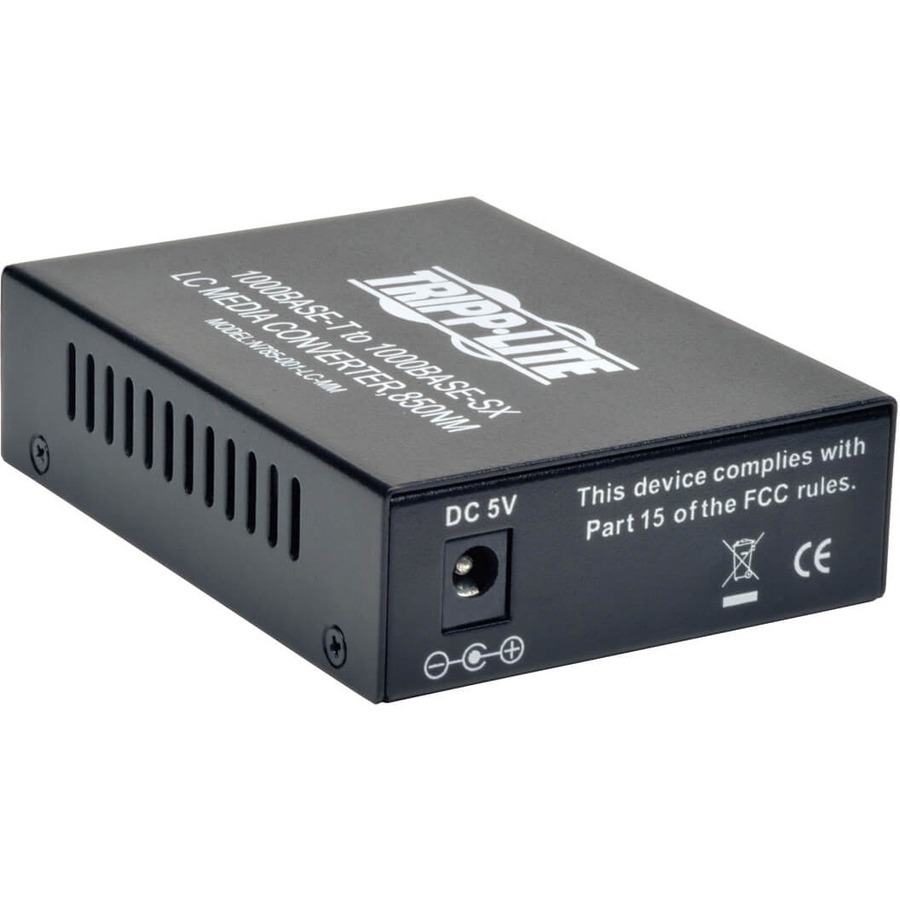

Tripp Lite's N785-001-LC-MM 10/100/1000 to Multimode Media Converter ( RJ45 to LC ) is an economical way to extend the distance of network nodes up to 550M by converting Cat5e UTP cables to Multimode Fiber Optic. The Media Converter features automatic MDI/MDI-X configuration, and the UTP port senses the network speed automatically. Auto-detects half or full duplex operation on the fiber port. Power supplied by small form factor AC adapter.
Interfaces/Ports
Total Number of Ports:
2
Network (RJ-45):
Yes
DVI:
No
USB:
No
Parallel Port:
No
Digital Audio:
No
Digital Audio/Video:
No
Management Port:
No
Number of LC Ports:
1
Number of Network (RJ-45) Ports:
1
Media & Performance
Media Type Supported:
  • Optical Fiber
  • Twisted Pair
Fiber Mode Supported:
Multi-mode
Fiber Optic Wavelength:
850 nm
Maximum Distance Supported:
1804.46 ft
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T
  • 1000Base-SX
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Product Color:
Black
Form Factor:
Desktop
Height:
1"
Width:
4.7"
Depth:
2.8"
Weight (Approximate):
1 lb
Miscellaneous
Certifications & Standards:
  • FCC
  • CE
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Country of Origin:
China
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0037332183927, 0646444350631, 0803929852756, 0818242886579, 0993246510726, 0997850822947, 0997852263007
UPC: 037332183927, 646444350631, 803929852756, 818242886579, 993246510726, 997850822947, 997852263007
EAN: 0037332183927, 0646444350631, 0803929852756, 0818242886579, 0993246510726, 0997850822947, 0997852263007
UNSPSC: 43201553
