Tripp-Lite N520-100M Cables, Connectors, and Adapters

Part Number: N520-100M
Model: Parts
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$216.12
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Cable Type
Fiber Optic
Cable Characteristic
Patch Cable
Core/Cladding Diameter
50/125 µm
Cable Length
328.10 ft

Product Description:

  Cables, Connectors, and Adapters, Tripp-Lite, Duplex Multimode 50/125 Fiber Patch Cable (LC/LC), 100M (328'')
Explore all Tripp-Lite Parts Accessories
Add to Quote
Tripp-Lite N520-100M Cables, Connectors, and Adapters
Tripp-Lite N520-100M Cables, Connectors, and Adapters

Tripp-Lite Parts Accessory Model Overview

Products and parts from Tripp-Lite.
Tripp-Lite N520-100M Cables, Connectors, and Adapters Overview

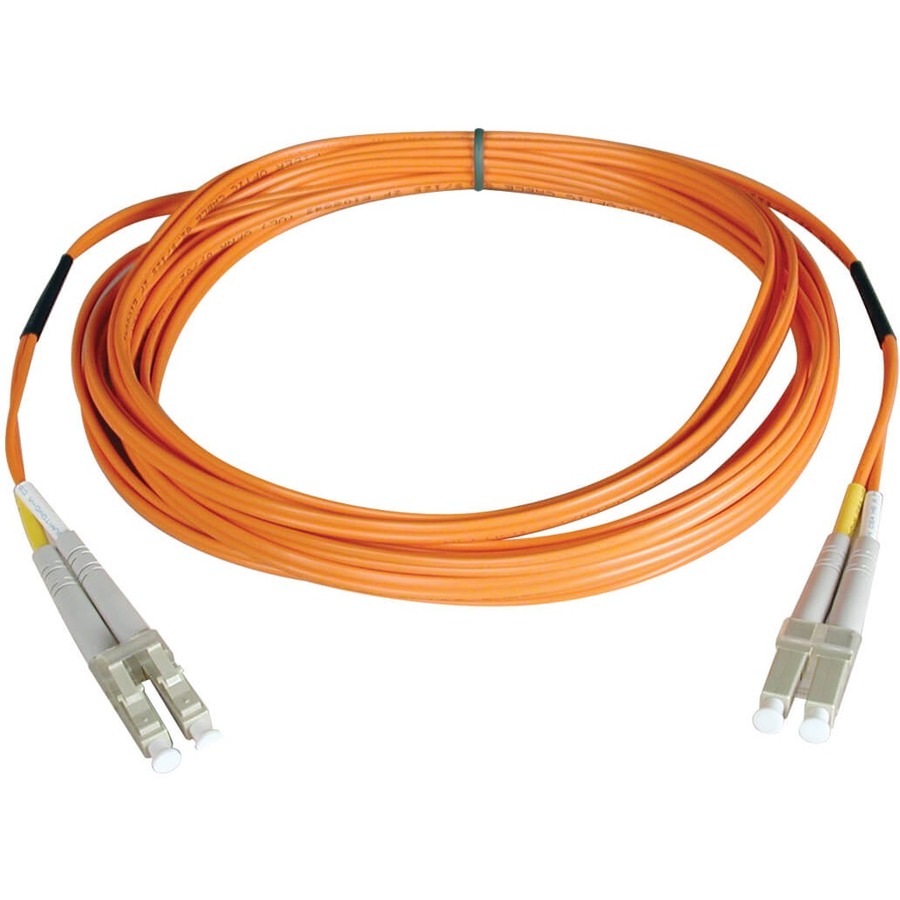

Tripp Lite's 100-meter multimode duplex Fibre Channel optic LC/LC patch cable is manufactured from 50/125 zipcord fiber. The cable has LC connectors on each end. It has a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and provides built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in 1, 2, 3, 5, 10, 15, 20, 25, 30, and 50 meter lengths. Enter "N520-" in the search field to bring up all lengths. For LC-SC cables, search "N516-" , and for SC-SC, search "N506-". Tripp Lite warrants this product to be free from defects in materials and workmanship for life.

Technical Information
Cable Type:
Fiber Optic
Cable Characteristic:
Patch Cable
Core/Cladding Diameter:
50/125 µm
Cable Length:
328.10 ft
Connector Type on First End:
LC - Male
Connector on First End Details:
2 x LC - Male
Connector Type on Second End:
LC - Male
Connector on Second End Details:
2 x LC - Male
Physical Characteristics
Product Color:
Orange
Jacket Material:
Polyvinyl Chloride (PVC)
Miscellaneous
Package Contents:
  • Fiber Optic Duplex Patch Cable
  • 100M Duplex MMF Cable LC/LC 50/125 Fiber
Additional Information:
  • Use on fiber and fibre channel installations
  • Backward compatible with 62.5 micron fiber
  • Built-in headroom for future applications
  • Number of fibers: 2
  • Fiber type: all glass graded index
  • Primary coating diameter: 245+/-15 microns
  • Primary coating material: acrylate
  • Secondary coating diameter: 900+/-50 microns
  • Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
  • Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
  • Numeric apeture: .275 nominal
  • Proof test level: 100,000 PSI
  • Insertion loss testing performed on every connector (0.2db typical) and provided with cable
  • Beveled edge on ends of glass makes insertion of plug a breeze
Certifications & Standards:
  • FDDI
  • OFNR
Country of Origin:
China
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0014445022923, 0037332125200, 0042111615551, 0742067266592
UPC: 014445022923, 037332125200, 042111615551, 742067266592
EAN: 0014445022923, 0037332125200, 0042111615551, 0742067266592
UNSPSC: 26121607
