Tripp-Lite N201-010-BL Power Device

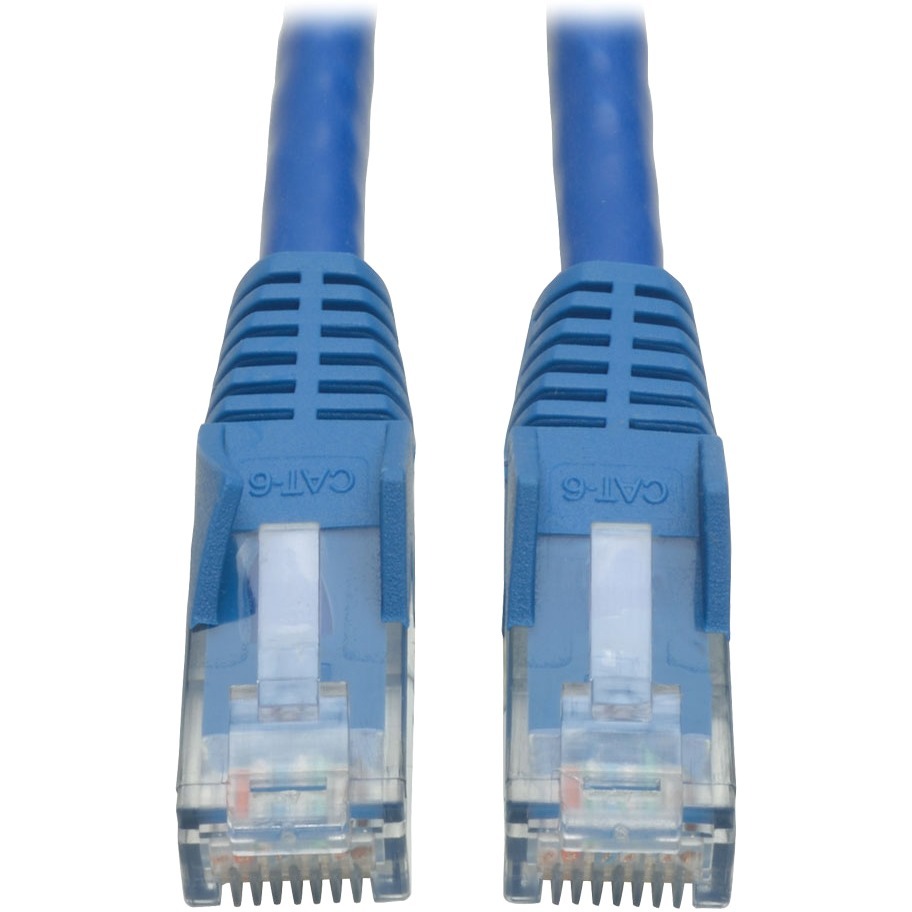

Tripp-Lite - Tripp Lite 10ft Cat6 Gigabit Snagless Molded Patch Cable RJ45 M/M Blue 10' - 10ft - 1 x RJ-45 Male - 1 x RJ-45 Male - Blue
  • Meets category 6 cabling standards
  • Premium cabling for category 6, category 5e and category 5 applications
  • Length: 10-ft. Color: blue Connectors: RJ45 male
  • Drastically reduce impedance and structural return loss compared to standard 100MHz wire
  • High-quality copper wire and a staggered-pin plug design to keep near-end crosstalk levels to a minimum
  • Feature molded connectors with integral strain relief
  • Snagless design protects the locking tabs on the RJ45 connectors from being damaged or snapped off during installation
  • PVC 4-pair stranded UTP
  • Deliver stable performance up to 550MHz/1 Gbps communication
  • Meets most current industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 6 draft 11)
Read More

Need a different version? See all Tripp-Lite Parts Accessories

$13.53
In Stock
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Tripp-Lite N201-010-BL Power Device
Tripp-Lite N201-010-BL Power Device
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite N201-010-BL Power Device Overview

With Tripp Lite's new category 6 molded patch cables you can stay ahead of the game by using this high-speed cable to distribute data, voice and video. These cables deliver stable performance up to 550MHz. Each comes UL verified meets EIA/TIA Cat6 TIA/EIA-568-B-2.1 draft 9 standards. Constructed with high-quality copper wire and a staggered-pin plug design, near-end crosstalk levels are kept to a minimum. Designed for use in category 6, category 5e and category 5 applications. Cat6 cables are available in a variety of colors with a snagless boot preventing cable snags. Tripp Lite warrants this product to be free from defects in materials and workmanship for life.

Technical Information
Cable Type:
Category 6
Cable Characteristic:
Patch Cable
Cable Length:
10 ft
Connector Type on First End:
RJ-45 Network - Male
Connector on First End Details:
1 x RJ-45 Network - Male
Connector Type on Second End:
RJ-45 Network - Male
Connector on Second End Details:
1 x RJ-45 Network - Male
Contact Plating:
Gold
Conductor:
Copper
Shielding:
No
Jacket Type:
CM
Device Supported:
  • Network Device
  • ATM
American Wire Gauge:
24 AWG
Data Transfer Rate:
1 Gbit/s
Boot Type:
Snagless
Number of Pairs:
4
Features:
  • Damage Resistant
  • Strain Relief
  • Molded
  • Stranded
  • Minimized Near-End Crosstalk (NEXT)
Physical Characteristics
Product Color:
Blue
Jacket Color:
Blue
Product Material:
Copper
Jacket Material:
Polyvinyl Chloride (PVC)
Material Details:
Copper - Conductor
Miscellaneous
Additional Information:
  • Drastically reduce impedance & structural return loss compared to standard 100MHz wire.
  • Integral strain relief
  • Applications : For 1000 Base-T (1Gbps Ethernet), 10/100 Base-T (Ethernet), 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice and Token Ring TYPE 3 applications as well as EIA/TIA applications.
Certifications & Standards:
  • IEEE 802.3ab
  • IEEE 802.5
  • ANSI/EIA/TIA 568
  • ISO/IEC 11801
  • ETL (category 6 draft 11)
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • REACH
Country of Origin:
China
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0021111539821, 0037332099891, 0818216062060, 4963273135953, 4963273136028
UPC: 021111539821, 037332099891, 818216062060
EAN: 0021111539821, 0037332099891, 0818216062060, 4963273135953, 4963273136028
UNSPSC: 26121609
