Tripp-Lite MTB3-01M5-5A-B Cables, Connectors, and Adapters

Part Number: MTB3-01M5-5A-B
Model: Parts
to get Free Ground Shipping on your order.
$68.11

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Cable Type
Thunderbolt 3
Cable Length
4.92 ft
Connector on First End
1 x USB Type C Male USB 3.1 (Gen 2) Thunderbolt 3
Connector on Second End
1 x USB Type C Male USB 3.1 (Gen 2) Thunderbolt 3

Product Description:

  THUNDERBOLT 3 CABLE 20 GBPS PASSIVE 5A 100W PD 4K USB C M/M 1.5M

Tripp-Lite Parts Accessory Model Overview

Products and parts from Tripp-Lite.

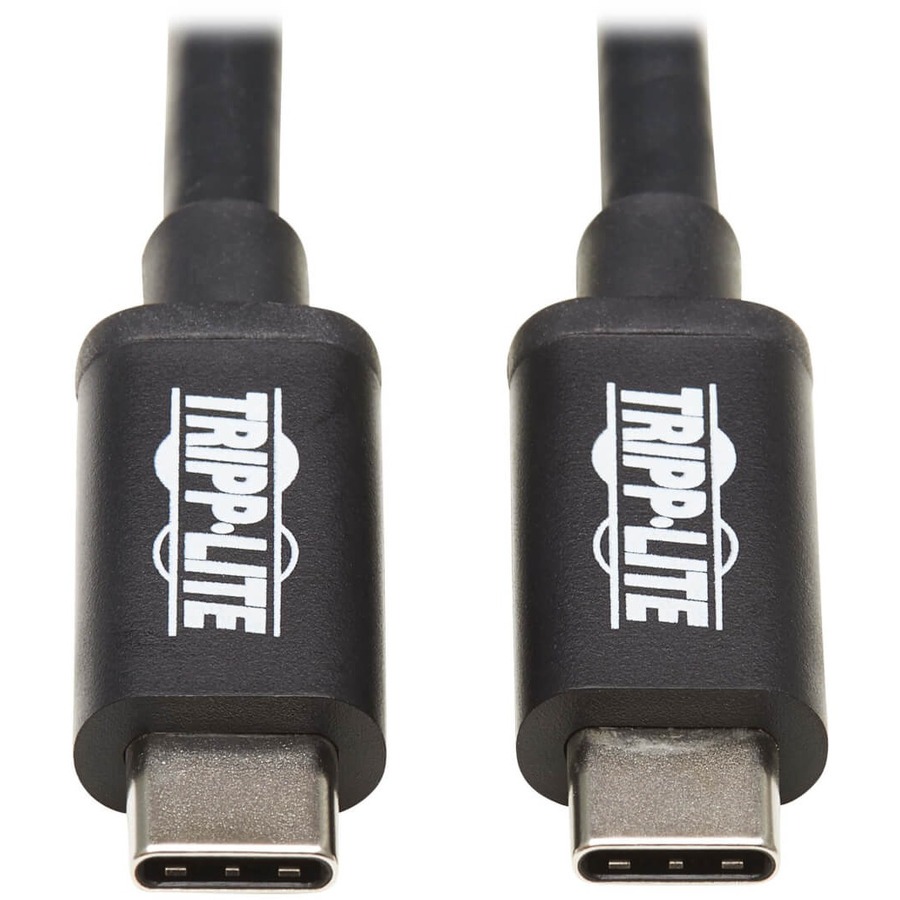

Tripp-Lite MTB3-01M5-5A-B Cables, Connectors, and Adapters Overview

Passive Cable Connects Thunderbolt 3 Devices, Including MacBooks and Chromebooks

This Thunderbolt 3 cable allows you to connect one Thunderbolt 3-enabled device to another, including MacBooks, Ultrabooks, Chromebooks, external hard drives and docking stations. It transmits full 4K x 2K (3840 x 2160 at 60 Hz) DisplayPort video and works with existing DisplayPort monitors. The cable's 1.5-meter length makes it easy to carry in your briefcase or laptop bag for quick video connections and file transfers on the go.

Charges Devices and Transfers Data 2 Times Faster Than USB 3.1 Gen 2

The MTB3-01M5-5A-B supports bidirectional Thunderbolt 3 data transfer speeds up to a whopping 20 Gbps, which is twice as fast as USB 3.1 Gen 2. The PD Charging cable also provides power output up to 5 amps (100 watts), which is sufficient for fast-charging, syncing and powering most large-capacity devices.

Reversible Thunderbolt 3 Connectors Attach in Either Direction

Unlike traditional USB cables that connect in only one direction, the reversible Thunderbolt 3 male connectors plug into a Thunderbolt 3 or USB-C port in either direction for a fumble-free connection every time. Note: both ends must be connected to a Thunderbolt 3 port to achieve 20 Gbps transfer speeds.

Technical Information
Cable Type:
Thunderbolt 3
Cable Length:
4.92 ft
Connector on First End:
1 x USB Type C Male USB 3.1 (Gen 2) Thunderbolt 3
Connector on Second End:
1 x USB Type C Male USB 3.1 (Gen 2) Thunderbolt 3
Connector Plating:
Nickel
Features:
  • Passive
  • Charging
  • Reversible
  • Plug & Play
  • USB- Power Delivery (USB PD)
Device Supported:
  • MacBook
  • Chromebook
  • Ultrabook
  • External Hard Drive
  • Docking Station
  • Monitor
  • Notebook
  • Hub
  • Video Device
  • Mobile Device
  • External GPU
  • TV
Data Transfer Rate:
20 Gbit/s
Supported Resolution:
3840 x 2160
Physical Characteristics
Color:
Black
Miscellaneous
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • REACH
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0037332242020, 0993251565032, 0994141653327
UPC: 037332242020, 993251565032, 994141653327
EAN: 0037332242020, 0993251565032, 0994141653327
UNSPSC: 26121604
