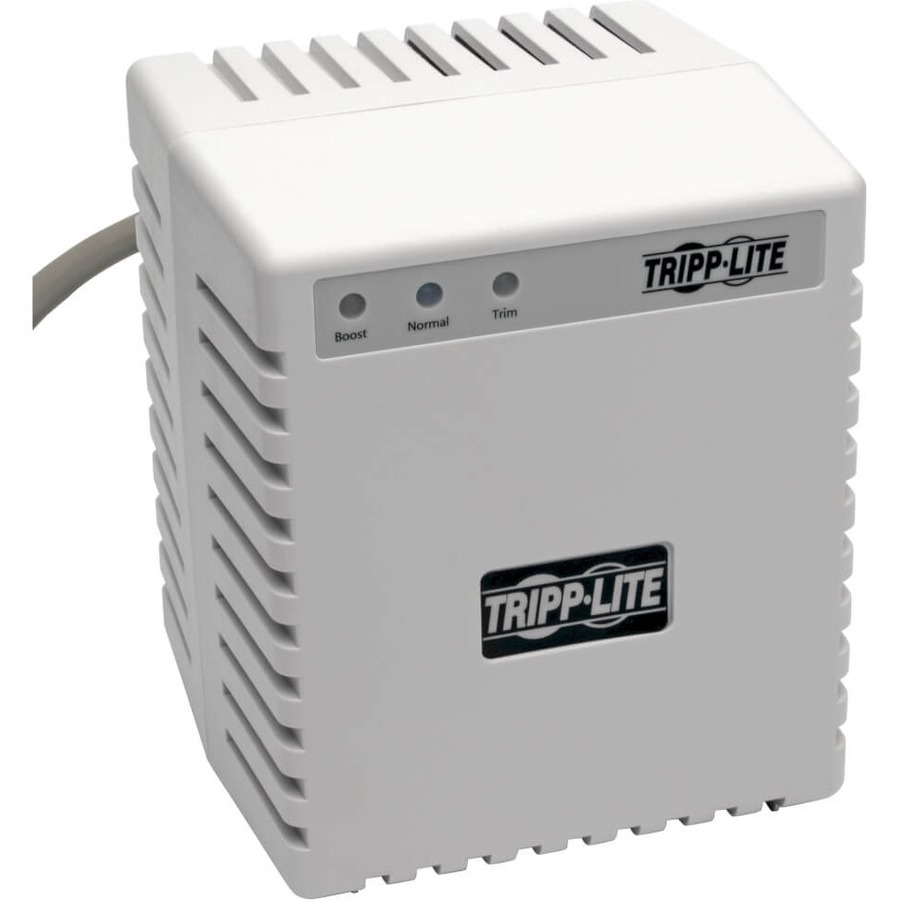

Tripp-Lite LS606M UPS

Part Number: LS606M
Model: UPS
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$169.40

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Protection Type
SurgeEMI / RFIOver VoltageBrownout
Plug/Connector Type
NEMA 5-15P
Receptacle Type
NEMA 5-15R
Receptacles Detail
6 x NEMA 5-15R

Product Description:

  Tripp Lite 600W Line Conditioner w/ AVR / Surge Protection 120V 5A 60Hz 6 Outlet Power Conditioner - Surge, EMI / RFI, Over Voltage, Brownout protection - NEMA 5-15R - 110 V AC Input - 600 VA - 600 W"
Explore all Tripp-Lite UPS Accessories
Add to Quote
Tripp-Lite LS606M UPS
Tripp-Lite LS606M UPS
Tripp-Lite LS606M UPS Tripp-Lite LS606M UPS

Tripp-Lite UPS Accessory Model Overview

Tripp-Lite UPS and Power Supply products.
Tripp-Lite LS606M UPS Overview

The LS606M 600W 120V Power Conditioner adjusts under- and overvoltages to provide safe, computer-grade AC power that meets ANSI C84.1 specifications. Built-in automatic voltage regulation (AVR) offers two levels of voltage stabilization that correct undervoltages as low as 85V and overvoltages as high as 147V back to regulated 120V nominal power. Providing optimum voltage conditions not only extends the life of your equipment, but also keeps your equipment working through brownouts and prolonged overvoltage conditions.

Technical Information
Protection Type:
  • Surge
  • EMI / RFI
  • Over Voltage
  • Brownout
Plug/Connector Type:
NEMA 5-15P
Receptacle Type:
NEMA 5-15R
Receptacles Detail:
6 x NEMA 5-15R
Power Description
Load Capacity (VA):
600 W
Load Capacity (Watt):
600 W
Input Voltage:
110 V AC
Input Voltage Range:
89 V AC - 147 V AC
Output Voltage:
120 V AC
Maximum Line Current:
5 A
Maximum Frequency:
60 Hz
Surge Energy Rating:
720 J
Physical Characteristics
Cord Length:
6 ft
Form Factor:
Mini-tower
Height:
5.5"
Width:
4.8"
Depth:
4.8"
Weight (Approximate):
3.80 lb
Miscellaneous
Package Contents:
  • LS606M 600W 120V Power Conditioner
  • Owner's Manual
Additional Information:
  • Voltage Regulation: +10%/-16%
  • Input voltages over 128V are reduced by 10.6%
  • Input voltages below 102V are boosted by 13.4%

Maintains regulated output voltage during severe brownouts and overvoltages for computer accessories, printers, home theater equipment, a/v components, point-of-sale equipment, and other applications requiring clean, regulated AC power.

Certifications & Standards:
  • IEEE 587 / ANSI C62.41
  • UL1012 (USA)
  • cUL (Canada)
  • NOM (Mexico)
Country of Origin:
Taiwan
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0037332116246, 0163120850631, 0646444833721, 0997852488578
UPC: 037332116246, 163120850631, 646444833721, 997852488578
EAN: 0037332116246, 0163120850631, 0646444833721, 0997852488578
UNSPSC: 39121020
