Tripp-Lite LC1200 Power Device

Part Number: LC1200
Model: Parts
to get Free Ground Shipping on your order.
$248.77

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Protection Type
SurgeEMI / RFIOver VoltageBrownout
Plug/Connector Type
NEMA 5-15P
Receptacle Type
NEMA 5-15R
Receptacles Detail
4 x NEMA 5-15R

Product Description:

  Tripp Lite 1200W Line Conditioner w/ AVR / Surge Protection 120V 10A 60Hz 4 Outlet 7ft Cord Power Conditioner - Surge, EMI / RFI, Over Voltage, Brownout protection - NEMA 5-15R - 110 V AC Input - 1.20 kVA - 1.20 kW"

Tripp-Lite Parts Accessory Model Overview

Products and parts from Tripp-Lite.
Tripp-Lite LC1200 Power Device Overview

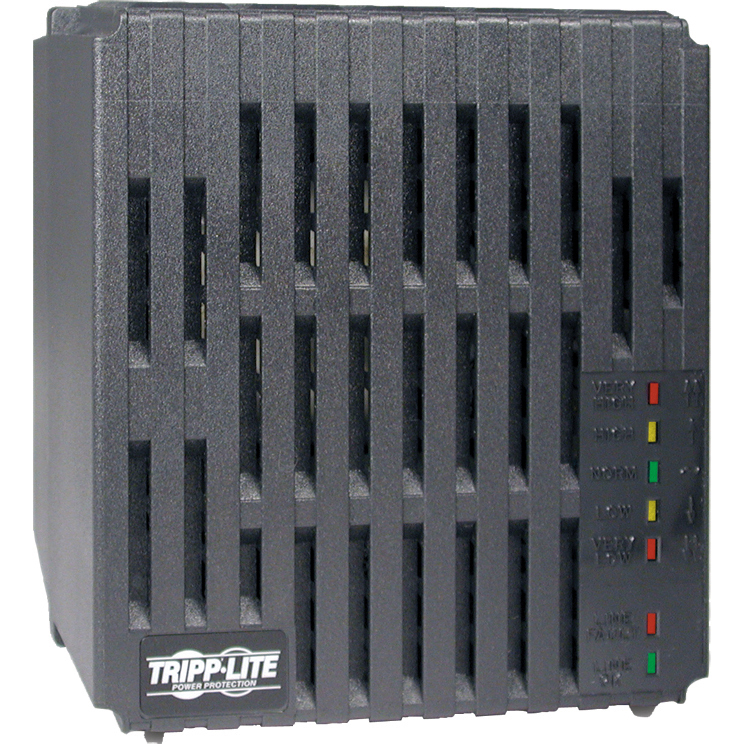

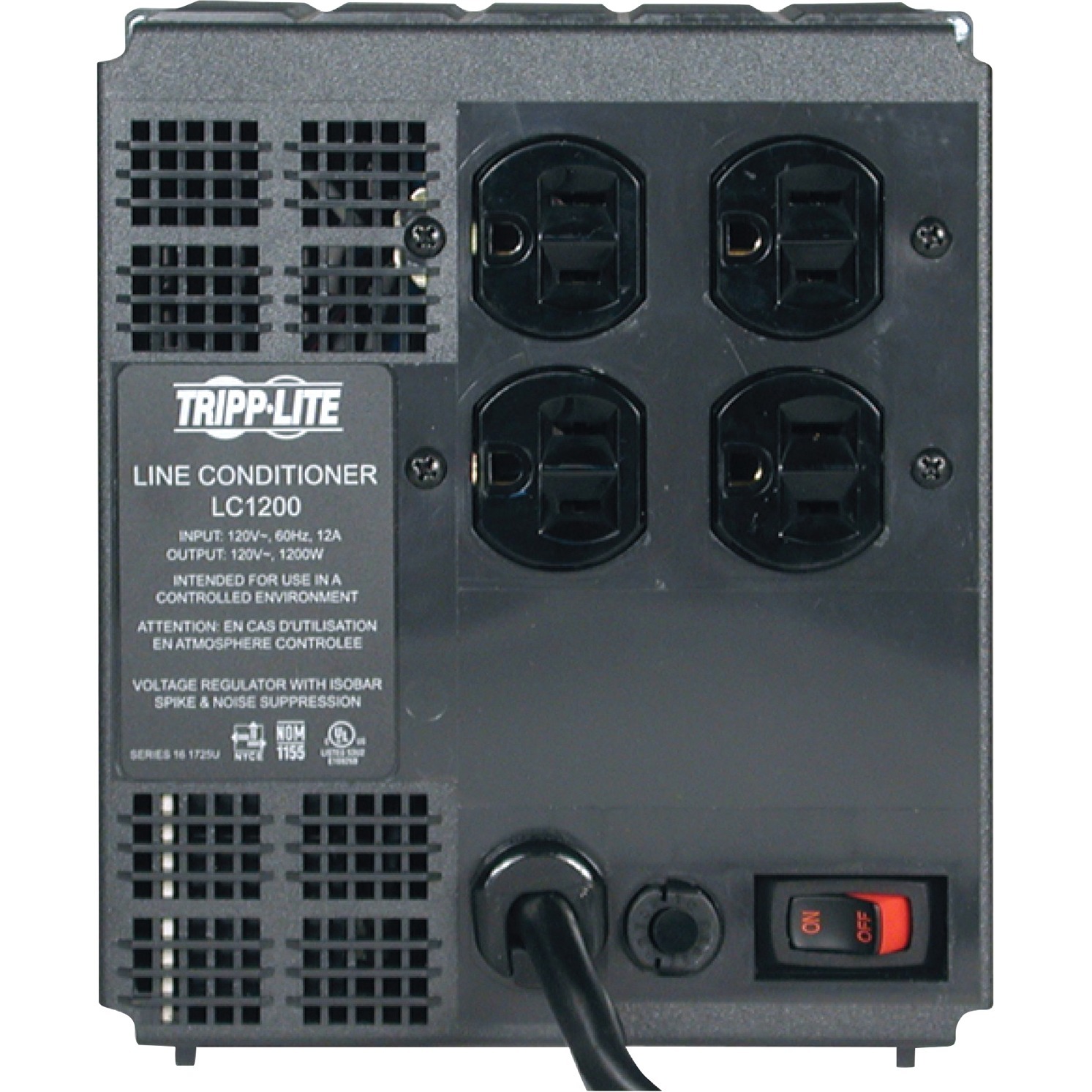

The LC1200 1200W 120V Line Conditioner - Automatic Voltage Regulator adjusts under- and overvoltages to provide safe, computer-grade AC power that meets ANSI C84.1 specifications. The automatic voltage regulation (AVR) offers three levels of voltage stabilization that corrects undervoltages as low as 89V and overvoltages as high as 147V back to regulated 120V nominal power. Providing optimum voltage conditions not only extends the life of your equipment, but also keeps your equipment working through brownouts and prolonged overvoltage conditions.A network-grade 1200-joule surge suppression rating exceeds the IEEE-587 standard for surge suppression (both categories A and B) and prevents even the strongest spikes from inflicting damage, data loss or corruption and audio/video performance problems on your connected equipment. EMI/RFI noise filtering protects your AC line from disruptive electromagnetic and radio interference.Just connect the space-saving NEMA 5-15P right-angle plug with 7-foot cord to an AC power source, and plug up to four devices into the NEMA 5-15R outlets. You can monitor AC power, incoming voltage level and AC line status using the seven diagnostic LEDs on the front panel. The compact LC1200 fits comfortably into your computer or home theater setup.
Technical Information
Protection Type:
  • Surge
  • EMI / RFI
  • Over Voltage
  • Brownout
Plug/Connector Type:
NEMA 5-15P
Receptacle Type:
NEMA 5-15R
Receptacles Detail:
4 x NEMA 5-15R
Power Description
Load Capacity (VA):
1200 W
Load Capacity (Watt):
1200 W
Input Voltage:
110 V AC
Input Voltage Range:
89 V AC - 147 V AC
Output Voltage:
120 V AC
Maximum Line Current:
10 A
Maximum Frequency:
60 Hz
Surge Energy Rating:
1200 J
Physical Characteristics
Cord Length:
6 ft
Form Factor:
Mini-tower
Height:
7.3"
Width:
6"
Depth:
7"
Miscellaneous
Package Contents:
  • LC1200 1200W Mini Tower Line Conditioner
  • LC1200 Line Conditioner
  • Instruction manual
Additional Information:
  • Voltage Regulation: +10%/-12%
  • Input voltages over 128V are reduced by 9.6%
  • Input voltages between 103 and 112V are boosted by 8.9%
  • Input voltages below 102V are boosted by 18.8%
  • Network grade AC surge suppression

Maintains regulated output voltage during severe brownouts and overvoltages for computer accessories, printers, home theater equipment, a/v components, point-of-sale equipment, and other applications requiring clean, regulated AC power.

Certifications & Standards:
  • IEEE 587 / ANSI C62.41
  • UL1012 (USA)
  • cUL1012 (Canada)
  • NOM (Mexico)
Country of Origin:
China
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0037332040022, 0777786387891, 0818240182130, 0993246537082, 0997851596823
UPC: 037332040022, 777786387891, 818240182130, 993246537082, 997851596823
EAN: 0037332040022, 0777786387891, 0818240182130, 0993246537082, 0997851596823
UNSPSC: 39121020
