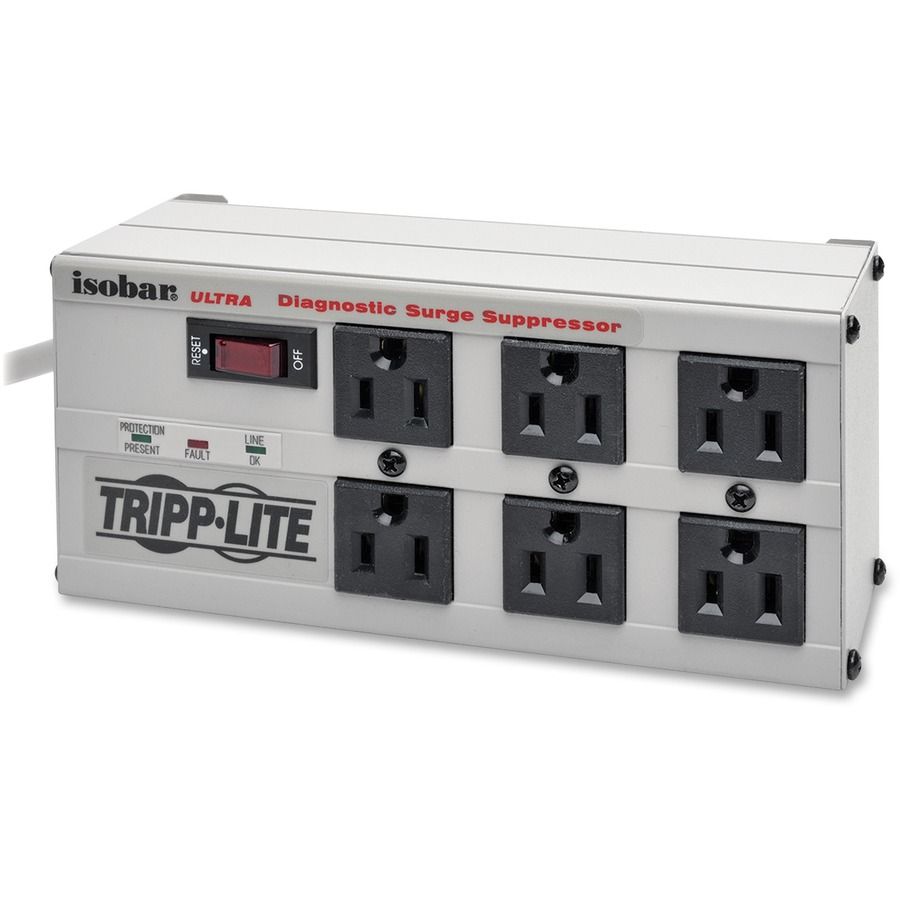

Tripp-Lite ISOBAR6ULTRA Accessory

Tripp-Lite - Tripp Lite Isobar Surge Protector Metal 6 Outlet 6' Cord 3330 Joules - 6 x NEMA 5-15R - 1440 VA - 3330 J - 120 V AC Input - 120 V AC Output
  • 6 outlets/6-ft cord
  • 3330 joule rating-more joules mean more protection!
  • All-metal housing with diagnostic LEDs
  • Isolated filter banks remove damaging line noise
  • $50,000 Ultimate Lifetime Insurance for connected equipment (U.S., Canada, and Puerto Rico only)
  • Lifetime warranty
Read More
$102.38
In Stock
Add to Quote
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite ISOBAR6ULTRA Accessory Overview

Isobar Premium surge and noise protector protects sensitive computer, networking and telecom equipment. Loaded with high-quality components, all-metal case and unique noise filtration system, the Isobar offers a high level of protection attainable in a multi-outlet strip. Robust surge suppression circuits with sine-wave tracking offer extreme levels of protection against the heaviest surge conditions. Surge protector offers six outlets arranged in three filter banks to prevent system crashes, reboots and performance problems common as noisy system peripherals are powered off and on. Surge suppression rated at 3330 joules/97,000 amps offers network-grade protection. Widely spaced NEMA 5-15 outlets accommodate up to four large transformer plugs without blocking outlets. Diagnostic LEDs confirm power availability, line fault and protection status. It includes 6' AC line cord with space-saving angled input plug, keyhole mounting tabs and a set of four child safety covers.

Technical Information
Plug/Connector Type:
NEMA 5-15P
Receptacles:
6 x NEMA 5-15R
Protection Type:
Surge
Power Description
Input Voltage:
120 V AC
Output Voltage:
120 V AC
Maximum Line Current:
15 A
Maximum Surge Current:
61 kA
Power Handling:
1440 VA
Surge Energy Rating:
3330 J
Controls/Indicators
Status Indicators:
  • Line OK
  • Line Fault
  • Protection Present
  • Physical Characteristics
    Product Color:
    Gray
    Power Cord/Cable Length:
    6 ft
    Height:
    2.5"
    Width:
    9"
    Depth:
    3.5"
    Weight (Approximate):
    2.18 lb
    Miscellaneous
    Package Contents:
    • Isobar 6 Outlets 120V Surge Suppressor
    • ISOBAR6ULTRA premium surge suppressor
    • Set of 4 outlet safety covers
    • Instruction manual with warranty information
    Additional Information:

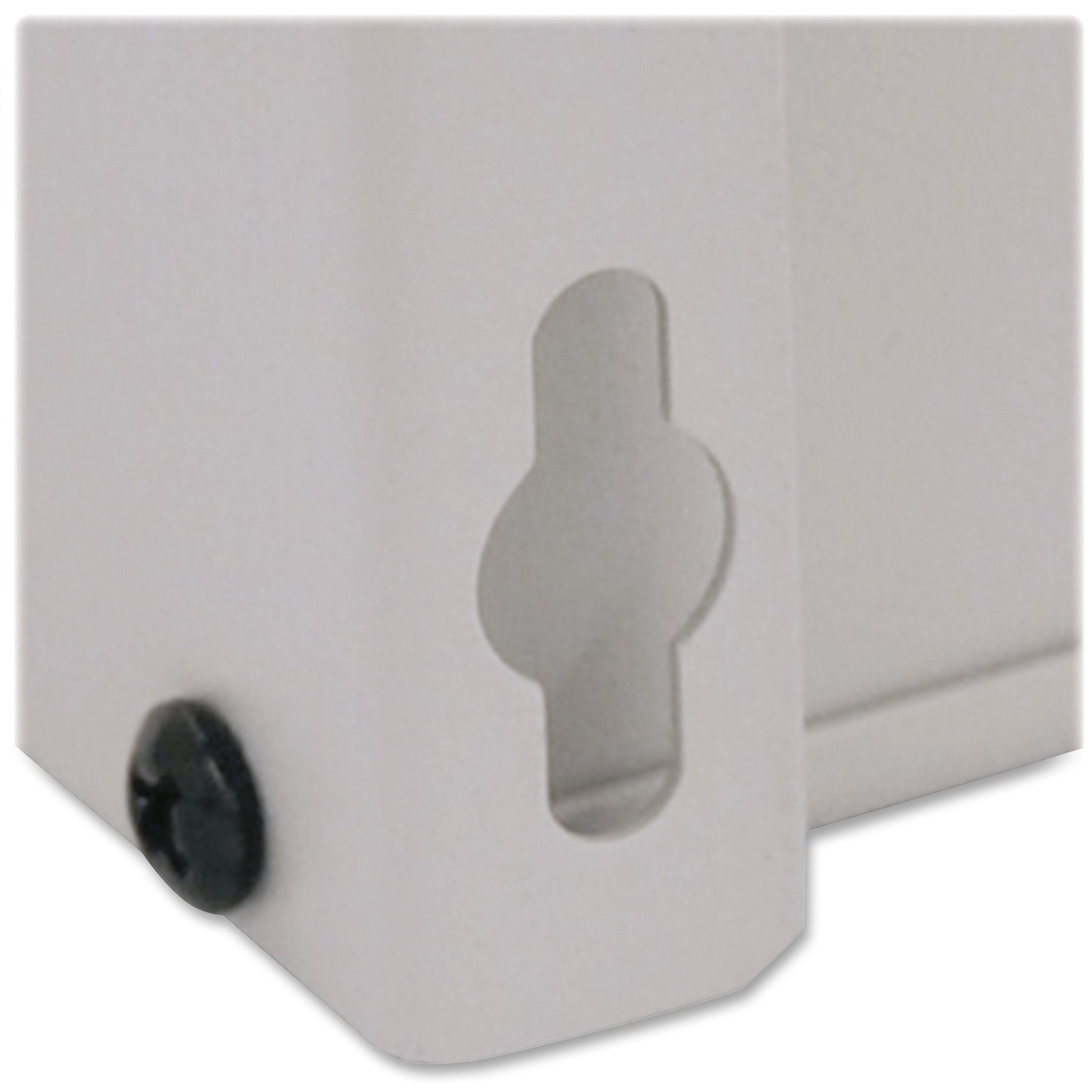

    • Metal end caps are fitted with keyhole mounting tabs for wallmount installation
    • Rugged all-metal corded strip format with high quality duplex receptacles
    • Supports up to 4 large transformer plug accessories without covering remaining outlets
    • Multi-component suppression circuits combine torroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors into exclusive isolated filter banks that remove EMI/RFI interference, even noise from other pieces of connected equipment
    Compatibility:
    • Ideal for premium AC and phone line protection for personal computers with peripherals, network and CAD/CAM/CAE workstations, internetworking accessories, telecommunications systems, point of sale equipment, audio / video and home theater systems in any home, office or industrial application
    Certifications & Standards:
    • UL1449 (let through rating 330V)
    • UL1283
    • UL1363
    • UL497A
    • FCC Part 68
    • cUL
    • IEEE 587 category A and B
    Recycled:
    No
    Assembly Required:
    No
    Country of Origin:
    China
    Warranty
    Limited Warranty:
    Lifetime
    Item Numbers
    GTIN: 0012303271230, 0037332010544, 0777779925703, 7111193666058
    UPC: 012303271230, 037332010544, 777779925703, 818242534135
    EAN: 0012303271230, 0037332010544, 0777779925703, 7111193666058
    UNSPSC: 39121610
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Tripp-Lite ISOBAR6ULTRA Accessory is also known as ISOBAR6ULTRA
