Tripp-Lite ISOBAR12ULTRA Products

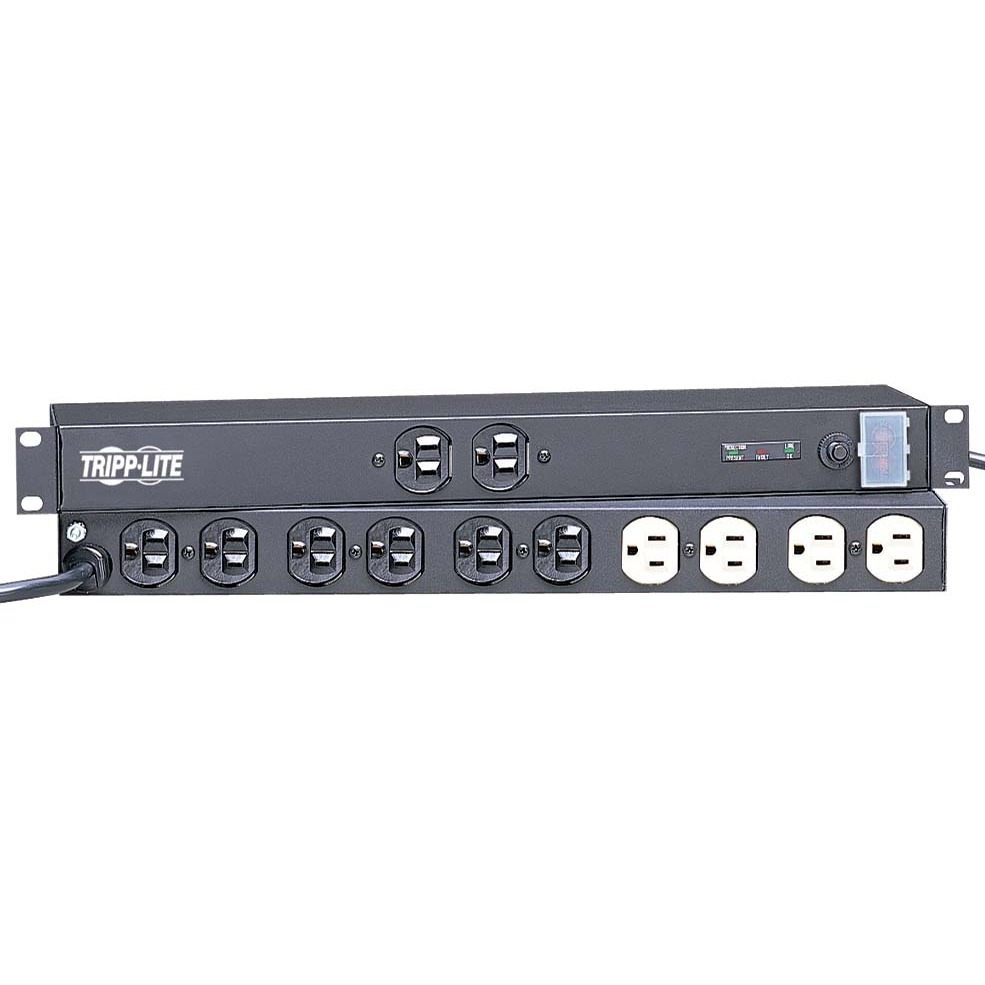

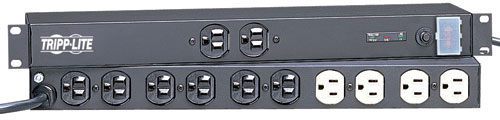

Tripp-Lite - Tripp Lite Isobar Surge Protector Rackmount Metal 12 Outlet 15' Cord 1U RM - Receptacles: 12 x NEMA 5-15R - 3840J
  • 12 outlets (2 front, 10 rear)
  • Extra-long 15-ft cord
  • 3840 joule rating-more joules mean more protection!
  • All-metal housing with diagnostic LEDs
  • Isolated filter banks remove damaging line noise
  • Switch safety cover prevents accidental shutoff
Read More
$198.34
In Stock
Add to Quote
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite ISOBAR12ULTRA Products Overview

Tripp Lite's ISOBAR12ULTRA offers network-grade surge and noise suppression in a versatile all-metal multi-mount cabinet. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Features the highest level of AC surge and EMI/RFI noise suppression of all Tripp Lite rackmount surge suppressors. Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items. Includes 12 outlets (2 front/10 rear), 15 ft AC power cord and guarded power switch to reduce the risk of accidental shutoff. Diagnostic LEDs indicate AC present, line fault and protection status. Lifetime warranty with $25,000 Ultimate Lifetime Insurance (USA & Canada Only) coverage .PLUG/OUTLETS: Input: NEMA 5-15P/Output: 12 NEMA5-15R (2 front & 10 rear)ELECTRICAL: 120V AC, 50/60Hz, 15A (Requires NEMA 5-15R wall receptacle)FORMAT: Supports 19 in. rackmount (uses 1 rack space/1U), wallmount, under-counter and more

Technical Information
Plug/Connector Type:
NEMA 5-15P
Receptacles:
12 x NEMA 5-15R
Protection Type:
Surge
Power Description
Input Voltage:
120 V AC
Output Voltage:
120 V AC
Maximum Line Current:
15 A
Maximum Surge Current:
96 kA
Power Handling:
1800 VA
Surge Energy Rating:
3840 J
Circuit Breaker:
Yes
Controls/Indicators
Status Indicators:
  • Line OK
  • Line fault
  • Protection present
  • Physical Characteristics
    Product Color:
    Black
    Power Cord/Cable Length:
    15 ft
    Height:
    1.8"
    Width:
    17.5"
    Depth:
    4"
    Weight (Approximate):
    4.60 lb
    Miscellaneous
    Package Contents:
    • Isobar 12-Outlets 120V Surge Suppressor
    • Warranty Information
    • Instruction Manual
    Additional Information:
    • Transparent locking switch cover prevents accidental shutoff
    • 2 front and 10 rear receptacles
    Compatibility:
    • Internetworking Equipment
    • Computers
    • Telecommunications Systems
    • Audio/Video Systems
    • Security & Sound Reinforcement
    Certifications & Standards:
    • UL1449 (let through rating 330V)
    • UL1283
    • cUL
    • IEEE 587 category A and B
    Environmentally Friendly:
    Yes
    Country of Origin:
    China
    Warranty
    Limited Warranty:
    Lifetime
    Item Numbers
    GTIN: 0037332011039, 0151903054352, 0997852509679, 4923213145909
    UPC: 037332011039, 151903054352, 743406339519, 997852509679
    EAN: 0037332011039, 0151903054352, 0997852509679, 4923213145909
    UNSPSC: 39121610
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Tripp-Lite ISOBAR12ULTRA Products is also known as ISOBAR12ULTRA
