Plug/Connector Type:
NEMA 5-15P
Receptacles:
6 x NEMA 5-15R
Dataline Protection:
RJ-11
Protection Type:
- Brownout
- Black Out
Cord Length:
6 ft
Transfer Time:
4 ms
Tripp-Lite UPS Accessory Model Overview
Tripp-Lite UPS and Power Supply products.

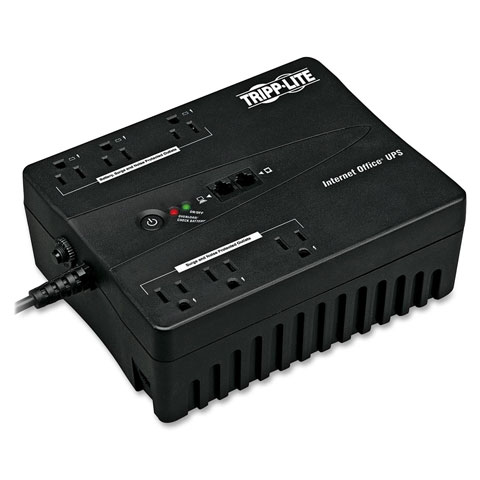

Tripp-Lite INTERNET350U UPS Overview
UPS offers standby protection for PCs and peripherals to prevent data loss and system downtime by providing battery-supported AC output during brownouts, blackouts and transient surges on both AC and dial-up modem lines. Wall-mountable, ultra-compact, flat-pack UPS includes three battery supported outlets for computer, monitor and one vital system peripheral plus three additional surge suppression-only outlets for printers and other system accessories not requiring battery support. Built-in, single-line, RJ11 phone suppression jacks with line splitter protects up to two directly connected modems, fax machines, cordless phones or other peripherals with a standard, dial-up phone connection. Built-in audible alarm and front panel LEDs offer continuous status information regarding line and battery power operation. 350VA/180 watt power handling ability supports entry-level PCs for up to 15 minutes during power failures.
Technical Information
Power Description
Load Capacity:
350 VA/180 W
Input Voltage:
110 V AC
Output Voltage:
120 V AC
Waveform Type:
Pulse-width Modulated Sine Wave
Surge Energy Rating:
316 J
Management
Alarm:
- On Battery
- Self-test Operation
Controls/Indicators
Status Indicators:
- Line Power
- Battery Power Status
Interfaces/Ports
Modem (RJ-11):
Yes
USB:
Yes
Battery Information
Battery Chemistry:
Sealed Lead Acid (SLA)
Backup/Run Time (Full Load):
2 Minute
Backup/Run Time (Half Load):
7 Minute
Battery Life:
6 Year
Typical Battery Recharge Time:
4 Hour
Hot Swappable:
Yes
Environmental Conditions
Maximum Operating Temperature:
122°F (50°C)
Sound Emission:
40 dB
Physical Characteristics
Color:
Black
Height:
4"
Width:
12"
Depth:
7"
Form Factor:
Ultra-compact Desk-mount
Weight (Approximate):
7.70 lb
Miscellaneous
Package Contents:
- Internet Office 350VA UPS
- UPS System
- USB communications cable
- Instruction manual with warranty information
Additional Information:
- Line mode BTU/hr. (Max.): 15.7
- Battery mode BTU/hr. (Max.): 53.2
- Cold Start: Inverter can be cold started to enable temporary AC output during a power failure
- Switches: Combination power off / on / self-test push button switch
Certifications & Standards:
- UL1778 (USA)
- cUL (Canada)
- FCC Class B (emissions)
- NOM (Mexico)
- FCC Part 68 / Industry Canada (telecommunications)
- Conforms to IEEE 587 / ANSI C62.41 specifications
Software Included:
PowerAlert Software
Assembly Required:
No
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
2 year warranty. $100,000connected equipment insurance (USA, Puerto Rico, & Canada Only).
