Plug/Connector Type:
NEMA 5-15P
Receptacles:
12 x NEMA 5-15R
Protection Type:
Surge
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.

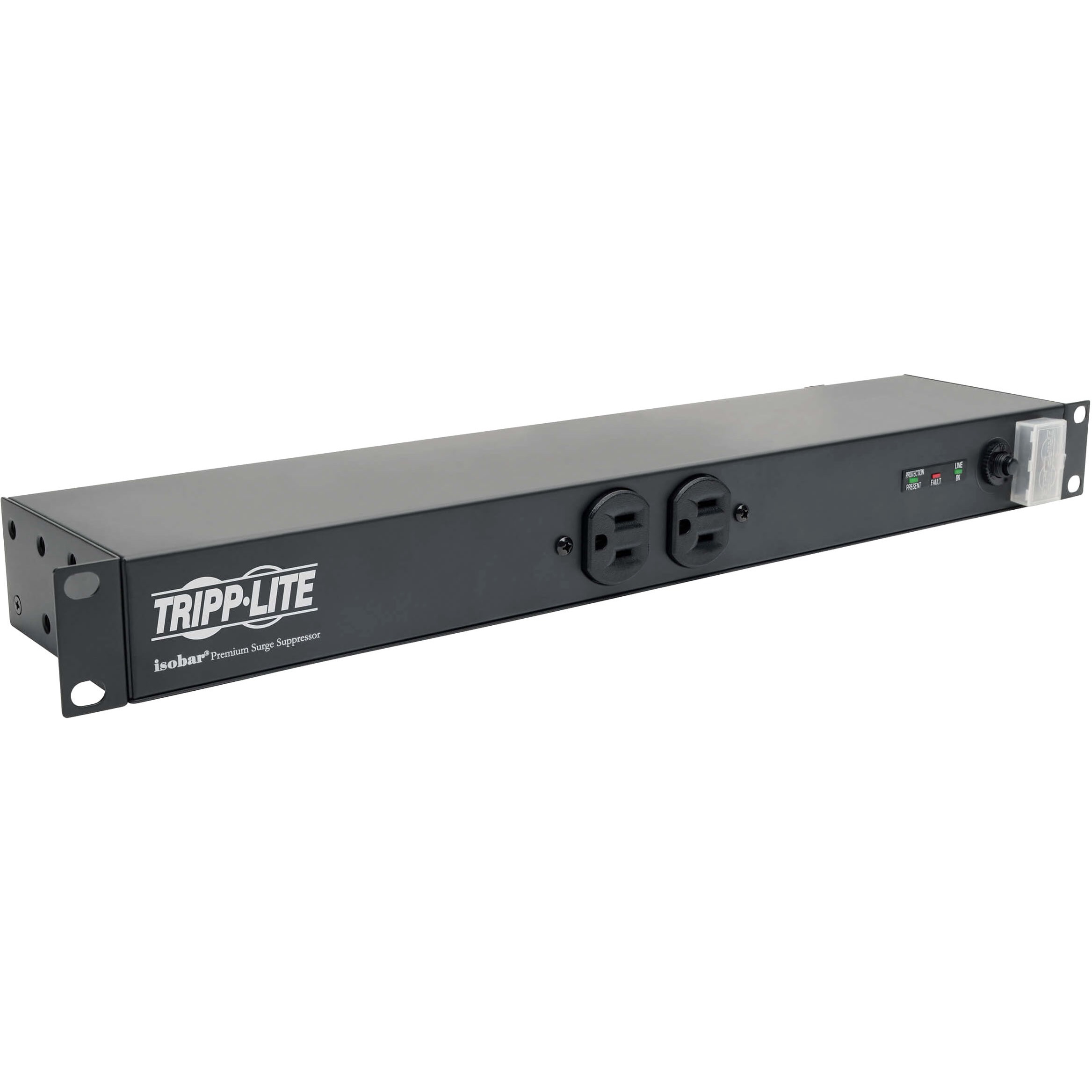

Tripp-Lite IBAR12 Power Device Overview
Tripp Lite's IBAR12 offers network-grade surge and noise suppression in a versatile all-metal multi-mount cabinet. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Features network grade AC surge suppression with EMI/RFI noise filtering. Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items. Includes 12 outlets (2 front/10 rear), 15 ft AC power cord and guarded power switch to reduce the risk of accidental shutoff. Lifetime warranty with $25,000 Ultimate Lifetime Insurance (USA & Canada Only) coverage.PLUG/OUTLETS: Input: NEMA 5-15P/Output: 12 NEMA5-15R (2 front & 10 rear)ELECTRICAL: 120V AC, 50/60Hz, 15A (Requires standard NEMA 5-15R wall receptacle)SUPPRESSION: AC: 140V RMS Clamping/3840 joules/60,000 ampsFORMAT: Supports 19 in. rackmount (uses 1 rack space/1U), wallmount, under-counter and more
Technical Information
Power Description
Input Voltage:
120 V AC
Output Voltage:
120 V AC
Maximum Line Current:
15 A
Maximum Surge Current:
60 kA
Power Handling:
1800 VA
Surge Energy Rating:
3840 J
Circuit Breaker:
Yes
Physical Characteristics
Product Color:
Black
Power Cord/Cable Length:
15 ft
Height:
1.8"
Width:
17.5"
Depth:
4"
Weight (Approximate):
4.60 lb
Miscellaneous
Package Contents:
- Isobar 12 Outlets 120V Surge Suppressor
- IBAR12 Surge Suppressor
- Warranty information
- Instruction manual
Additional Information:
- Transparent locking switch cover prevents accidental shutoff
- Snap-in switch guard reduces risk of accidental shutoff
- 2 front and 10 rear receptacles
Compatibility:
- Ideal for the protection of sensitive electronic equipment such as internetworking equipment, PC systems, telecommunications, audio/video, security and sound reinforcement
Certifications & Standards:
- UL1449 (let through rating 330V)
- UL1283
- cUL
- IEEE 587 category A and B
Country of Origin:
China
Warranty
Limited Warranty:
Lifetime
