Tripp-Lite ECO750UPS Products

Part Number: ECO750UPS
Model: Parts
Add to My Shopping List Add to Compare
$103.18
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Plug/Connector Type
NEMA 5-15P
Receptacle Type
NEMA 5-15R
Receptacle Detail
12 x NEMA 5-15R
Number of Battery & Surge Outlets
6

Product Description:

  Tripp Lite UPS 750VA 450W Eco Green Battery Back Up Compact 120V USB RJ11 50/60Hz - Desktop - 20 Hour Recharge - 2 Minute Stand-by - 110 V AC Input - 120 V AC, 120 V AC Output - 12 x NEMA 5-15R
Explore all Tripp-Lite Parts Accessories
Add to Quote
Tripp-Lite ECO750UPS Products
Tripp-Lite ECO750UPS Products
Tripp-Lite ECO750UPS Products
Tripp-Lite ECO750UPS Products
Tripp-Lite ECO750UPS Products
Tripp-Lite ECO750UPS Products
Tripp-Lite ECO750UPS Products Tripp-Lite ECO750UPS Products Tripp-Lite ECO750UPS Products Tripp-Lite ECO750UPS Products Tripp-Lite ECO750UPS Products Tripp-Lite ECO750UPS Products

Tripp-Lite Parts Accessory Model Overview

Products and parts from Tripp-Lite.
Tripp-Lite ECO750UPS Products Overview

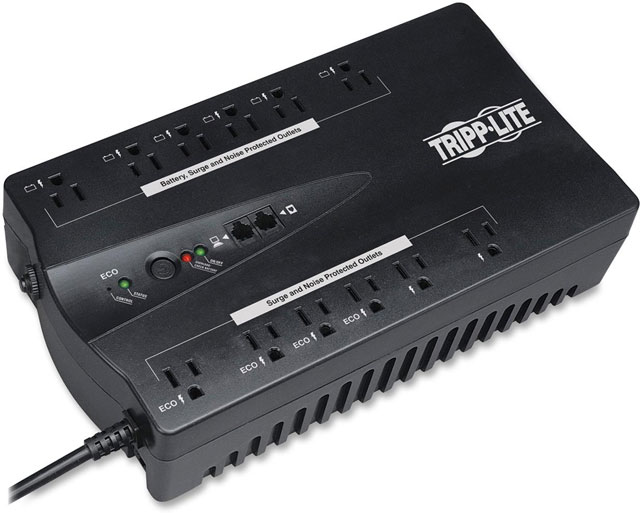

Ultra-high efficiency ECO Series UPS System saves energy by automatically powering off unused computer accessories when the computer is not in use. UPS system uses less electricity than conventional models. Design includes six battery-supported outlets for computer, monitor and four vital system peripherals, plus six additional surge suppression-only outlets for accessories not requiring battery support. Four of the surge-only outlets are designated Eco outlets that can be configured to automatically power off when the computer enters standby mode or is shutdown. USB port enables UPS configuration options and unattended system shutdown without data loss in the case of extended power failure. Built-in, single-line RJ11 phone suppression protects modem, fax machine, cordless phone or other accessories with a dialup/DSL phone connection. UPS system meets RoHS standards. 750VA/450-watt power handling ability supports entry-level PC systems for up to 45 minutes during power fail conditions.

More from the Manufacturer

Technical Information
Plug/Connector Type:
NEMA 5-15P
Receptacle Type:
NEMA 5-15R
Receptacle Detail:
12 x NEMA 5-15R
Number of Battery & Surge Outlets:
6
Number of Surge-only Outlets:
6
Dataline Protection:
  • RJ-11
  • RJ-45
Transfer Time:
6 ms
EMI/RFI Noise Filter:
Yes
Phase:
Single Phase
Energy Saving:
Greater than 95% efficiency - GREEN UPS; Power saving auto-shutoff ECO outlets
Application/Usage:
  • Kiosk
  • Security System
  • Business
  • Computer
  • Router
  • Printer
  • TV
  • Blu-ray Player
  • Gaming Console
  • ATM
  • Digital Signage
Power Description
Load Capacity (VA):
750 VA
Load Capacity (Watt):
450 W
Input Voltage:
120 V AC
Output Voltage:
  • 110 V AC
  • 115 V AC
  • 120 V AC
Input Frequency:
60 Hz
Output Frequency:
60 Hz
Waveform Type:
Pure Sine Wave
Surge Energy Rating:
316 J
Management
Alarm:
  • Low Battery
  • Fault
  • Overload
  • Replace Battery
Controls/Indicators
Status Indicators:

3 Status LEDs; GREEN #1 LED reports ECO mode off/on status; GREEN #2 LED reports line/battery mode operation, low-battery condition, overload and replace-battery notifications; RED LED reports battery-low, overload, replace-battery and fault conditions

Interfaces/Ports
USB:
Yes
USB (HID Compliant) Port:
Yes
Battery Information
DC System Voltage:
12 V DC
Backup/Run Time (Full Load):
2 Minute
Backup/Run Time (Half Load):
8.60 Minute
Typical Battery Recharge Time:
6.50 Hour
Replaceable Battery:
Yes
Environmental Conditions
Maximum Operating Temperature:
104°F (40°C)
Storage Temperature:
5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation:
10000 ft
Physical Characteristics
Height:
3.4"
Width:
5.1"
Depth:
12.2"
Form Factor:
Ultra-compact Desktop/Tower/Wall Mount
Weight (Approximate):
6.82 lb
Miscellaneous
Package Contents:
  • ECO 750VA Desktop UPS
  • Owner's Manual
  • USB Cable
Additional Information:
  • 99% line-mode efficiency saves energy and operating costs
  • 4 built-in "ECO" outlets save power by automatically turning off connected accessories when the computer is not in use
  • Input cord length 6 ft / 1.8m
  • This product is ENERGY STAR qualified for its ability to save customers money while helping to protect the environment
Certifications & Standards:

UL Listed Certification

Recycled:
No
Assembly Required:
No
Energy Star:
Yes
Country of Origin:
Vietnam
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:

2 year $100,000 connected equipment guarantee

Item Numbers
GTIN: 0037332143846, 0037332211118, 0373321438464, 0635665351749, 0818214624451
UPC: 037332143846, 037332211118, 373321438464, 635665351749, 818214624451
EAN: 0037332143846, 0037332211118, 0373321438464, 0635665351749, 0818214624451
UNSPSC: 39121011
The Tripp-Lite ECO750UPS Products is also known as POW-ECO750UPS or ECO750UPS.
