Device Supported:
- Flat Panel Display
- Curved Screen Display
- Monitor
Number of Displays Supported:
1
Maximum Load Capacity:
88 lb
Maximum Screen Size Supported:
80"
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite DWMSC3780MUL Accessory Overview

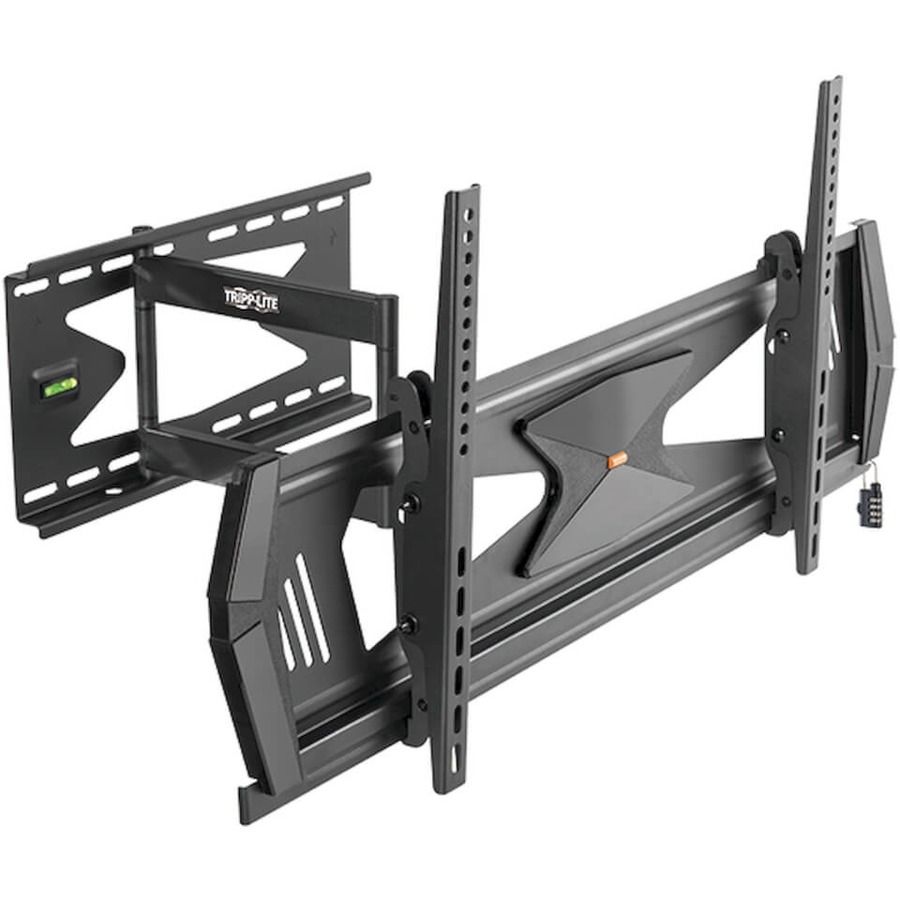

Security wall mount with combination lock hangs your flat-panel or curved-screen television or monitor.
Features
Security Wall Mount Hangs Your Flat-Panel or Curved-Screen TV or Monitor
Ideal for home theaters, classrooms, conference rooms, hotels, bars, restaurants or anywhere else you may want to show off a television or monitor, this heavy-duty TV wall mount is hidden out of sight behind the display for a sleek, professional appearance. It fits most flat-panel or curved-screen displays from 37 to 80 inches and up to 88 pounds. Mounting hardware is included.
Durable All-Metal Construction Provides Convenient Cable Access
The curved-TV wall mount is constructed from heavy-duty steel with a powder-coated black finish that resists scratches. Rear openings with smooth edges enable easy access to cables. A built-in bubble level helps ensure your display is evenly mounted. This heavy-duty wall mount is function- and weight-tested to 200 pounds in accordance with UL Standard 2442.
Designed to Keep Your Display Safe and Secure
This security wall mount was conceived with your television or monitor's safety in mind, especially if the display is located in a public area with much unguarded traffic, such as a library, classroom or hotel lobby. It comes with a solid steel security bar that slides through the mounting brackets and is secured into place with an included four-position combination lock.

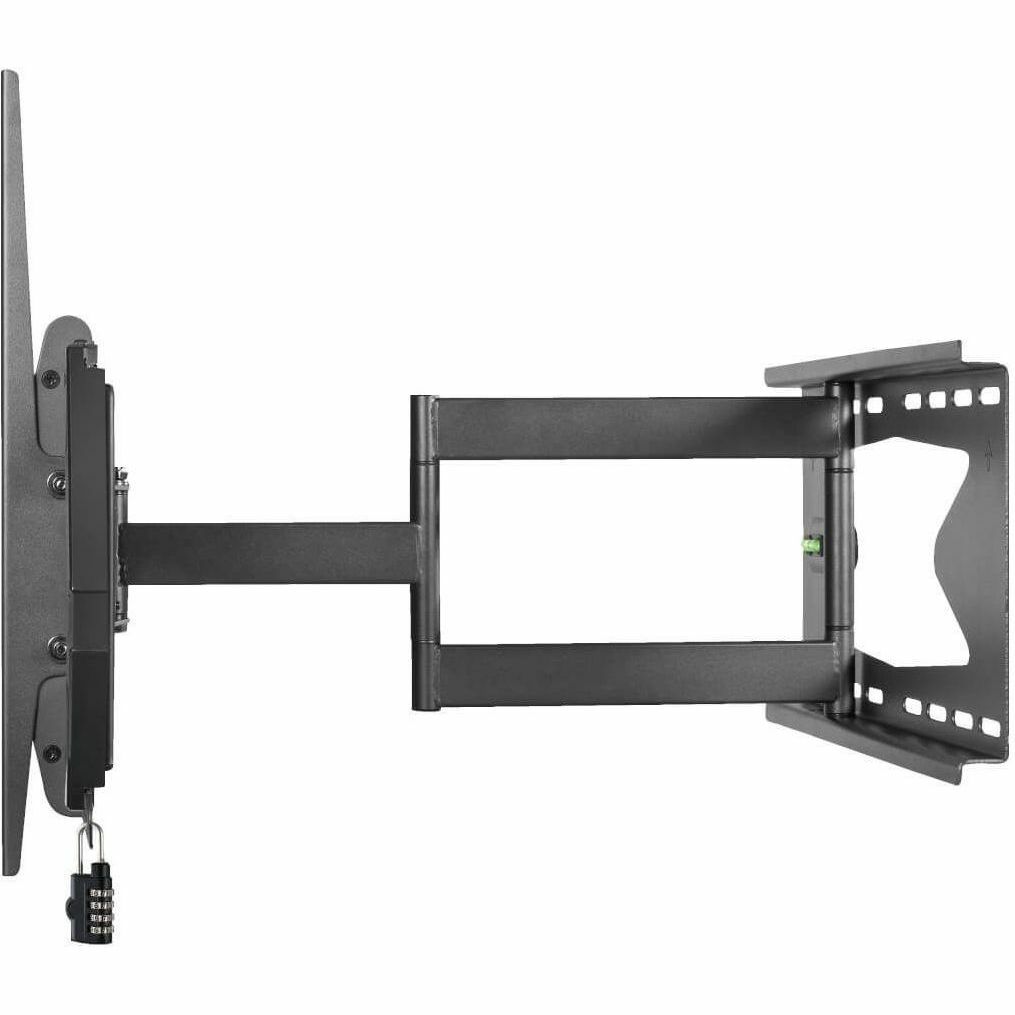

Tilt and Swivel Features Let You Adjust the Viewing Angle to Your Specifications
The full-motion TV wall mount allows adjustment of your display's horizontal angle from -10° to +5°. It also swivels your monitor or television 90° left to right. This will minimize glare on the screen and allow you to customize the angle for comfortable viewing.
Complies with VESA Standards
VESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing industry-wide standards for products like flat-panel TVs and monitors. To comply with these standards, most manufacturers use a series of universal mounting hole patterns, measured in millimeters, on the backs of the products. Measure the vertical and horizontal distances between the holes on the back of your display or refer to your display's owner's manual to find its VESA pattern. This heavy-duty wall mount conforms to VESA-compliant displays with any of the following standard mounting hole patterns: 300 x 300, 400 x 200, 400 x 400, 600 x 400 and 800 x 400.
Features
Security Wall Mount Hangs Your Flat-Panel or Curved-Screen TV or Monitor
Ideal for home theaters, classrooms, conference rooms, hotels, bars, restaurants or anywhere else you may want to show off a television or monitor, this heavy-duty TV wall mount is hidden out of sight behind the display for a sleek, professional appearance. It fits most flat-panel or curved-screen displays from 37 to 80 inches and up to 88 pounds. Mounting hardware is included.
Durable All-Metal Construction Provides Convenient Cable Access
The curved-TV wall mount is constructed from heavy-duty steel with a powder-coated black finish that resists scratches. Rear openings with smooth edges enable easy access to cables. A built-in bubble level helps ensure your display is evenly mounted. This heavy-duty wall mount is function- and weight-tested to 200 pounds in accordance with UL Standard 2442.
Designed to Keep Your Display Safe and Secure
This security wall mount was conceived with your television or monitor's safety in mind, especially if the display is located in a public area with much unguarded traffic, such as a library, classroom or hotel lobby. It comes with a solid steel security bar that slides through the mounting brackets and is secured into place with an included four-position combination lock.
Tilt and Swivel Features Let You Adjust the Viewing Angle to Your Specifications
The full-motion TV wall mount allows adjustment of your display's horizontal angle from -10° to +5°. It also swivels your monitor or television 90° left to right. This will minimize glare on the screen and allow you to customize the angle for comfortable viewing.
Complies with VESA Standards
VESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing industry-wide standards for products like flat-panel TVs and monitors. To comply with these standards, most manufacturers use a series of universal mounting hole patterns, measured in millimeters, on the backs of the products. Measure the vertical and horizontal distances between the holes on the back of your display or refer to your display's owner's manual to find its VESA pattern. This heavy-duty wall mount conforms to VESA-compliant displays with any of the following standard mounting hole patterns: 300 x 300, 400 x 200, 400 x 400, 600 x 400 and 800 x 400.
Product Information
Physical Characteristics
Product Color:
Black
Mounting Pattern:
- 300 x 300
- 400 x 200
- 400 x 400
- 600 x 400
- 800 x 400
Height:
21.6"
Width:
38.8"
Depth:
17.3"
Weight (Approximate):
22 lb
Miscellaneous
Package Contents:
- Wall Plate
- 2 x Adapter Brackets
- Security Bar
- Wall Plate Level
- 2 x End Caps
- 4 x End Cap Screws
- 2 x Anti-skid Blocks
- 4 x M5 x 14 Screws
- 4 x M6 x 14 Screws
- 4 x M6 x 30 Screws
- 4 x M8 x 20 Screws
- 4 x M8 x 30 Screws
- 4 x Washers
- 8 x Small Spacers
- 4 x Large Spacers
- 5 x Anchor Bolts
- 5 x Concrete Anchors
- 5 x 20 mm Washers
- Combination Lock
- Owner's Manual
Country of Origin:
China
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN:
0037332225061, 0818242027378, 0818243170349
UPC:
037332225061, 818242027378, 818243170349
EAN:
0037332225061, 0818242027378, 0818243170349
UNSPSC:
31162313
Get help from a Barcoding Expert!
The Tripp-Lite DWMSC3780MUL Accessory is also known as
DWMSC3780MUL
