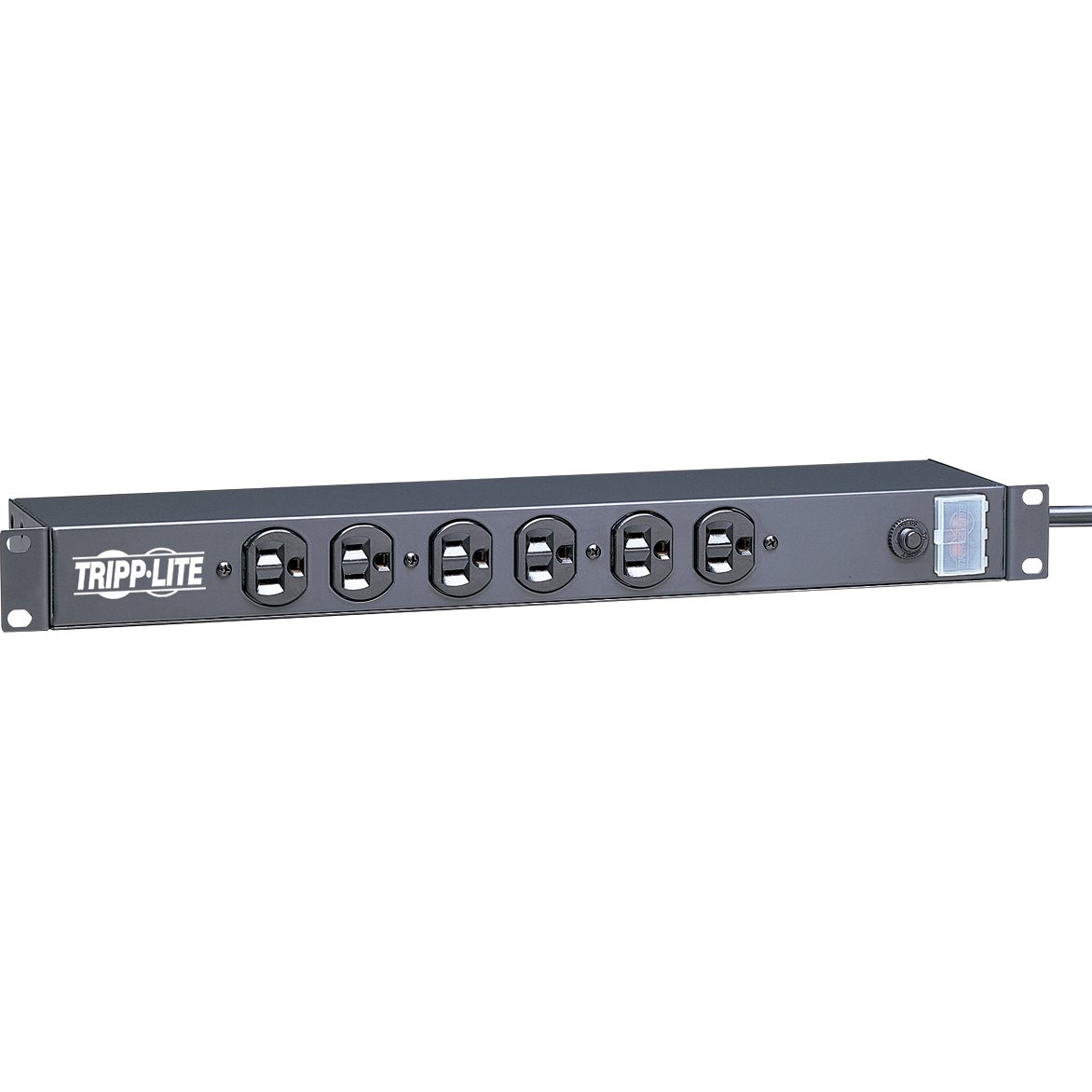

Tripp-Lite DRS-1215 Accessory

Tripp Lite's DRS-1215 offers surge and noise suppression in a versatile all-metal multi-mount cabinet. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Includes 14 outlets (6 front/8 rear), 15-ft. (4.57 m) AC power cord and guarded power switch to reduce the risk of accidental shutoff. Diagnostic LED indicates surge protection status.

PLUG/OUTLETS: Input: NEMA 5-15P/Output: 14 NEMA5-15R (6 front & 8 rear)

ELECTRICAL: 120V AC, 50/60Hz, 15A (Requires NEMA 5-15R wall receptacle)

SUPPRESSION: AC: 140V RMS Clamping/3000 joules

FORMAT: Supports 19 in. rackmount (uses 1 rack space/1U), wallmount, under-counter and more

Features

• Versatile all-metal cabinet with detachable mounting flanges allows rackmount, undercounter and other creative mounting options
• Uses one rack space (1U) in standard 19 inch rack ("zero U" mounting possible in many racks)
• 3000 joules AC surge suppression with EMI/RFI filtering
• 14 NEMA 5-15R output receptacles (6 front/8 rear)
• 15-ft. (4.57 m) AC cord with NEMA 5-15P straight-in plug connection
• Diagnostic LED confirms suppressor operation
• Lighted power switch confirms power on/off status
• Snap-in switch guard prevents accidental turn off
• 15 amp capacity with circuit breaker
• 120V AC, 50/60Hz electrical compatibility
