Tripp-Lite BP36V27-2US Power Device

Part Number: BP36V27-2US
Model: Parts
to get Free Ground Shipping on your order.
$1,198.78

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Battery Chemistry
Lead Acid
Minimum Battery Life
4 Year
Maximum Battery Life
6 Year
Output Voltage
36 V DC

Product Description:

  EXTERNAL 36V 2U RACK/TOWER BATTERY PACK FOR SELECT TRIPP LITE UPS SYSTEMS (BP36V27-2US)

Tripp-Lite Parts Accessory Model Overview

Products and parts from Tripp-Lite.
Tripp-Lite BP36V27-2US Power Device Overview
External Battery Pack Gives Your Compatible Tripp Lite UPS System Extended Runtime

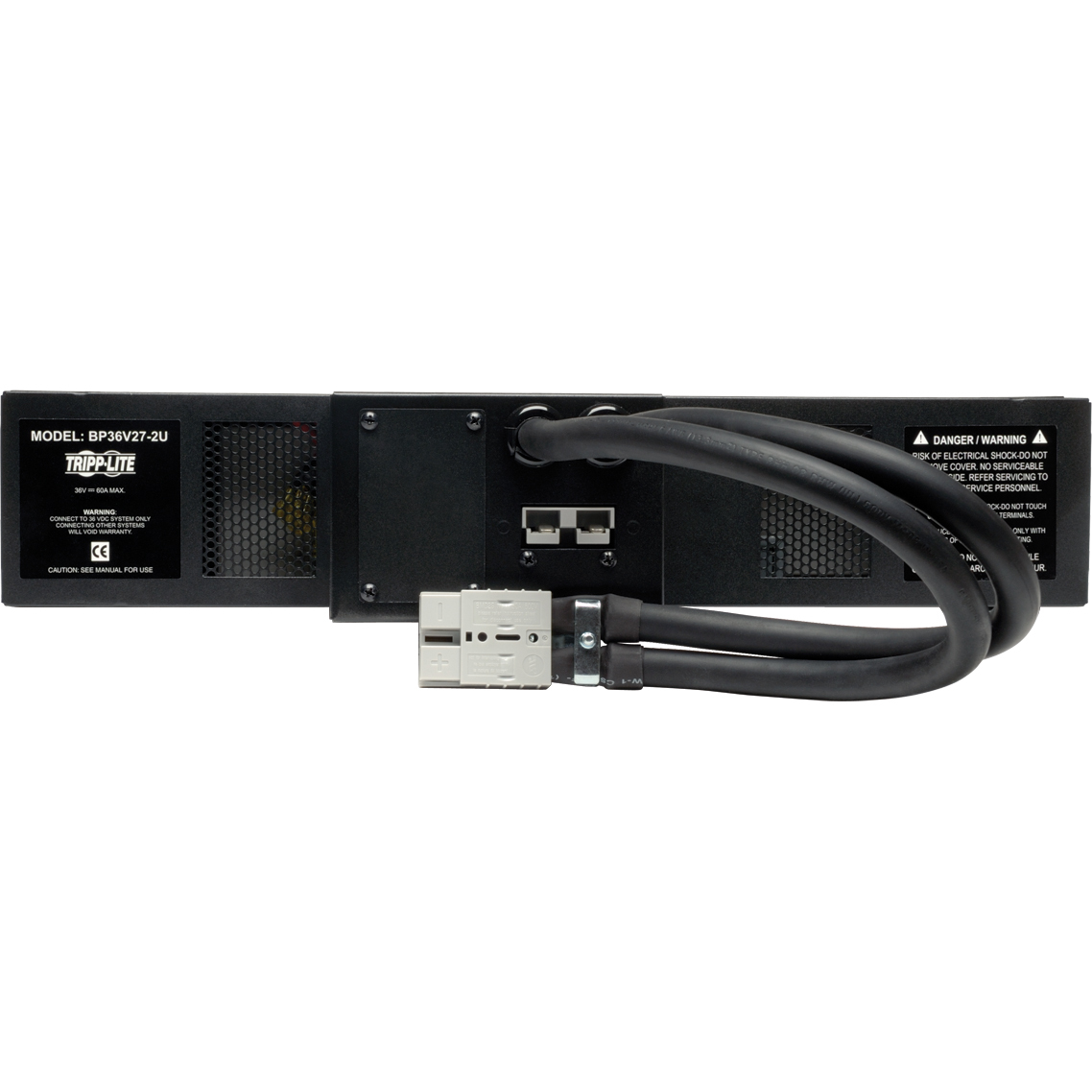

The BP36V27-2US is compatible only with select 36V DC Tripp Lite UPS systems that specify the use of this battery pack. Not only does it provide extended runtime, but it can also be daisy-chained using its rear connector to additional external battery packs for even longer extended-run operation. Heavy-gauge cabling with high-current two-point DC connector is included for simple installation. Optional-use rear-panel battery detection jacks automatically configure host UPS systems supporting this feature for one or more external battery packs.

Versatile Installation Options Allow You to Place the Battery Where Most Needed

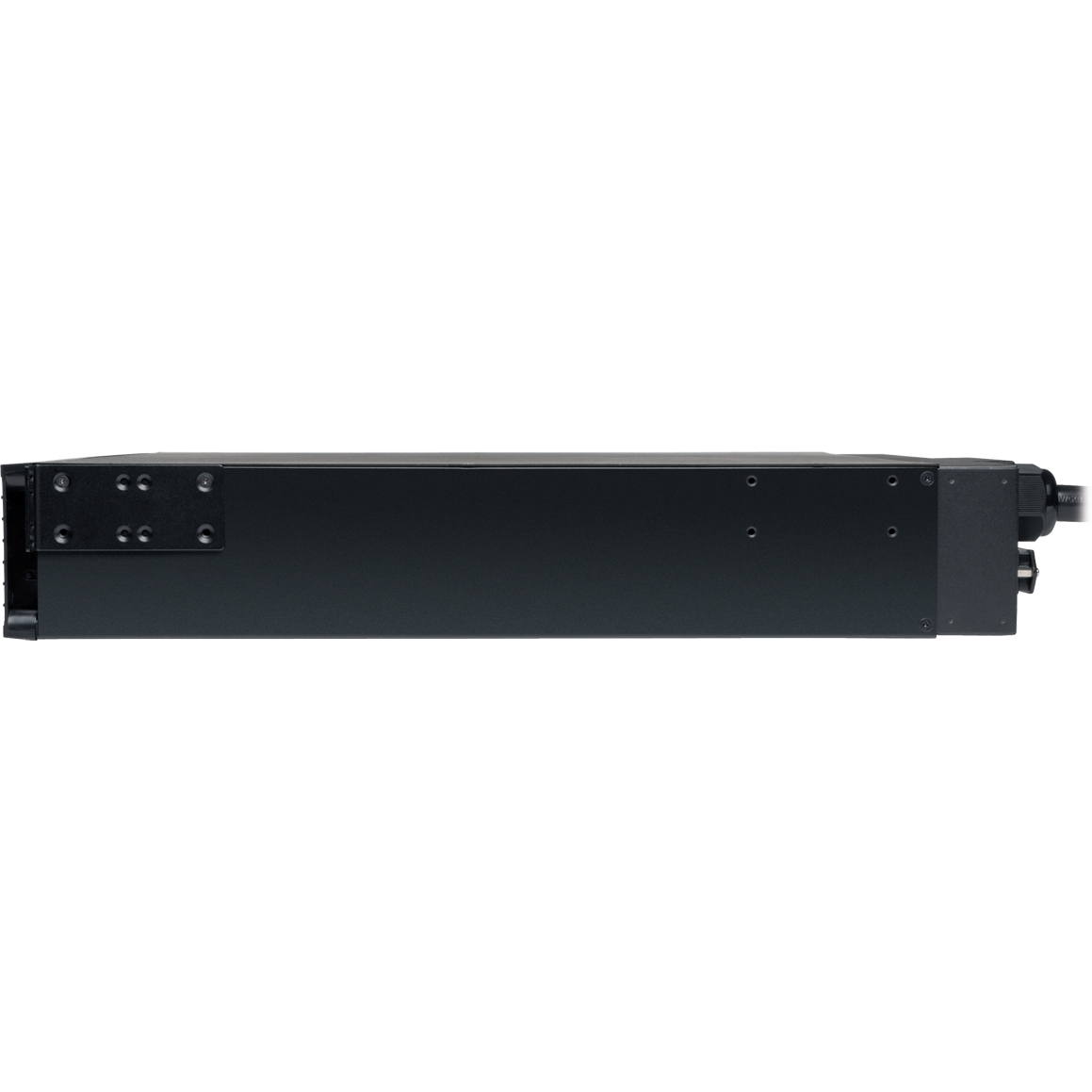

The steel housing supports mounting in 2U of space in EIA-standard 19-inch racks using the included 4-post rack-mounting brackets. The BP36V27-2US is also compatible with Tripp Lite's 2-9USTAND for upright tower configuration, 2POSTRMKITWM for 2-post racks or wall installation and UPDHDEARKIT for 2-point front-rail rack installation without rear supports (all accessories sold separately).

2-Year Warranty
The BP36V27-2US is backed by a 2-year warranty, ensuring reliability and performance.
Technical Information
Battery Chemistry:
Lead Acid
Minimum Battery Life:
4 Year
Maximum Battery Life:
6 Year
Output Voltage:
36 V DC
Physical Characteristics
Form Factor:
Tower/Rack Mountable
Rack Height:
2U
Height:
3.4"
Width:
17.3"
Depth:
22.6"
Weight (Approximate):
68.90 lb
Shipping Height:
9.50"
Shipping Width:
26.50"
Shipping Depth:
28.50"
Shipping Weight (Approximate):
105 lb
Miscellaneous
Package Contents:
  • BP36V27-2US - 2U External 36V Rack/Tower Battery Pack for Select UPS Systems
  • 4 Post Compatible Mounting Hardware
  • Owner's Manual
Compatibility:
Tripp Lite UPS:
  • SMART1000RMXL2U
  • SMART1200XLHG
  • SMART1500RMXL2UA
  • SMART1500RMXLN
  • SMART1500XL
  • SMX1200XLHG
  • SMX1500XLRT2U
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
Taiwan
TAA Compliant:
Yes
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0014445013167, 0037332181770, 0037332230966, 0742942306207, 4913393107286, 7049669622331
UPC: 014445013167, 037332181770, 037332230966, 742942306207
EAN: 0014445013167, 0037332181770, 0037332230966, 0742942306207, 4913393107286, 7049669622331
UNSPSC: 26111707
