Tripp-Lite BHDBT-K-SI-LR Power Device

Tripp-Lite - Tripp Lite HDBaseT HDMI Over Cat5e Cat6 Cat6a Extender Kit with Serial / IR Control 4K x 2K @ 24/30Hz 100m 328ft - 1 Input Device - 1 Output Device - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 3840 x 2160 - Category 6a - Pole-mountable, Wall Mountable, Rack-mountable"
  • Extends a 1080p @ 60 Hz signal up to 328 feet (100 m)
  • Extends a 3840 x 2160 (4K x 2K) signal up to 328 feet (100 m)
  • Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD
  • Controls RS-232 serial devices at baud rates up to 115 Kbps
  • Allows you to control a Blu-ray™ player from a remote monitor
Read More
$516.55
In Stock
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite BHDBT-K-SI-LR Power Device Overview

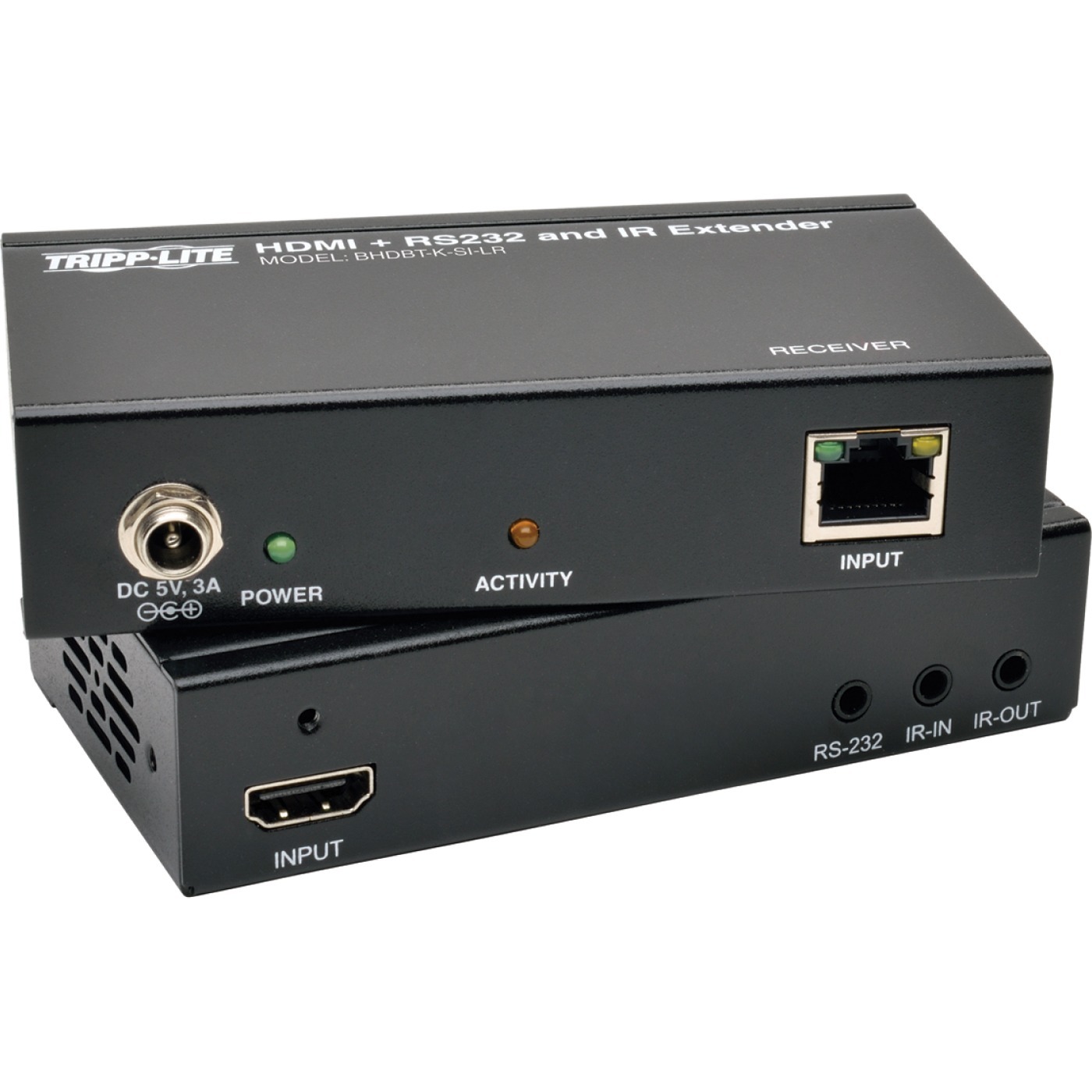

The BHDBT-K-SI-LR HDBaseT Extender Kit allows you to transmit HDMI audio and video, RS-232 serial and IR Remote Control signals up to 328 feet(100 m) over a single Cat5e/6/6a cable. This includes 1920 x 1080(1080p) signals @ 60 Hz and even Ultra High Definition(UHD) 3840 x 2160(4K x 2K) @ 24/30Hz video signals. Add up to five Tripp Lite BHDBT-TR-SI-LR transceivers(sold separately) between the transmitter and receiver units to further expand the range up to 2,000 feet(600 m) with a monitor connected via HDMI port to each transceiver.You can also control RS-232 serial devices, such as touchscreen displays or scanners, at baud rates up to 115 Kbps. The BHDBT-K-SI-LR's 2-way IR Remote Control feature(@ 39 KHz) lets you control your Blu-ray player using its remote when at the remote monitor or control your remote monitor using its remote when at the Blu-ray player. Locking HDMI ports(ideal for use with Tripp Lite's High-Speed HDMI cables with locking connectors, such as P569-006-LOCK) on both the transmitter and receiver prevent cables from coming loose or undone, ensuring an intact signal. The BHDBT-K-SI-LR supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Included mounting hardware lets you attach each unit to a wall, rack or pole. There's no software to download or install, and you can have the BHDBT-K-SI-LR Extender Kit set up and ready to go quickly. Compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases.
Technical Information
Connectivity Technology:
Wired
Number of Input Devices Supported:
1
Number of Output Devices Supported:
1
Maximum Operating Distance:
328 ft
Video
Graphics Modes:
4K
Maximum Video Resolution:
3840 x 2160
Interfaces/Ports
Network (RJ-45):
Yes
HDMI In:
Yes
HDMI Out:
Yes
Number of Network (RJ-45) Ports:
2
Number of HDMI Inputs:
1
Number of HDMI Outputs:
1
Media & Performance
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 6a
Power Description
Input Voltage:
  • 5 V DC
  • 120 V AC
  • 230 V AC
Physical Characteristics
Product Color:
Black
Form Factor:
  • Pole-mountable
  • Wall Mountable
  • Rack-mountable
Transmitter Weight (Approximate):
1.05 lb
Miscellaneous
Package Contents:
  • Transmitter
  • Receiver
  • IR-IN and IR-OUT Cables
  • 3.5 mm Male to DB9 Female Adapter Cable
  • 3.5 mm Male to DB9 Male Adapter Cable
  • 2 x  External Power Supplies (Input: 100-240V, 50/60 Hz, 0.5A Output: 5V, 3A)
  • Mounting Hardware
  • Owner's Manual
Certifications & Standards:
  • TAA
  • CE
  • FCC
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • REACH
Country of Origin:
Taiwan
TAA Compliant:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0037332187093, 0803929452376
UPC: 037332187093, 803929452376
EAN: 0037332187093, 0803929452376
UNSPSC: 45111815
