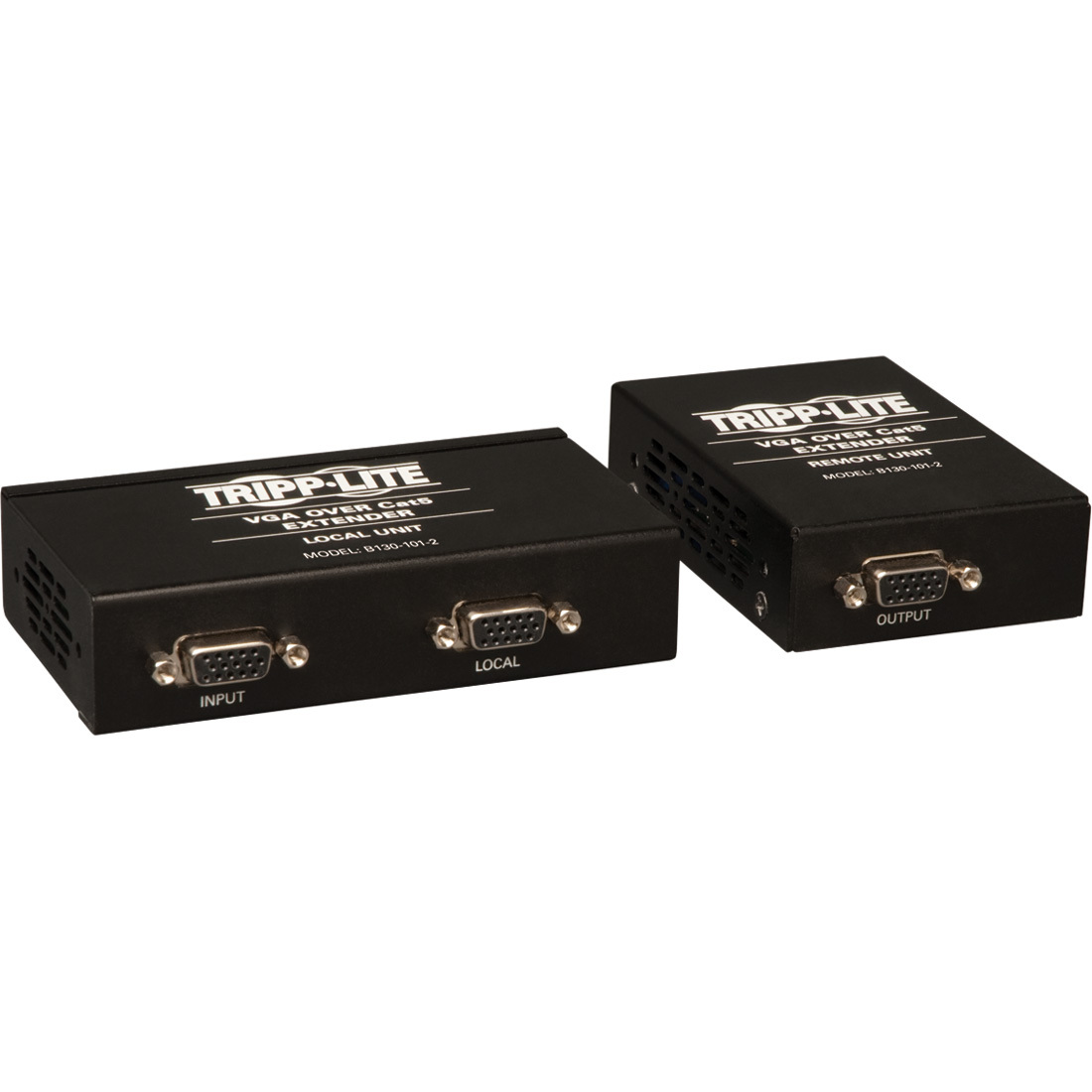

Tripp-Lite B130-101-2 Power Device

Tripp-Lite - Power Systems & Supplies, Tripp-Lite, VGA over Cat5/6 Extender Kit, Box-Style Transmitter/Receiver for Video, Up to 1000'' (305 m), TAA
  • Extends a 1920 x 1440 (60Hz) video signal up to 500 ft., or a 1024 x 768 (60Hz) video signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
  • EDID copy feature ensures optimal display compatibility
  • Can further expand the range and number of monitors by adding B132-110 repeaters
  • For optimal image quality between 500 and 1, use Zero-Skew cable, such as Tripp Lite P524-01K
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Read More
$147.29
Add to Quote
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite B130-101-2 Power Device Overview

Tripp Lite's B130-101-2 allows you to extend a 1920 x 1440 (60Hz) video signal up to 500 ft., or a 1024 x 768 (60Hz) video signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6). The range and number of monitors can be further expanded by adding B132-110 repeater units. Connect up to 3 repeaters, with the B130-101-2 receiver at the end of the chain, for a total of 4 monitors. A 1920 x 1440 (60Hz) signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver. For optimal image quality between 500 and 1, use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image. Includes mounting hardware for both local and remote units, allowing them to be wallmounted, rackmounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc.

More from the Manufacturer

Technical Information
Connectivity Technology:
Wired
Number of Input Devices Supported:
1
Number of Output Devices Supported:
2
Maximum Operating Distance:
1000 ft
Video
Maximum Video Resolution:
1920 x 1440
Interfaces/Ports
Network (RJ-45):
Yes
VGA In:
Yes
VGA Out:
Yes
Number of Network (RJ-45) Ports:
2
Number of VGA Inputs:
1
Number of VGA Outputs:
2
Media & Performance
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 6
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Product Color:
Black
Form Factor:
  • Wall Mountable
  • Rack-mountable
  • Pole-mountable
Miscellaneous
Package Contents:
  • Local (Transmitter) Unit 1 x 4.5 x 2.5 (in.)
  • Remote (Receiver) Unit 1 x 2.5 x 3.5 (in.)
  • Mini-Screwdriver for EQ/Gain Adjustment
  • 2 x Mounting Hardware Kits
  • 2 x External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
  • Owner's Manual
Certifications & Standards:
TAA
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
Taiwan
TAA Compliant:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0037332178367, 0050927487538, 0373321783670, 0993246793211
UPC: 037332178367, 050927487538, 373321783670, 993246793211
EAN: 0037332178367, 0050927487538, 0373321783670, 0993246793211
UNSPSC: 45111815
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Tripp-Lite B130-101-2 Power Device is also known as B1301012
