Tripp-Lite B126-1P0 Accessory

Tripp-Lite - Tripp Lite HDMI Over Cat5/Cat6 Passive Video Extender Remote Unit TAA / GSA - 1 Input Device - 1 Output Device - 100 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - Twisted Pair - Category 6 - Desktop - TAA Compliant
  • Supports high-definition video resolutions up to 1080p (60 Hz)
  • Supports stereo and 7.1-channel surround sound audio
  • Works with all operating systems and HDMI video sources
  • Plug and play-no software or drivers to install
  • Built-in HDMI male connector plugs directly to monitor
Read More
$44.38
In Stock
Add to Quote
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite B126-1P0 Accessory Overview

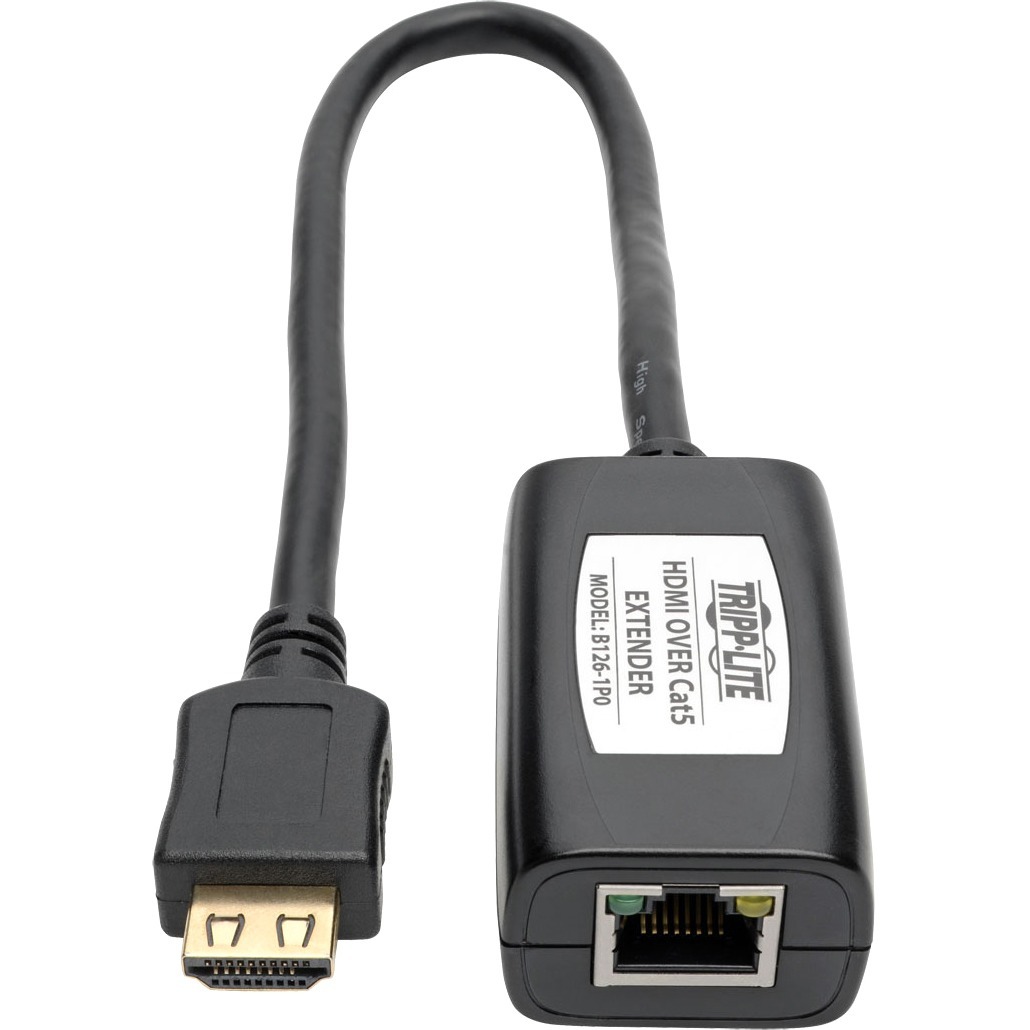

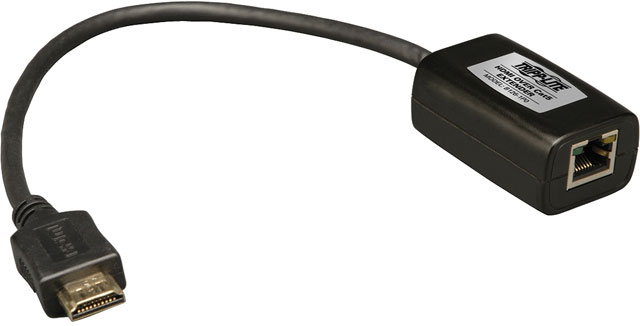

The B126-1P0 HDMI over Cat5/Cat6 Passive Remote Receiver works with Tripp Lite's B126-002 and B126-004 transmitters to extend an HDMI signal to multiple projectors, monitors or televisions in a chain. It's ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow.

The B126-1P0 can extend a 1080i (60 Hz) signal up to 100 feet (30.5 m) or a 1080p (60 Hz) signal up to 50 feet (15.2 m) with a single Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series) between it and the transmitter. The built-in HDMI cable features a latching connector that helps prevent accidental disconnection. No external power is required.

In addition to crystal-clear video, the B126-1P0 delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with a B126-002 or B126-004 transmitter. Supports 24-bit True Color (8 bits per channel) and HDCP compatibility. Easy to set up with no software or drivers to install.
Technical Information
Connectivity Technology:
Wired
Number of Input Devices Supported:
1
Number of Output Devices Supported:
1
Maximum Operating Distance:
100 ft
Interfaces/Ports
Network (RJ-45):
Yes
HDMI Out:
Yes
Number of Network (RJ-45) Ports:
1
Number of HDMI Outputs:
1
Media & Performance
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 6
Physical Characteristics
Product Color:
Black
Form Factor:
Desktop
Miscellaneous
Package Contents:
  • B126-1P0 Video Console
  • Owner's Manual
Certifications & Standards:
  • TAA
  • HDCP
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
Taiwan
TAA Compliant:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 52161521
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Tripp-Lite B126-1P0 Accessory is also known as B1261P0
