Connectivity Technology:
Wired
Maximum Operating Distance:
328 ft
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.

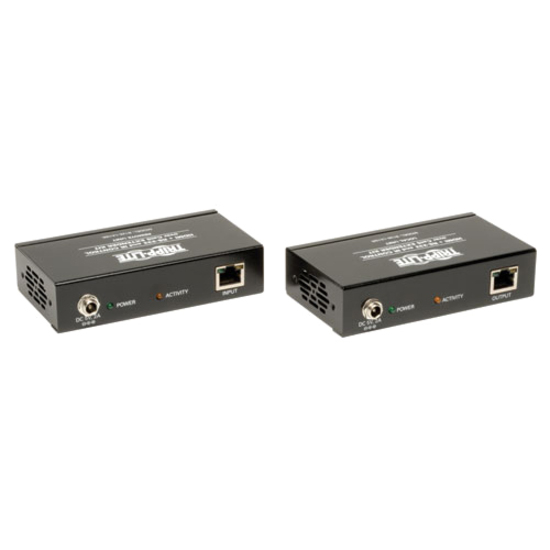

Tripp-Lite B126-1A1SR Power Device Overview
Extender kit features a transmitter unit and a receiver unit to extend your HDMI audio and video when the source is located farther than conventional cables allow. Plug-and-play technology makes installation quick and simple - with no software or drivers to install. You can extend a 3840 x 2160 (4K x 2K) Ultra High Definition (UHD) signal at 24/30Hz up to 328' with a single Cat6a cable, up to 230' with a 24 AWG solid-wire Cat6 cable, and up to 150' with a 26 AWG solid-wire Cat5e cable (N001- and N002-Series). For extending computer video resolutions of 1920 x 1200 at 60 Hz or high-definition video resolutions of 1080p at 60 Hz up to 328', use a single 24 AWG solid-wire Cat5e/6 cable. You can also control RS-232 serial devices, such as touch-screen displays or scanners, at baud rates up to 115 Kbps. Kit supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video and HDCP.
Technical Information
Video
Graphics Modes:
4K
Maximum Video Resolution:
3840 x 2160
Interfaces/Ports
Network (RJ-45):
Yes
HDMI In:
Yes
HDMI Out:
Yes
Serial Port:
Yes
Number of Network (RJ-45) Ports:
2
Number of HDMI Inputs:
1
Number of HDMI Outputs:
1
Media & Performance
Twisted Pair Cable Standard:
Category 6
Power Description
Input Voltage:
- 110 V AC
- 220 V AC
Physical Characteristics
Product Color:
Black
Transmitter Height:
2"
Transmitter Width:
6.20"
Transmitter Depth:
11.30"
Receiver Height:
2"
Receiver Width:
6.20"
Receiver Depth:
11.30"
Form Factor:
- Wall Mountable
- Rack-mountable
- Pole-mountable
Miscellaneous
Package Contents:
- Local Transmitter and Remote Receiver Units
- 2 x Sets of IR-IN Cables
- 2 x Sets of IR-OUT Cables
- 3.5 mm Male-to-DB9-Female Adapter Cable
- 3.5 mm Male-to-DB9-Male Adapter Cable
- 2 x Sets of External Power Supplies (Input: 100-240V, 50/60 Hz, 0.5A Output: 5V, 2A)
- 2 x Sets of Mounting Hardware Kits
- Owner's Manual
Certifications & Standards:
TAA
Environmental Certification:
RoHS
Country of Origin:
Taiwan
TAA Compliant:
Yes
Warranty
Limited Warranty:
1 Year
Additional Warranty Information:
1 year limited warranty
Item Numbers
GTIN:
0037332171108, 0818240831014
UPC:
037332171108, 818240831014
EAN:
0037332171108, 0818240831014
UNSPSC:
45111815
