Tripp-Lite B126-110 Data Networking

Tripp-Lite - Tripp Lite HDMI over Cat5/Cat6 Active Video Extender / Remote Repeater 1080p 175'', 1 Input Device, 2 Output Device, 700 ft Range, 2 x Network (RJ-45), 1 x HDMI Out, Twisted Pair, Category 5, Wall Mountable, Rack-mountable, Pole-mountable, TAA Compliant

Extends 1080i (60 Hz) signal up to 175 ft.
Connect up to 3 units in a chain for maximum extension
Supports high-definition video resolutions up to 1080p (60 Hz)
Supports stereo and 7.1-channel surround sound audio
Plug and play-no software or drivers to install

Need a different version? See all Tripp-Lite Parts Accessories

Price Match Guarantee

Found a better price? We'll match it within 30 days of your purchase.

Chat Now for Qty Discount

Add to Quote

$236.41

Overview

Tripp-Lite Parts Accessory Model Overview

Products and parts from Tripp-Lite.

Tripp-Lite B126-110 Data Networking Overview

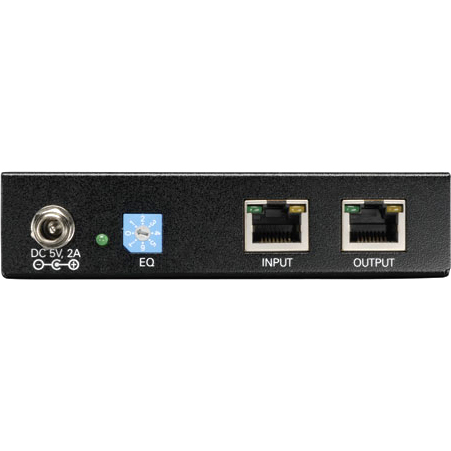

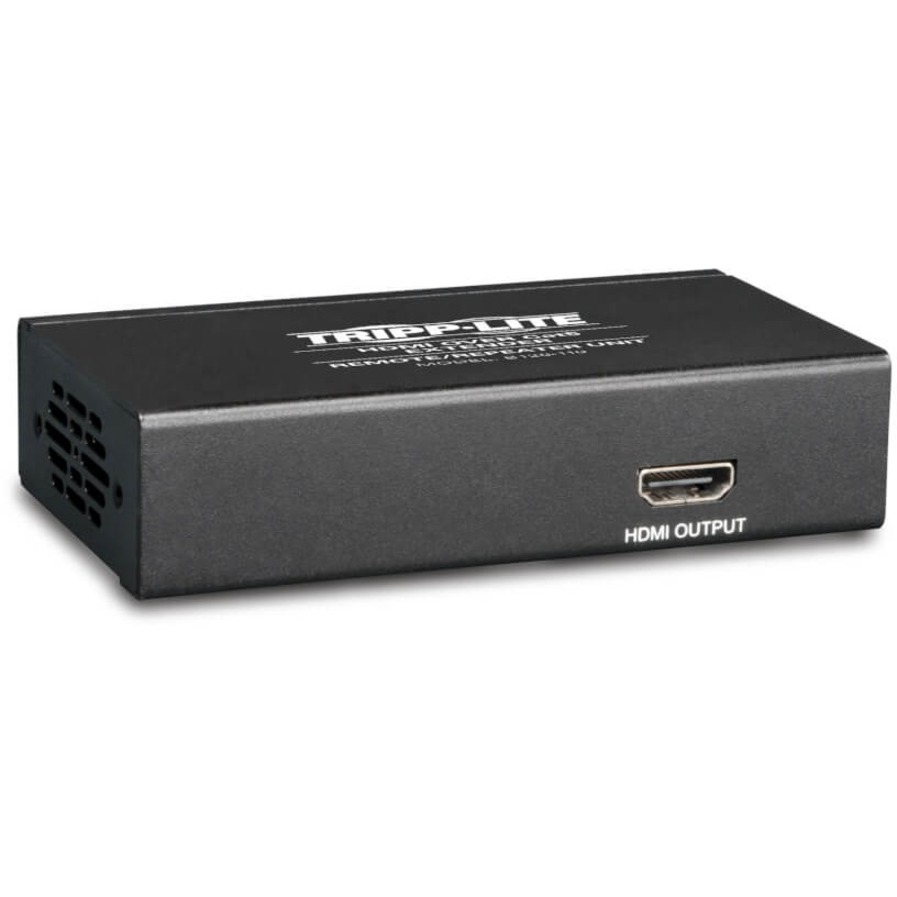

The B126-110 remote repeater unit can be added to your Tripp Lite B126-Series HDMI over Cat5 installation to increase the extension distance and/or add additional monitors. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM). Installation is simple; just insert the B126-110 repeater into the middle of your installation. In the case of a B126-1A1 extender kit, the transmitter is connected to the HDMI source using a Tripp Lite P568-Series HDMI cable (not included). It is then connected via Cat5e/6 cable to the B126-110, which is connected via Cat5e/6 cable to the B126-1A1 receiver unit. Finally, a monitor is connected to each remote receiver and repeater unit using Tripp Lite P568-Series HDMI cable (not included). The B126-110 unit is TAA GSA Compliant.

Detailed Specs

Technical Information

Connectivity Technology:

Wired

Number of Input Devices Supported:

Number of Output Devices Supported:

Maximum Operating Distance:

700 ft

Interfaces/Ports

Network (RJ-45):

Yes

HDMI Out:

Yes

Number of Network (RJ-45) Ports:

Number of HDMI Outputs:

Media & Performance

Media Type Supported:

Twisted Pair

Twisted Pair Cable Standard:

Category 5

Physical Characteristics

Product Color:

Black

Transmitter Height:

Transmitter Width:

4.50"

Transmitter Depth:

2.50"

Form Factor:

Wall Mountable
Rack-mountable
Pole-mountable

Miscellaneous

Package Contents:

Video Extender
External AC Power Adapter
Mounting Hardware
Screwdriver for Equalization Adjustment
User Manual

Certifications & Standards:

TAA

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE

Country of Origin:

Taiwan

TAA Compliant:

Yes

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0037332168061, 0182682395497, 0991428948831, 4923213197021

UPC: 037332168061, 182682395497, 991428948831

EAN: 0037332168061, 0182682395497, 0991428948831, 4923213197021

UNSPSC: 45111815
