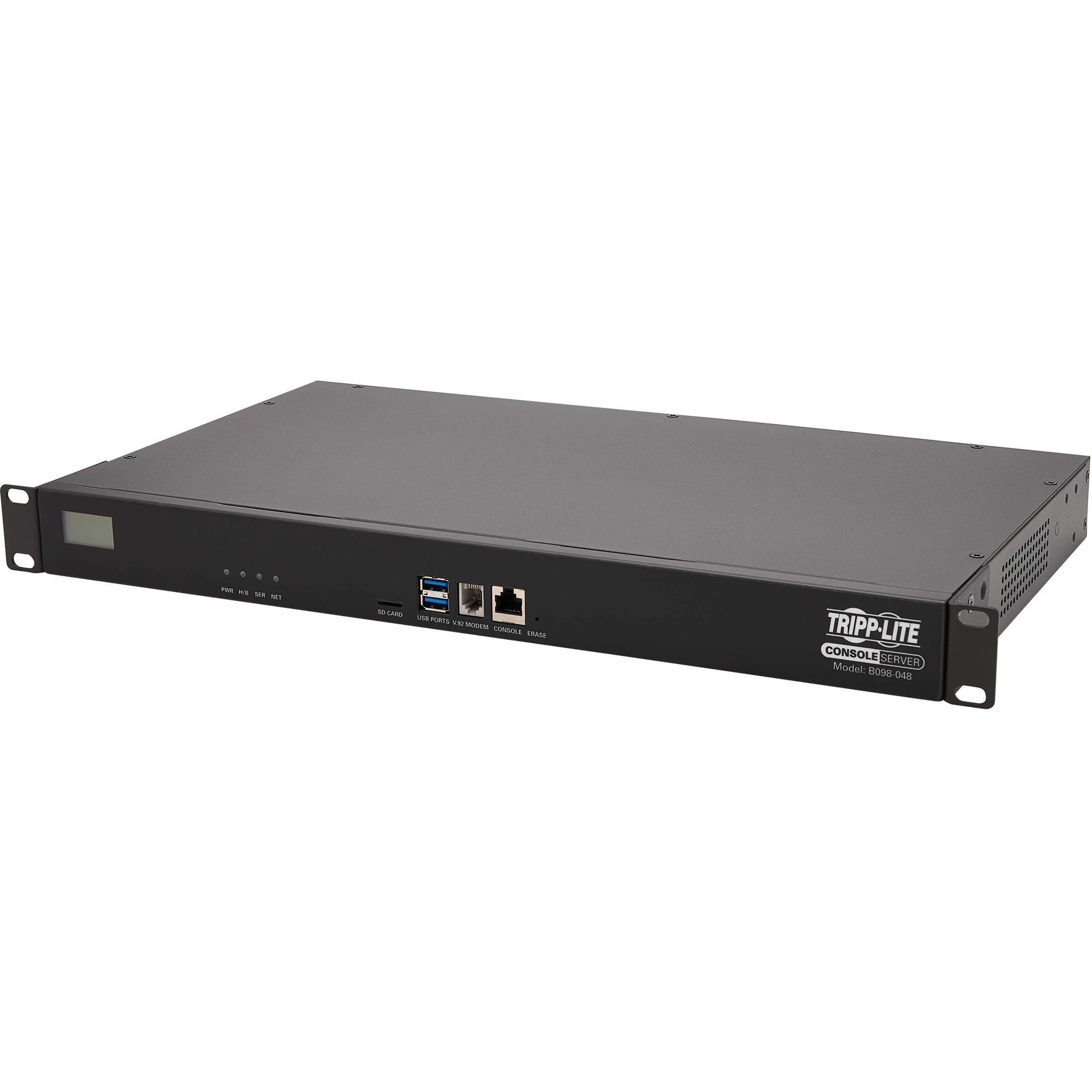

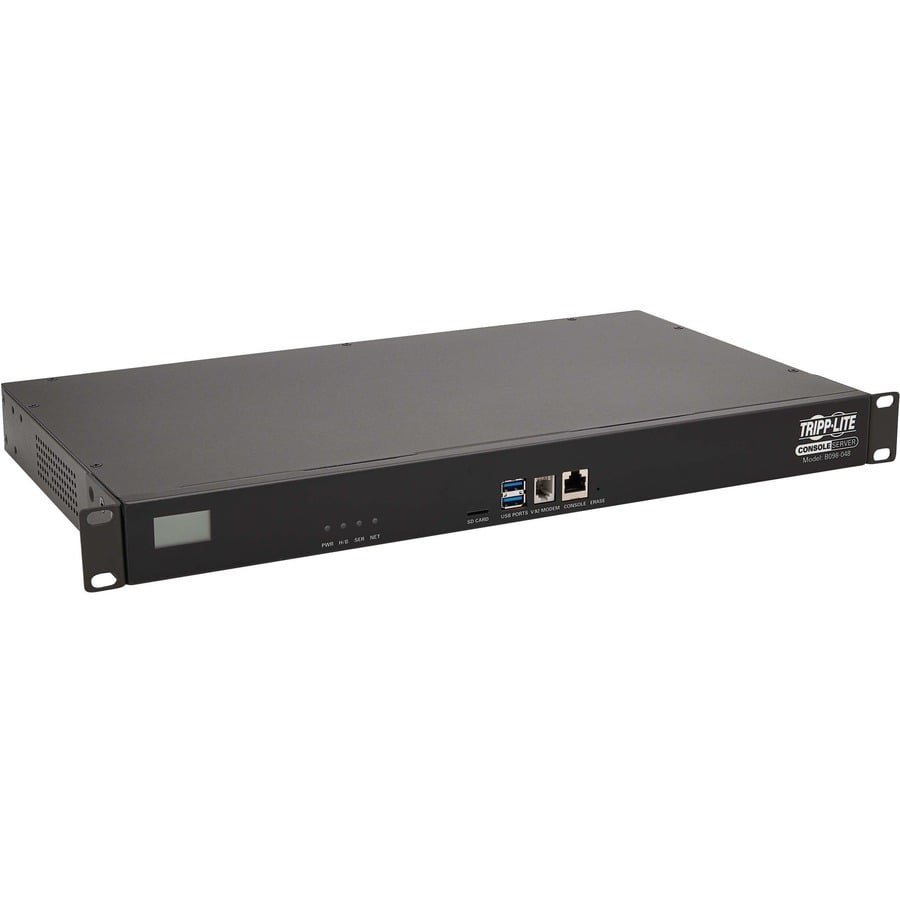

Tripp-Lite B098-048 Server

Tripp-Lite - Servers, Tripp Lite, Serial Console Server 48-Port 2 USB Ports Dual GbE 16Gb Flash 1U, Twisted Pair, 2 x Network (RJ-45), 2 x USB, 48 x Serial Port, 10/100/1000Base-T, Gigabit Ethernet, Desktop, Rack-mountable, TAA Compliant
  • 48-port serial console server lets you remotely access and control serial-based networking equipment through one highly secure gateway.
  • Manage routers, UPS systems and other serial-based equipment from anywhere 24/7
  • Validated to meet FIPS 140-2 standards to ensure utmost protection of private data
  • Dual Gigabit Ethernet ports for primary network connection and automatic failover
  • Designed for standard Cat5e/6 patch cable when connecting to Cisco devices
  • 4-year limited warranty
Read More
$6,147.51
In Stock
Add to Quote
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite B098-048 Server Overview

Access All Your Serial and Network Devices from Anywhere in the World at Any Time

This USB console server provides secure in-band (primary network) and out-of-band (alternate channel) remote access to serial- and network-connected routers, network switches, firewalls, PBX systems, UPS systems, PDUs and other devices. It offers reliable network connectivity with dual Gigabit primary and failover Ethernet ports, dual SFP ports for fiber optic network connections, and dual power supplies. You can use it in a wide variety of applications, including wiring closets, branch offices, kiosks, point-of-sale and other remote sites where a quick identification and resolution of network issues is imperative. You'll be able to manage a critical equipment outage quickly and remotely without making a costly and time-consuming physical visit to the site.

Simple and Flexible Accessibility

The 48 RJ45 console ports are configured to use standard Cat5e/6 patch cable when connecting to Cisco devices. They integrate with industry-standard directory servers using TACACS+, RADIUS, LDAP and Kerberos authentication. Provides 16 Gb of internal NAND flash memory, which can be used for log storage and file storage, and is expandable with an SD card.

Connect the Built-In V.92 Modem for Out-of-Band (OOB) Access

For OOB access, connect an RJ11 cable between the front-facing RJ11 port and a functioning landline port to allow the V.92 modem to dial out.

Router/Gateway

Each gateway can port forward to an unlimited number of locally networked hosts (computers, routers). This rack console also includes a built-in stateful firewall and embedded DHCP server to host a separate management LAN for critical traffic.

The Utmost in Security to Keep Your Sensitive Data Private

The B098-048 supports the following security features and standards: PCI DSS 3.2, FIPS 140-2, SSL and SSH, stateful firewall, OpenVPN and IPSec VPN support. The embedded FIPS 140-2 OpenSSL cryptographic module is validated to meet FIPS 140-2 standards and has received Certificate #2473.

PowerMan PDU and UPS Support

This USB console server uses PowerMan for PDU and RPC management and Network UPS Tools for UPS system monitoring and management. It provides support for Tripp Lite and other power products, so you can remotely manage power to your connected equipment.

USB Console

Two USB 3.0 console ports, supporting speeds up to 5Gbps, allow connection to newer devices with USB console ports, such as Tripp Lite's wide variety of PDUs and UPS systems with WEBCARDLX and LX Platform remote management cards.

Compact Design for Convenient Mounting

The heavy-duty steel housing comes with mounting brackets for 1U installation in an EIA-standard 19-inch rack. Its fanless form factor also allows desktop deployment on included rubber feet that help prevent the unit from sliding.

TAA-Compliant for GSA Schedule Purchases

The B098-048 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Technical Information
Device Type:
Console Server
Media & Performance
Media Type Supported:
Twisted Pair
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Network Standard:
10/100/1000Base-T
Interfaces/Ports
Network (RJ-45):
Yes
Network (RJ-11):
Yes
USB:
Yes
Serial Port:
Yes
Number of Network (RJ-45) Ports:
2
Number of RJ-11 Ports:
1
Number of USB Ports:
2
Number of Serial Ports:
48
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Physical Characteristics
Product Color:
Black
Form Factor:
  • Desktop
  • Rack-mountable
Height:
17"
Width:
10"
Depth:
1.8"
Weight (Approximate):
10 lb
Miscellaneous
Package Contents:
  • B098-048 48-Port Serial Console Server
  • 2 x C13 to NEMA 5-15P Power Cords, 6 ft.
  • 2 x Cat5e Patch Cables, 6 ft.
  • 2.4 GHz SMA Wi-Fi Diversity Antenna
  • Straight-through Serial Adapter, DB9 to RJ45 (F/F)
  • Crossover Serial Adapter, DB9 to RJ45 (F/F)
  • Modular Serial Adapter, DB9 to RJ45 (M/F)
  • Cisco rolled Straight-through Serial Adapter, DB9 to RJ45 (F/F)
  • Cisco rolled Crossover Serial Adapter, DB9 to RJ45 (F/F)
  • Cisco rolled Modular Serial Adapter, DB9 to RJ45 (M/F)
  • Cisco Straight Pinout (x2) Loopback, Black
  • Cisco Rollover Pinout (x1) Loopback, Red
  • Rack-mounting Hardware
  • Quick Start Guide
Additional Information:

Side A - Connector 1: 2 x USB A (Female)
Side A - Connector 2: RJ11 (Female)
Side A - Connector 3: RJ45 (Female)
Side A - Connector 4: SD (Female)
Side B - Connector 1: 48 x RJ45 (Female)
Side B - Connector 2: 2 x SFP (Female)
Side B - Connector 3: 2 x RJ45 (Female)

Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
United States
TAA Compliant:
Yes
Warranty
Limited Warranty:
4 Year
Item Numbers
GTIN: 0037332218063
UPC: 037332218063
EAN: 0037332218063
UNSPSC: 43222625
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Tripp-Lite B098-048 Server is also known as B098048
