Tripp-Lite B093-008-2E4U-M Rack

Tripp-Lite - Racks, Tripp Lite, 8-Port Console Server Built-In Modem Dual GbE NIC Flash Dual SIM, Twisted Pair, 4 x Network (RJ-45), 4 x USB, 8 x Serial Port, Network (RJ-11), 1000Base-X, Gigabit Ethernet, Management Port, Rack-mountable, Desktop, TAA Compliant
  • Manage routers, UPS systems and other serial-based equipment from anywhere at any time 24/7
  • Built-in V.92 serial data/fax modem provides out-of-band remote access
  • Dual Gigabit Ethernet ports for primary network connection and automatic failover
  • Designed for standard Cat5e/6 patch cable when connecting to Cisco devices
  • Easy installation on desktop or 19 in. racks using included mounting hardware
Read More
$1,415.54
In Stock
Add to Quote
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.

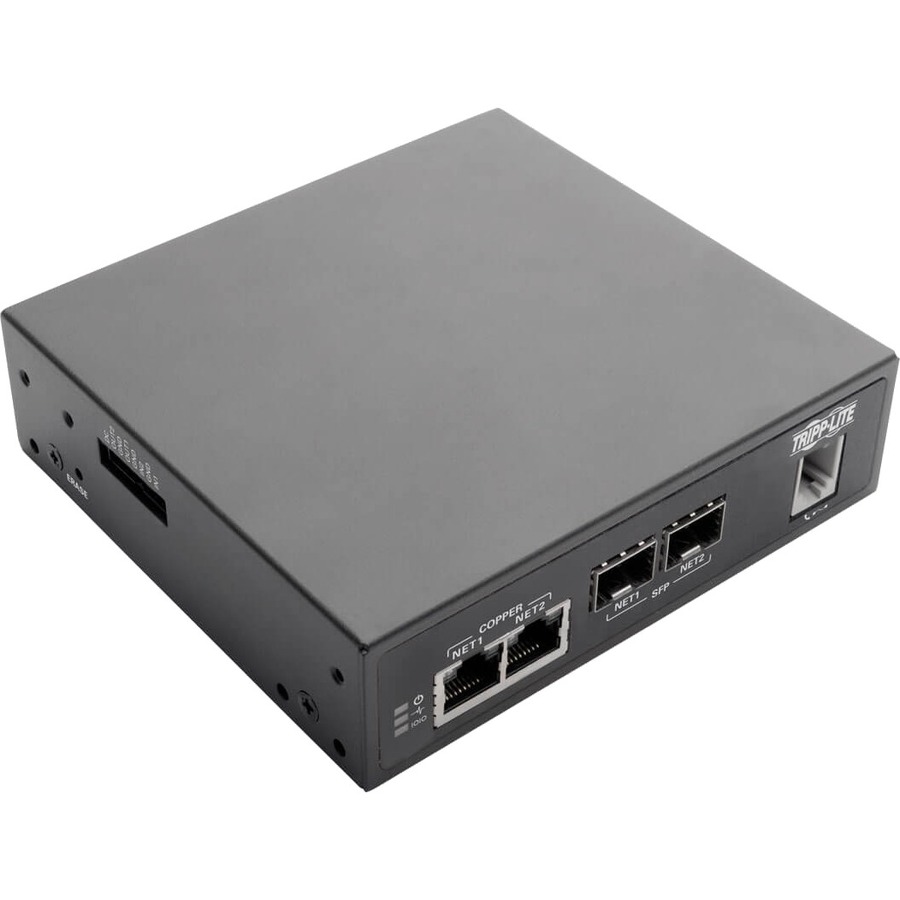

Tripp-Lite B093-008-2E4U-M Rack Overview

Features

Access All Your Serial and Network Devices from Anywhere in the World

The B093-008-2E4U-M 8-port console server provides secure in-band (primary network) and out-of-band (alternate channel) remote access to serial- and network-connected routers, network switches, firewalls, PBX systems, UPS systems, PDUs and other devices. It offers reliable network connectivity with dual Gigabit primary and failover Ethernet ports for redundancy. You can use it in a wide variety of applications, including wiring closets, branch offices, point-of-sale and other remote sites where quick resolution of network issues is imperative.

Simple and Flexible Accessibility

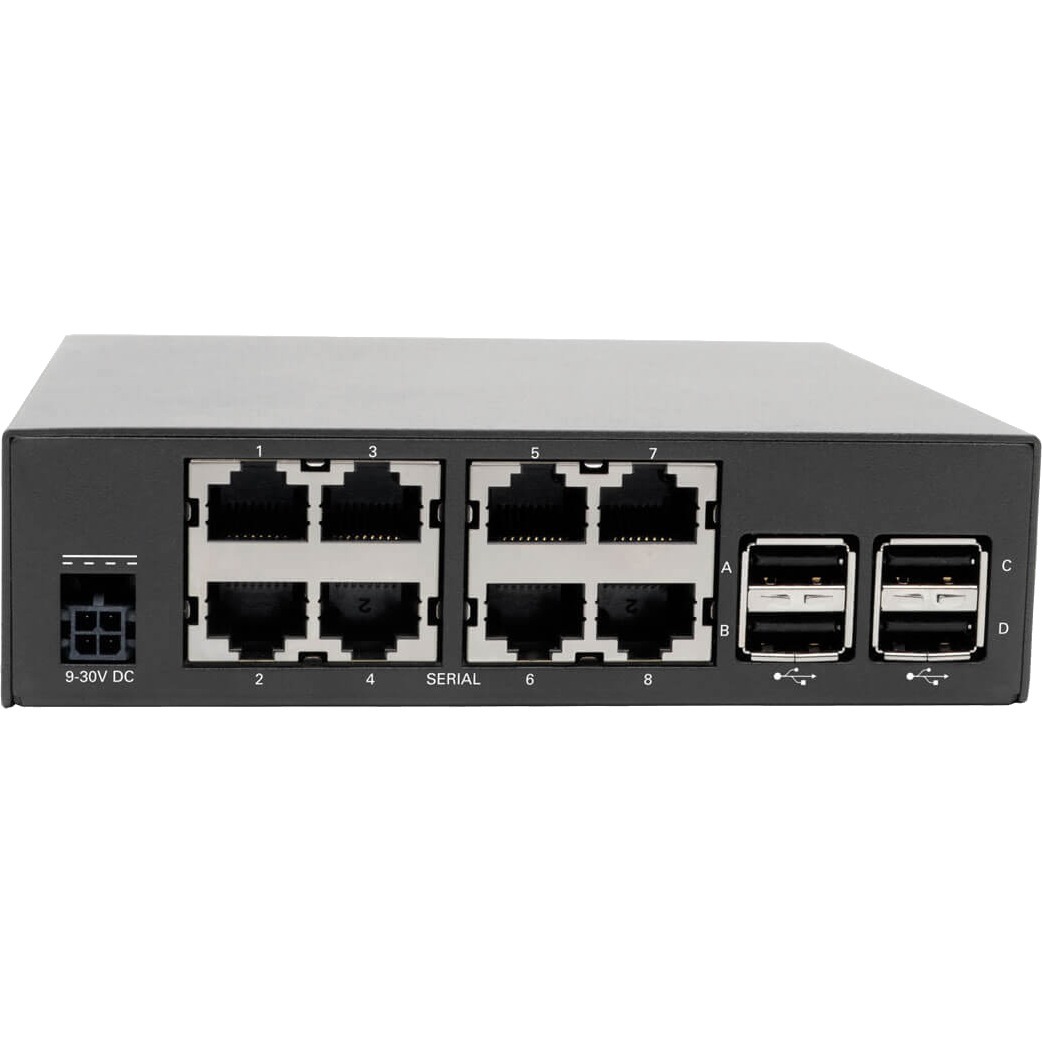

Eight serial RS-232 console ports are configured to use standard Cat5e/6 patch cable when connecting to Cisco devices. They integrate with industry-standard directory servers using TACACS+, RADIUS, LDAP and Kerberos authentication. Provides 4 Gb of internal NAND flash memory.

Built-In PSTN Modem for Out-of-Band Access

A V.92 serial data/fax modem enables out-of-band (alternate channel) access when remote sites experience a network outage. You can dial into the rack console from anywhere at any time, eliminating the costly need for additional USB modems that can be accidentally disconnected or have compatibility issues.

Router/Gateway

Each gateway can port forward to an unlimited number of locally networked hosts (computers, routers). This rack console also includes a built-in stateful firewall and embedded DHCP server to host a separate management LAN for critical traffic.

The Utmost in Security to Keep Your Sensitive Data Private

The B093-008-2E4U-M supports the following security features and standards: PCI DSS 3.2, FIPS 140-2, SSL and SSH, stateful firewall, OpenVPN and IPSec VPN support. The embedded FIPS 140-2 OpenSSL cryptographic module is validated to meet FIPS 140-2 standards and has received Certificate #2473.

PowerMan PDU and UPS Support

This 8-port console server uses PowerMan for PDU and RPC management and Network UPS Tools for UPS system monitoring and management. It provides support for Tripp Lite and other power products, so you can remotely manage power to your connected equipment.

USB Console and Digital I/O (DIO) Ports

Four USB 2.0 console ports allow connection to newer devices with USB console ports, such as Tripp Lite's wide variety of PDUs and UPS systems with WEBCARDLX and LX Platform remote management cards. Two DIO ports are included for connecting compatible devices, such as drive relays and alarms.

Compact Design for Convenient Mounting

The heavy-duty steel housing comes with mounting brackets for easy installation in an EIA-standard 19-inch rack. Its fanless form factor also allows desktop deployment on four included rubber feet that help prevent the unit from sliding.

TAA-Compliant for GSA Schedule Purchases

This serial console server is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

4-Year Warranty and Environmentally Responsible Design

The B093-008-2E4U-M comes with a 4-year warranty. It's manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility.

Technical Information
Device Type:
Console Server
Media & Performance
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 6
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Network Standard:
1000Base-X
Interfaces/Ports
Network (RJ-45):
Yes
Network (RJ-11):
Yes
USB:
Yes
Serial Port:
Yes
Management Port:
Yes
Number of Network (RJ-45) Ports:
4
Number of USB Ports:
4
Number of Serial Ports:
8
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Physical Characteristics
Product Color:
Black
Form Factor:
  • Rack-mountable
  • Desktop
Height:
1.4"
Width:
5.1"
Depth:
4.7"
Weight (Approximate):
1.30 lb
Miscellaneous
Package Contents:
  • B093-008-2E4U-M Device Server
  • Terminal Block
  • DB9F to RJ45 Crossover Serial Adapter
  • External Power Supply w/4 ft. Cord (Input: 100-240V, 50/60 Hz, 0.4A; Output: 12V 1.25A)
  • 4 x International Plug Adapters (North America, Europe, U.K., Australia)
  • Rack-mounting Hardware
  • 4 x Rubber Feet
  • Quick Start Guide
Certifications & Standards:
  • TÜV
  • Environmentally Friendly:
    Yes
    Environmental Certification:
    • RoHS
    • REACH
    Country of Origin:
    United States
    TAA Compliant:
    Yes
    Warranty
    Limited Warranty:
    4 Year
    Item Numbers
    GTIN: 0037332209283, 0818240375549
    UPC: 037332209283, 818240375549
    EAN: 0037332209283, 0818240375549
    UNSPSC: 43222625
