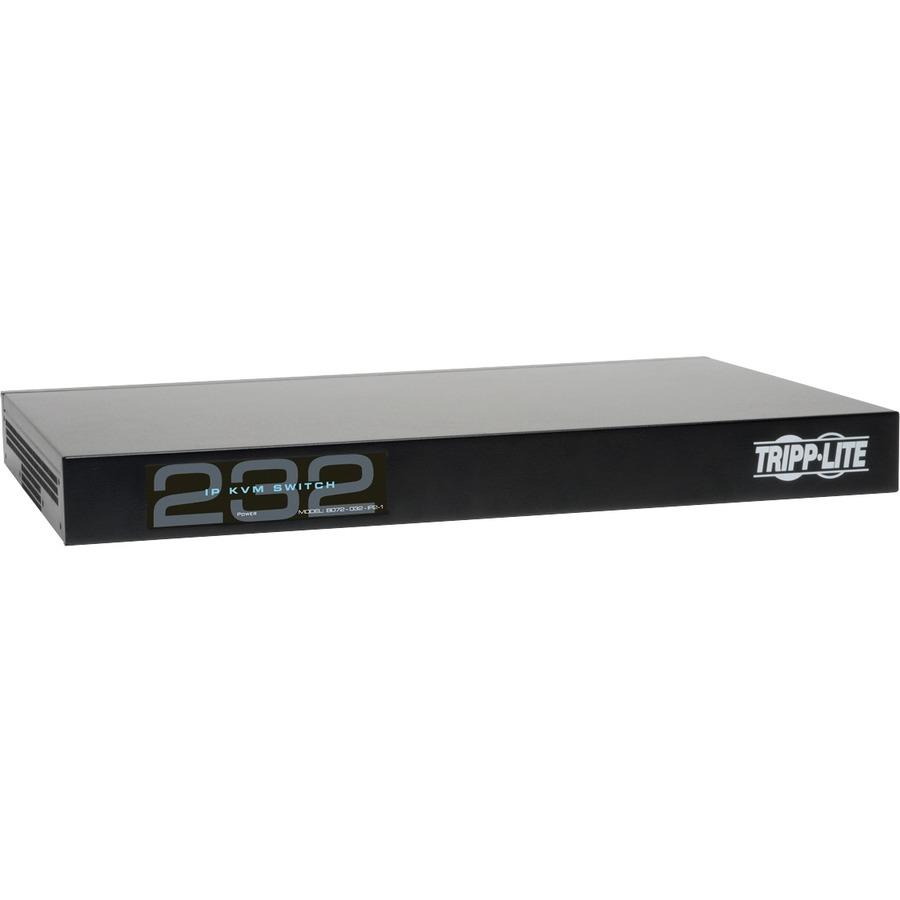

Tripp-Lite B072-032-IP2-K Network Switch

Tripp-Lite - Tripp Lite 32-Port Cat5 IP KVM Switch 1 Local 2 Remote 16 USB Dongles Rackmount, 32 Computer(s), 1 Local User(s), 2 Remote User(s), 1920 x 1080, 36 x Network (RJ-45), 2 x USB1 x VGA, Rack-mountable, 1U, TAA Compliant
  • 16 USB Dongles included
  • Simultaneous support for 3 users (1 local, 2 remote)
  • Java-based application allows for control of a target server via web browser from any location over a secure IP connection.
  • Non-Browser client available via Support section, which can by-pass browser related Java Security prompts upon login
  • Free Management Software available to Access and Control all of your Tripp Lite NetCommander IP KVM's (B070 and B072 IP series) from a single interface
  • Remote authentication support - RADIUS and LDAP/S
  • Supports both IPv4 and IPv6
  • PDU Control - Add IP PDU's as devices that can be controlled by the KVM. Assign individual ports on the KVM to a PDU port to Power Cycle or Power Off/On the computer/server connected to that port
  • Dual Serial Ports - Connect serial manageable devices such as PDU's, firewalls, and routers.
  • Dual Ethernet and Power provides redundancy in the event of a crash.
Read More
$4,497.38
In Stock
Add to Quote
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite B072-032-IP2-K Network Switch Overview
Tripp Lite's B072-032-IP2-K KVM Switch is the optimal solution for controlling up to 32 computers/servers locally, from across the room, down the street or around the globe on a network or the Internet.This KVM switch can be accessed and controlled remotely, so there's no need to travel to the server room or network closet. A Java-based application allows access via web browser from any secure IP connection; a non-browser client that can bypass browser-related Java Security prompts is available. The B072-032-IP2-K uses inexpensive, user-supplied Cat5e/6/6a cabling with Server Interface Units (16 included) so you can connect computers/servers located up to 100 ft. away from the switch. This switch features dual Ethernet ports and dual power supplies; if one fails, the other takes over, keeping access uninterrupted. Switch easily between the 32 ports using an on-screen display (OSD), hotkey commands or a remote toolbar. Multi-level password protection prohibits unauthorized users from accessing connected computers, and a local user and up to two remote users can each log on and access different ports simultaneously.Two serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; individual ports can be assigned to an IP PDU port to power on/off the server connected to that port. This KVM switch is compatible with Windows and Linux operating systems and it supports VGA video resolutions up to 1920 x 1080 @ 60 Hz. Heavy-duty steel housing stands up to frequent use.Virtual Media allows an.iso file to be mounted to a target server and accessed as if it were stored directly on it. Virtual Media data transfer rates up to 12Mbps are supported when using a B078-101-USB2 Server Interface Unit. Other features include RADIUS and LDAP/S authentication, system-sent SNMP messaging and an event log that tracks logins, reboots and network setting changes.Free NetCommander-AXS Management Software is available to access and control all of your Tripp Lite NetCommander IP KVM switches (B070 and B072 series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDUs and manage KVM settings. This software can be downloaded free of charge from the model support page for the B072-032-IP2-K.
Technical Information
KVM Technology:
Digital
Number of Computers Supported:
32
Number of Local Users Supported:
1
Number of Remote Users Supported:
2
Maximum Operating Distance:
100 ft
Video
Graphic Mode:
Full HD
Maximum Video Resolution:
1920 x 1080
Interfaces/Ports
Network (RJ-45):
Yes
USB:
Yes
VGA:
Yes
Number of Network (RJ-45) Ports:
36
Number of USB Ports:
2
Number of VGA Ports:
1
Physical Characteristics
Product Color:
Black
Form Factor:
Rack-mountable
Rack Height:
1U
Height:
1.7"
Width:
17.3"
Depth:
11"
Weight (Approximate):
7.75 lb
Miscellaneous
Package Contents:
  • 32-Port, 2+1 User NetCommander Cat5 IP KVM Switch with Sixteen USB Dongles
  • 16 x USB Dongles ( B078-101-USB-1 )
  • Rackmount Hardware
  • 2 x Power Cords
Platform Supported:
  • PC
  • Linux
Certifications & Standards:
  • UL 60950-1 (USA)
  • CSA (Canada)
  • FCC Part 15 Class A
  • CE IEC 60950-1
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
Taiwan
TAA Compliant:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0037332181442
UPC: 037332181442
EAN: 0037332181442
UNSPSC: 43211601
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Tripp-Lite B072-032-IP2-K Network Switch is also known as POW-B072032IP2K
