Tripp-Lite B070-008-19-IP Network Switch

Tripp-Lite - Tripp Lite NetCommander 8-Port Cat5 KVM over IP Switch 19 in. LCD 1 Remote + 1 Local User 1U Rack-Mount, 8 Computer(s), 19" LCD, 1366 x 768, 12 x Network (RJ-45), 1 x USB, Keyboard120 V AC, 230 V AC Input Voltage, 1U High, TAA Compliant
  • Control computers/servers locally or via LAN, WAN or Internet
  • Occupies just 1U of space in a rack-mountable drawer
  • Low-cost Cat5 cabling allows longer distances, reduces cable clutter
  • 19" LCD screen supports video resolutions up to 1366 x 768
  • Simultaneous support for 2 users - 1 local, 1 remote
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
  • Free Management Software available to Access and Control all of your Tripp Lite NetCommander IP KVM's (B070 and B072 IP series) from a single interface
  • Fast Virtual Media KVM System patented under Pat. No. US 9,417,720
Read More
$1,961.60
In Stock
Add to Quote
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite B070-008-19-IP Network Switch Overview

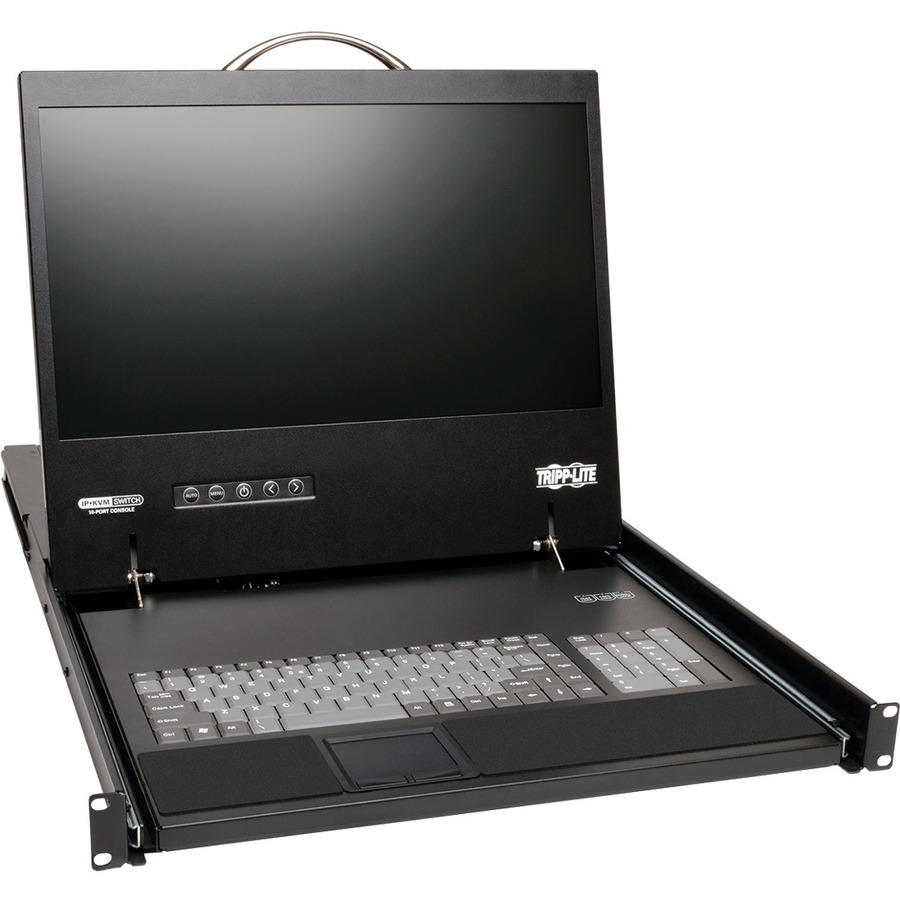

Tripp Lite's B070-008-19-IP KVM Switch gives you a rack-mountable full keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it's the optimal solution for controlling up to 8 computers/servers locally, from across the room, down the street or halfway around the globe on a LAN, WAN or Internet.The B070-008-19-IP uses inexpensive, user-supplied Cat5e/6/6a cabling with Server Interface Units so you can control computers/servers located up to 100 ft. away from the switch. This switch features two 10/100 Mbps LAN ports, so if one fails, the other takes over, keeping remote access uninterrupted. Users can switch easily between the 8 ports using an on-screen display (OSD). Multi-level password protection prohibits unauthorized users from accessing the connected computers, and a local user and a remote user can be logged on simultaneously. The built-in 19" LCD screen supports video resolutions up to 1366 x 768.Two serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; you can assign individual ports to an IP PDU port to power on/off the server connected to that port. The B070-008-19-IP stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with both Windows and Linux operating systems, and provides remote access using a Windows computer. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. Free NetCommander-AXS Management Software is available for access and control of all of your Tripp Lite NetCommander IP KVM switches (B070 and B072 series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDU's, and manage KVM settings. This software can be found on the model support page of the B070-008-19-IP, or via searching NetCommander-AXS on www.tripplite.com
Technical Information
KVM Switch:
Yes
KVM Technology:
Digital
Number of Computers Supported:
8
Device Type:
LCD Rack Console
Display & Graphics
Screen Size:
19"
Display Screen Type:
LCD
Screen Resolution:
1366 x 768
Input Devices
Keyboard:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
USB:
Yes
Number of Network (RJ-45) Ports:
12
Number of USB Ports:
1
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Physical Characteristics
Product Color:
Black
Height:
1.7"
Width:
17.4"
Depth:
28.4"
Weight (Approximate):
28.66 lb
Miscellaneous
Package Contents:
  • 8-Port, 1+1 User NetCommander Cat5 IP Console KVM Switch
  • Power Cord
  • Rackmount Hardware
  • Owners Manual CD
  • Quick Start Guide
Certifications & Standards:
  • UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1
  • TAA Compliant for GSA Schedule Purchases
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
Taiwan
TAA Compliant:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0037332181879, 0373321818792, 0818213948350
UPC: 037332181879, 373321818792, 818213948350
EAN: 0037332181879, 0373321818792, 0818213948350
UNSPSC: 43222634
