Tripp-Lite B064-032-02-IPG Network Switch

Tripp-Lite - Network Switches, Tripp Lite, 32-Port KVM Switch Cat5 Over IP 1 Local 2 Remote User 1U TAA GSA, 32 Computer(s), 1 Local User(s), 2 Remote User(s), UXGA, 1600 x 1200, 32 x Network (RJ-45), 2 x PS/2 Port, 2 x USB, Rack-mountable, 1U, TAA Compliant
  • Simultaneous support for 3 users (1 local, 2 remote)
  • Supports IPv4, Link Local IPv6 Address and IPv6 Stateless Auto configuration protocols
  • Blade server support
  • Virtual Media allows computers connected using a B055-001-USB-V2 SIU to access DVD/CD drives, flash drives and other storage media from a user's remote computer as if it were directly connected
  • Remote Authentication: RADIUS, LDAP, LDAPS, and Active Directory
Read More
$4,731.95
In Stock
Add to Quote
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite B064-032-02-IPG Network Switch Overview

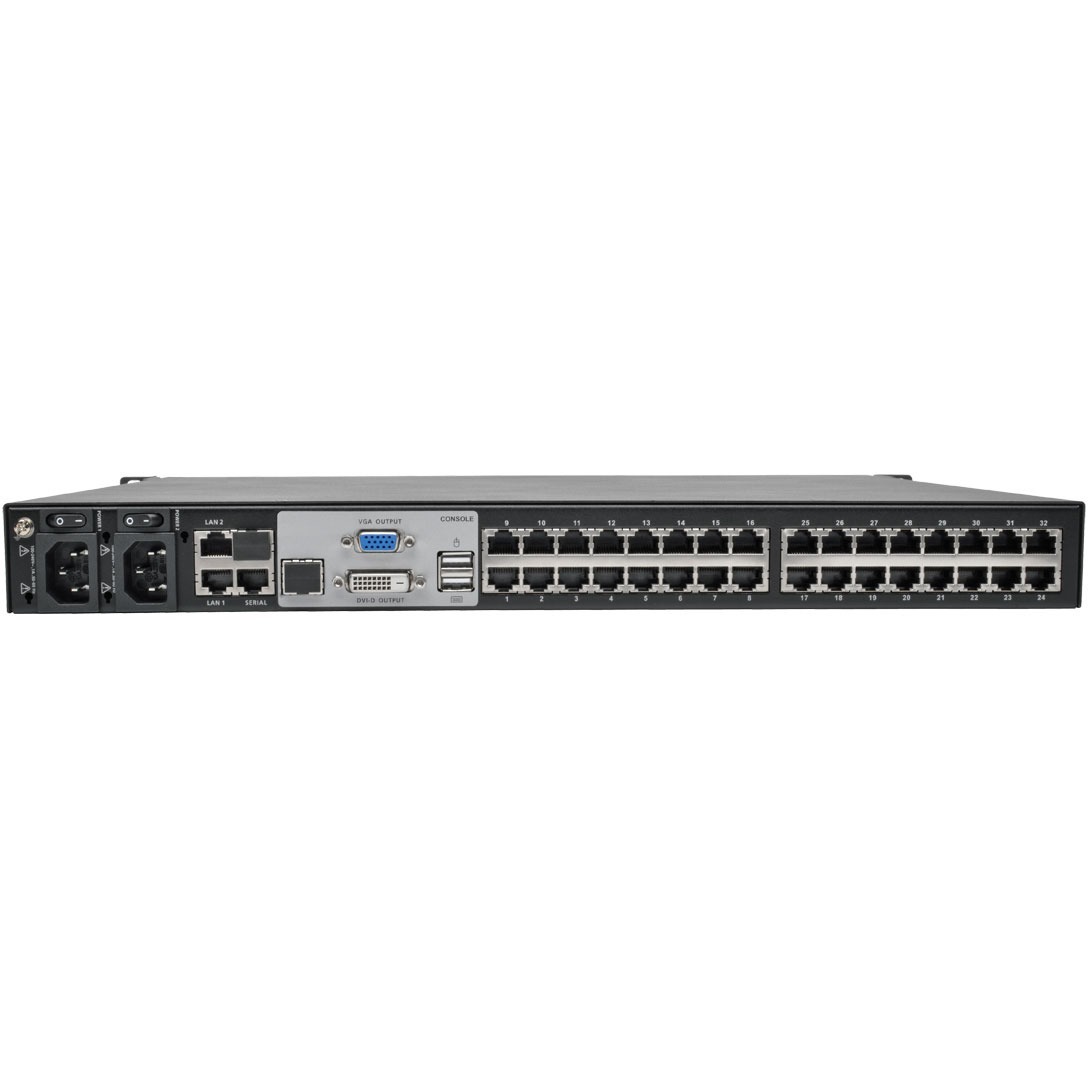

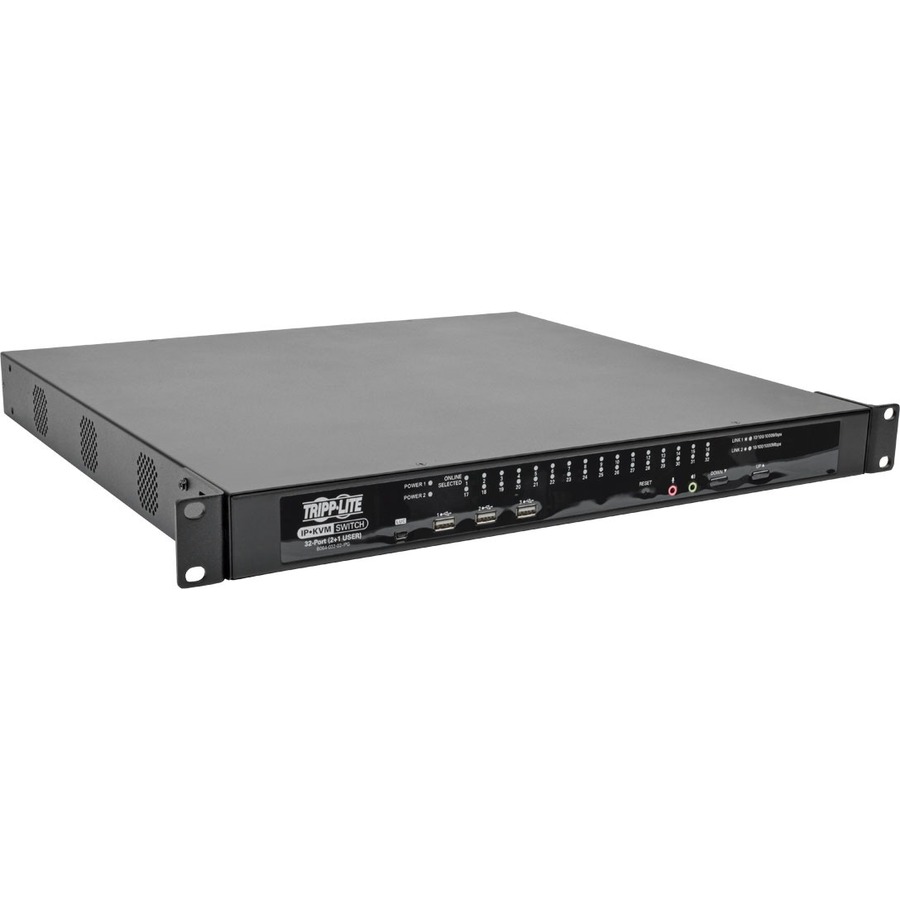

Tripp Lite's 32-port NetDirector Cat5 IP KVM Switch is the optimal solution for remotely controlling multiple computers (combination of PS/2, USB and Serial) by up to 3 (1 Local and 2 Remote) independent, simultaneous users. Both DVI and VGA console ports are included for connection of either a DVI or VGA monitor. High video resolution: up to 1920 x 1200 @ 60Hz - 24 bit color depth for the local console; up to 1920 x 1200 @ 60Hz with 24 bit color depth for remote sessions at up to 164 ft. (50 m). A full-screen graphical OSD with multi-level authentication (Super Administrator, Administrator and User) allows you to quickly and efficiently manage your installation, and can be displayed in English, German, Russian, Japanese, traditional Chinese and simplified Chinese. Critical events on the installation can be tracked via email notification, SNMP traps, the Windows-based log server or Syslog server. Accessing the connected computers is a breeze; view multiple computers at the same time using panel array mode, automatically sync USB mice, access the on-screen keyboard feature in numerous language formats. Virtual Media allows computers connected using a B055-001-USB-V2 Server Interface Unit to access DVD/CD drives, flash drives and other storage media as if they were directly connected to the computer. In addition, three USB ports are located on the front panel of the unit for use with Virtual Media or an external keyboard and mouse. Also located on the front of the KVM is a USB Mini-B port that allows for direct connection of a laptop for easy console operation of the switch. Other features include FIPS 140-2 level 1 security standards support, dual power supplies that allow the unit to continue running in the event one power supply stops receiving power, temperature sensors that control the speed of the unit's cooling fans, remote authentication support via RADIUS, LDAP, LDAPS and Active Directory, dial-in modem access and non-browser access using Windows and Java applications. Constructed of heavy-duty steel housing.
Technical Information
KVM Technology:
Digital
Number of Computers Supported:
32
Number of Local Users Supported:
1
Number of Remote Users Supported:
2
Daisy Chain Supported:
Yes
Video
Graphic Mode:
UXGA
Maximum Video Resolution:
1600 x 1200
Interfaces/Ports
Network (RJ-45):
Yes
PS/2 Port:
Yes
USB:
Yes
Number of Network (RJ-45) Ports:
32
Number of PS/2 Ports:
2
Number of USB Ports:
2
Physical Characteristics
Form Factor:
Rack-mountable
Rack Height:
1U
Height:
1.8"
Width:
17"
Depth:
16"
Weight (Approximate):
17 lb
Miscellaneous
Package Contents:
  • NetDirector KVM Switch
  • 2 x C5 to 5-15P Power Cords
  • CD With Owner's Manual
  • Quick Start Guide
  • RJ-45 to DB-9 Adapter For Dial-In Modem Functionality
  • USB/PS/2 Combo Console Cable Kit
  • Grounding Wire
  • Set of Foot Pads
  • Rackmount Hardware
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
Taiwan
TAA Compliant:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0037332151537
UPC: 037332151537
EAN: 0037332151537
UNSPSC: 43211601
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Tripp-Lite B064-032-02-IPG Network Switch is also known as B06403202IPG
