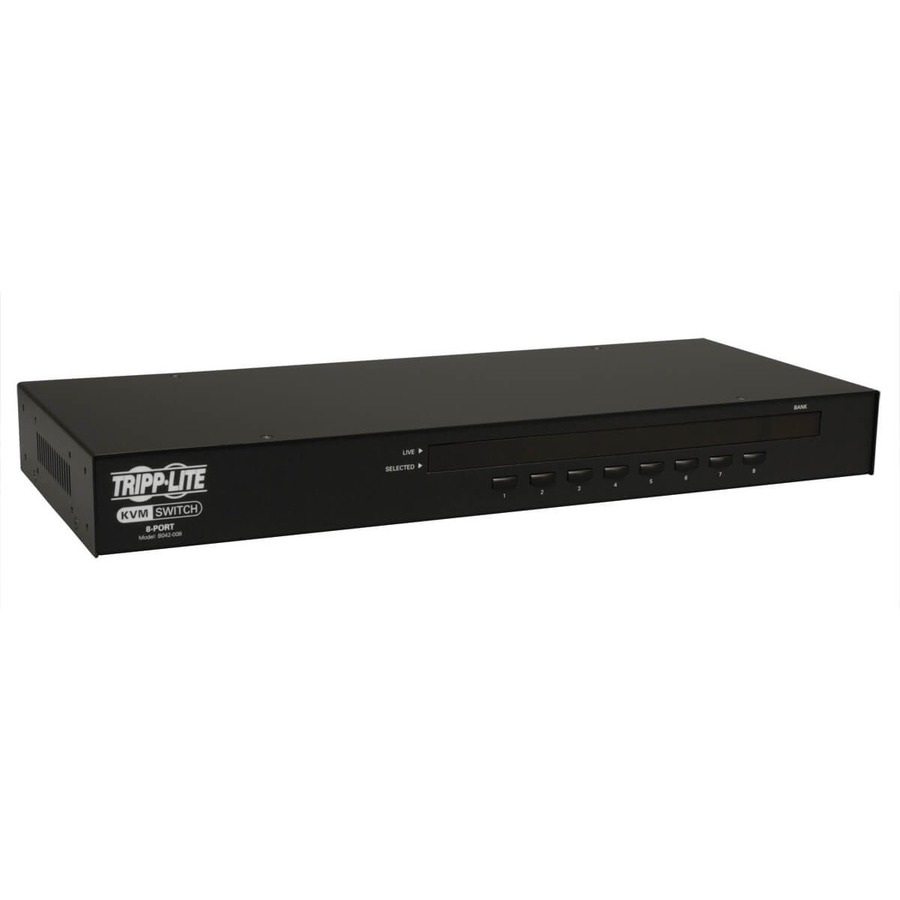

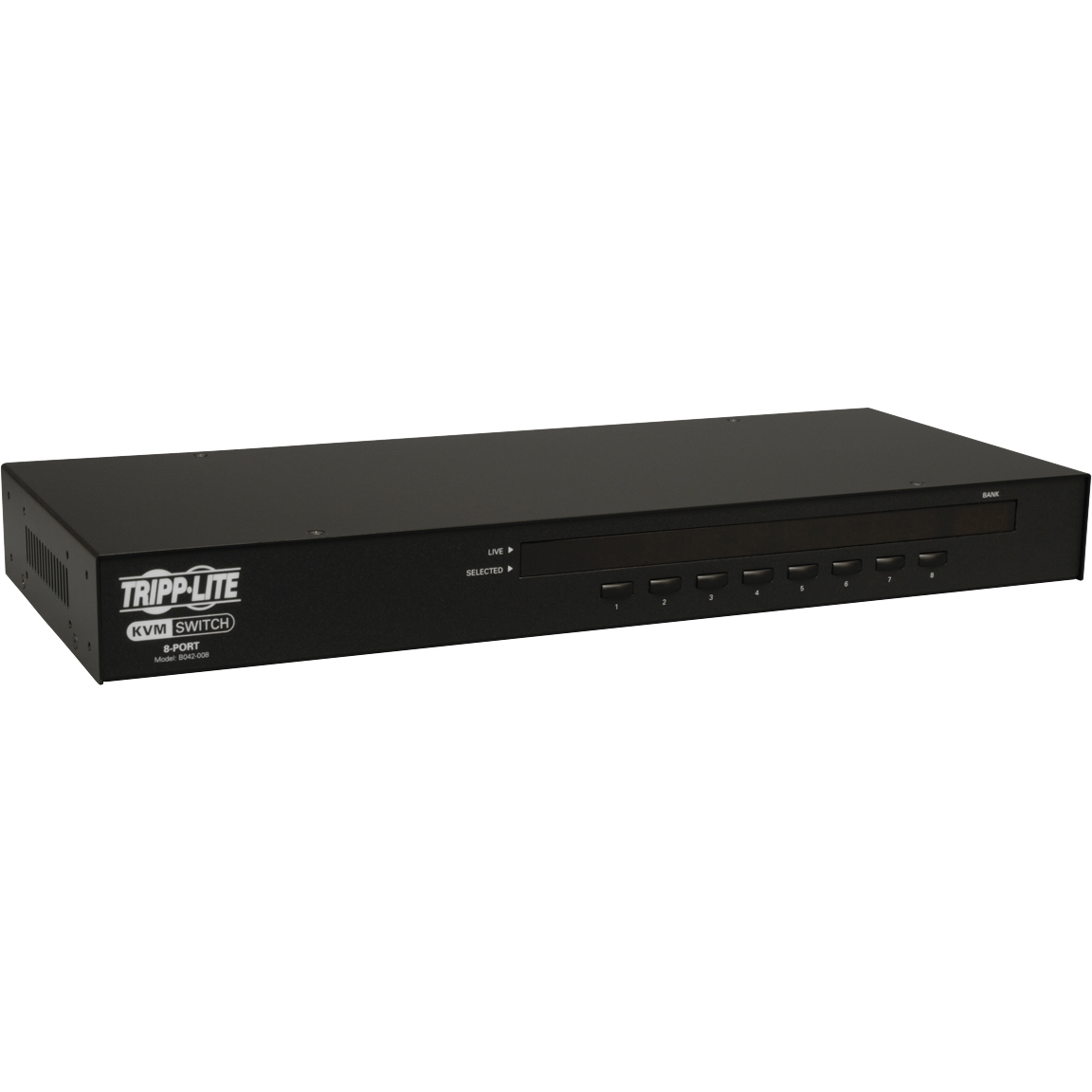

Tripp-Lite B042-008 Network Switch

Tripp-Lite  -  Tripp Lite Rackmount KVM Switch 8-Port / USB / PS2 w/ On Screen Display 1U, 8 x 1, 8 x HD-15, 1U, Rack-mountable

  • NetController 8-Port, 1U rackmount KVM switch
  • Control 8 computers via a single VGA monitor and USB or PS/2 keyboard/mouse
  • Control up to 248 computers by daisychaining up to 15 additional B042-Series KVM switches
  • P780-Series USB/PS2 combo KVM cables kits allow you to connect either USB or PS/2 computers, without the need to purchase separate cables or adapters
  • Compatible with all major operating systems
Read More

Price Match Guarantee

Found a better price? We'll match it within 30 days of your purchase.

Add to Quote
$453.24

Tripp-Lite Parts Accessory Model Overview

Products and parts from Tripp-Lite.
Tripp-Lite B042-008 Network Switch Overview

Tripp Lite's NetController 8-Port, 1U rackmount KVM Switch is an affordable, highly-flexible enterprise class KVM Switch, which allows the user to connect either USB or PS/2 keyboards and mice. In addition, P780-Series USB/PS2 combo KVM cable kits allow you to connect either USB or PS/2 computers, without the need to purchase separate cables or adapters. Control up to 8 directly connected computers, or expand the number of connected computers to up to 248 by daisychaining up to 15 additional B042-Series KVM switches. Switch between connected computers via the On-Screen Display (OSD), pushbuttons, or keyboard hotkey commands. Other features include: password protection, auto-scanning, auto-logout, firmware upgrade and video support up to 2048 x 1536 (QXGA). Mounts easily in a standard 19" rack/cabinet and includes all necessary mounting hardware. Compatible with all major operating systems. Constructed of heavy-duty steel housing. 3 year limited warranty.

Technical Information
Number of Computers Supported:
8
Daisy Chain Supported:
Yes
Video
Graphic Mode:
QXGA
Maximum Video Resolution:
2048 x 1536
Interfaces/Ports
PS/2 Port:
Yes
Number of PS/2 Ports:
1
Power Description
Input Voltage:
9 V DC
Physical Characteristics
Form Factor:
Rack-mountable
Rack Height:
1U
Height:
1.8"
Width:
16.1"
Depth:
6.5"
Miscellaneous
Package Contents:
  • KVM Switch
  • External Power Supply
  • Rackmount Hardware
  • 4 ft. HD15 to DB9 Firmware Upgrade Cable
  • 8-in Daisy-Chain Cable - HD15M/HD15F
  • Daisy Chain Terminator - HD15M
  • CD with owner's manual and quick start guide
  • Quick start guide
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0013227041114, 0037332141392, 0728072187077, 7426700031053
UPC: 013227041114, 037332141392, 728072187077
EAN: 0013227041114, 0037332141392, 0728072187077, 7426700031053
UNSPSC: 43211601
