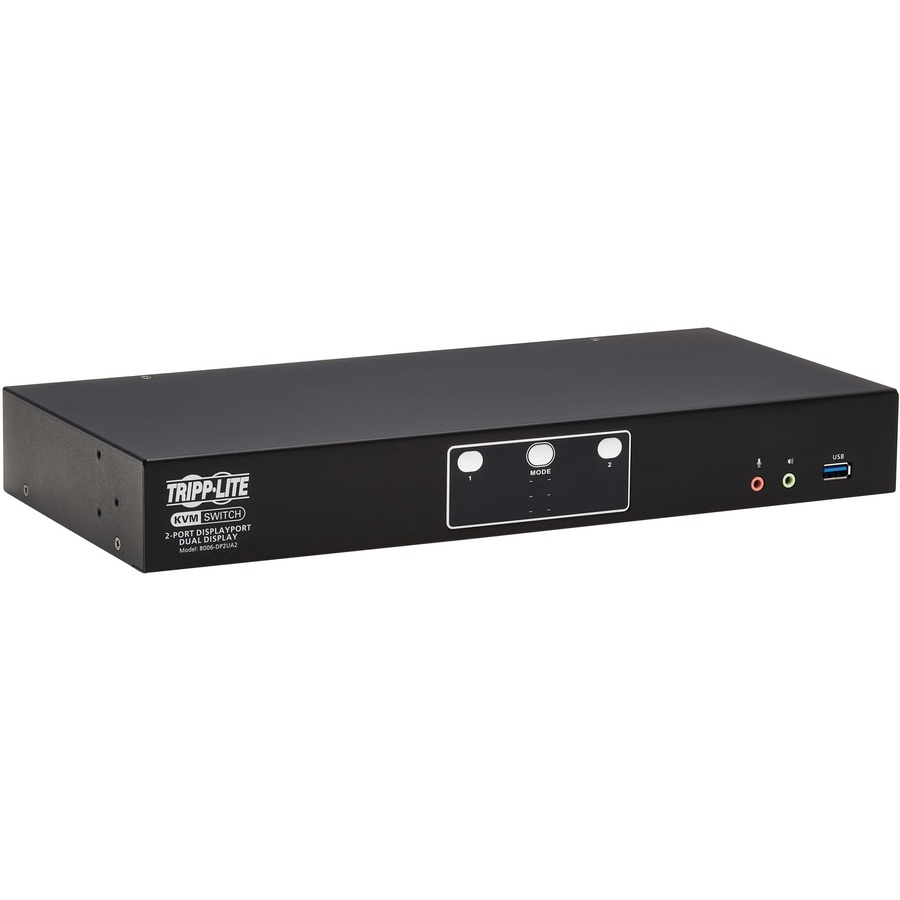

Tripp-Lite B006-DP2UA2 Network Switch

Tripp-Lite - Tripp Lite DisplayPort KVM Switch Dual-Display 2-Port 4K60Hz USB 3.2 Gen 1, 2 Computer(s), 1 Local User(s), 4096 x 2160, 50 Hz, 60 Hz, 1 x Network (RJ-45), 6 x USB, Desktop, Rack-mountable, 6 x DisplayPort
  • Supports both 4K UHD and 4K DCI resolutions @ 60 Hz for superior video quality
  • Dual USB 3.2 Gen 1 hub ports let you share USB peripherals with all computers
  • Push buttons, hotkeys, mouse or RS-232 allow easy toggling between computers
  • Dual-monitor support enables convenient multitasking and increased productivity
  • Works with all major operating systems, including Windows, macOS and Linux
  • 3-year limited warranty
Read More
$451.68
In Stock
Add to Quote
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite B006-DP2UA2 Network Switch Overview

Features l Connects Two Computers to Two 4K Monitors and a Single Keyboard/Mouse

This dual-monitor KVM switch lets you access, control, boot and reboot two computers or other devices with DisplayPort connectors and switch back and forth between them. It's ideal for work-from-home applications in which you'd like to share two monitors between your home and work computers. Both computers share two DisplayPort 4K monitors and one USB keyboard/mouse, which saves space on your desk or workspace.

Switching Between Computers Is Fast and Easy
Use the front-panel push buttons, hotkey commands, mouse movement or RS-232 commands for quick and easy toggling between computers. You can also use the Auto Scan feature to scan all connected computers in five-second intervals automatically. LEDs indicate which computer is currently selected.

Transmits Crystal-Clear 4K Video with Digital Audio
The B006-DP2UA2 supports video resolutions up to 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz) on two DisplayPort monitors, as well as 2.1-channel surround sound for music, movies and games. Independent audio switching lets you listen to music or a podcast on one computer, while simultaneously working on a second computer. Front-panel audio jacks have priority over the rear-panel jacks. A DCC (Daisy Chain Control) port lets you connect two B006-DP2UA2 KVM switches for a quad-display installation.

USB Hub Lets You Share Peripherals between Computers
Two USB 3.2 Gen 1 hub ports allow you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between all connected computers. This lets you avoid the expense and clutter of separate USB hubs. The USB-A ports support data transfer speeds up to 5 Gbps and are backward compatible with previous USB generations.

Designed for Convenient Mounting with Included Brackets
The heavy-duty metal housing can be placed on a desktop or other level surface that can safely support the weight of the KVM switch and attached cables. It can also be mounted at the front or rear of a standard 19-inch rack with user-supplied hardware. The included DC power supply connects to any standard AC power source.

System Requirements

  • DisplayPort monitors
  • USB mouse/keyboard
  • Computers with DisplayPort and USB-A ports (audio ports optional)
  • Windows 7 or 10, macOS 10 or higher, Linux with kernel .15 or higher
Technical Information
Number of Computers Supported:
2
Number of Local Users Supported:
1
Video
Maximum Video Resolution:
4096 x 2160
Interfaces/Ports
Network (RJ-45):
Yes
USB:
Yes
DisplayPort:
Yes
Number of Network (RJ-45) Ports:
1
Number of USB Ports:
6
Number of DisplayPorts:
6
Power Description
Input Voltage Range:
100-240V
Frequency:
  • 50 Hz
  • 60 Hz
Physical Characteristics
Form Factor:
  • Desktop
  • Rack-mountable
Height:
13.2"
Width:
1.7"
Depth:
6.1"
Weight (Approximate):
3.52 lb
Miscellaneous
Package Contents:
  • B006-DP2UA2 DisplayPort Dual-Display KVM Switch
  • External power supply (Input: 100-240V, 50/60 Hz, 1.2A; Output: 12V 3.33A)
  • 4 x Rubber foot pads
  • Quick Start Guide
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • China RoHS
  • WEEE
Country of Origin:
Taiwan
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0037332265937
UPC: 037332265937
EAN: 0037332265937
UNSPSC: 43211601
