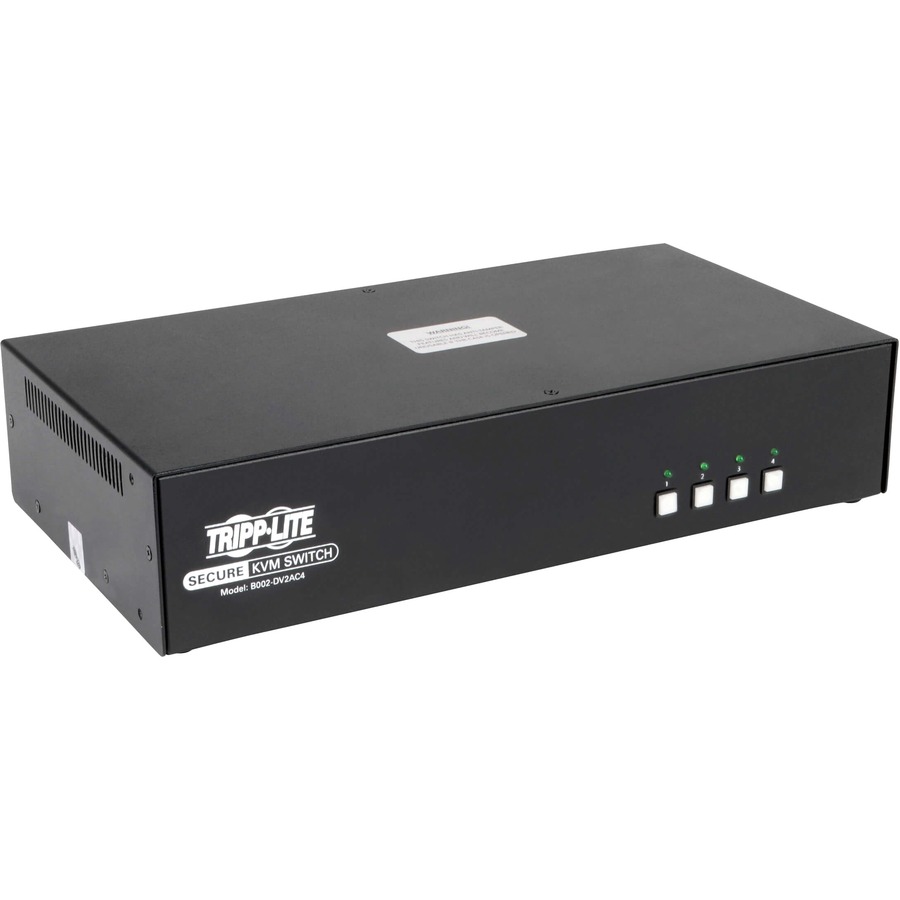

Tripp-Lite B002-DV2AC4 Network Switch

Tripp-Lite - Tripp Lite Secure KVM Switch 4-Port Dual Monitor DVI + Audio NIAP PP3.0 CAC, 4 Computer(s), 1 Local User(s), 2560 x 1600, 11 x USB, 10 x DVI, TAA Compliant
  • Safely and securely switches between 4 isolated computers with different security levels
  • Certified to NIAP/Common Criteria Protection Profile for Peripheral Sharing Switches V3.0
  • Supports HD resolutions up to 2560 x 1600 (@ 60 Hz) for crystal-clear video
  • Dual-monitor support enables multitasking and generates increased productivity
  • Common Access Card (CAC) port supports biometric and other smart card readers
  • 3-year limited warranty
Read More
$925.06
Add to Quote
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite B002-DV2AC4 Network Switch Overview

4-Port KVM Switch, DVI to DVI, Is Ideal for Applications That Demand Secure Networks

This 4-port KVM switch is recommended for any government, military, financial or healthcare environment where tight security of sensitive data is of utmost importance in a world of constantly changing cyberthreats. Each KVM port is an electronically isolated channel, making it impossible for data to be transferred between connected computers through the KVM. The dual-monitor DVI KVM switch supports crystal-clear HD video resolutions up to 2560 x 1600 (including 1080p) at 60 Hz.

NIAP PP3.0 Certified to Meet Today's Top Information Assurance Standards

This KVM switch is certified by NIAP (National Information Assurance Partnership), which is operated by the National Security Agency (NSA), to the latest Common Criteria Protection Profile for Peripheral Sharing Switches Version 3.0. Discrete processing paths to each connected system prevent data leakage, transfer and crosstalk between adjacent ports. Peripheral isolation enables data to flow from device to host only.

Top-of-the-Line Security Features Keep Your Data Safe

Special protection prevents re-programming or re-reading firmware, so the switch's KVM logic remains unaltered. The keyboard buffer clears automatically after data transmission, ensuring no information is left stored. Plus, you can only access connected computers via buttons on the switch's panel. Other port-switching methods, such as On-Screen Display (OSD) and Hotkey Commands, have been excluded to further ensure data integrity.

CAC Port Supports Biometric and Other Smart Card Readers

The Common Access Card port supports smart cards, scanners and biometric readers, including fingerprint readers, to bolster security. You may assign and register specific peripherals to the CAC port, providing a secure connection for user authentication.

Anti-Tampering Protection Prevents Physical Breeches

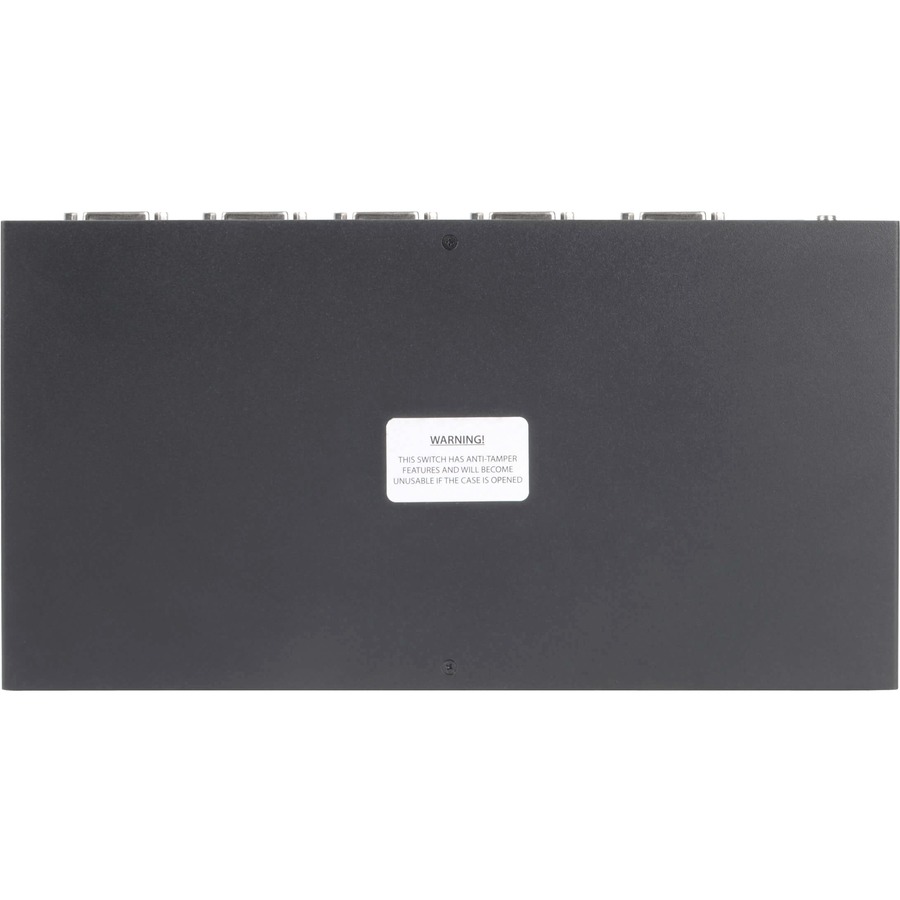

If the housing is opened, internal anti-tamper switches will disable the unit, causing it to become inoperable and the front-panel LEDs to flash repeatedly. Seals on the enclosure will provide visual evidence of tampering.

Maintains Constant Keyboard and Mouse Emulation for Smooth No-Delay Switching

Full USB device filtering ensures support for keyboard and mouse only. This KVM switch also supports secure video emulation and EDID learning, which allow for ultra-fast monitor switching while preventing unwanted data from transmitting through the DDC lines. Both keyboard/mouse and video emulation controllers restrict discovery of newly connected peripherals or monitors during switching operations, shielding your computers from potential vulnerabilities.

TAA-Compliant for GSA Schedule Purchases

The B002-DV2AC4 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Technical Information
Number of Computers Supported:
4
Number of Local Users Supported:
1
Video
Maximum Video Resolution:
2560 x 1600
Interfaces/Ports
USB:
Yes
DVI:
Yes
Number of USB Ports:
11
Number of DVI Ports:
10
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Input Voltage Range:
120V AC to 230V AC
Physical Characteristics
Height:
2.7"
Width:
12.6"
Depth:
6.7"
Weight (Approximate):
3 lb
Miscellaneous
Package Contents:
  • B002-DV2AC4 4-Port NIAP PP3.0-Certified DVI-I KVM Switch
  • External Power Supply w/NEMA 1-15P Plug & 5 ft. Cord (Input: 100-240V, 50/60 Hz, 0.8A; Output: 12V 2A)
  • Owner's Manual
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
United States
TAA Compliant:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0037332237491, 0818243138998
UPC: 037332237491, 818243138998
EAN: 0037332237491, 0818243138998
UNSPSC: 43211601
